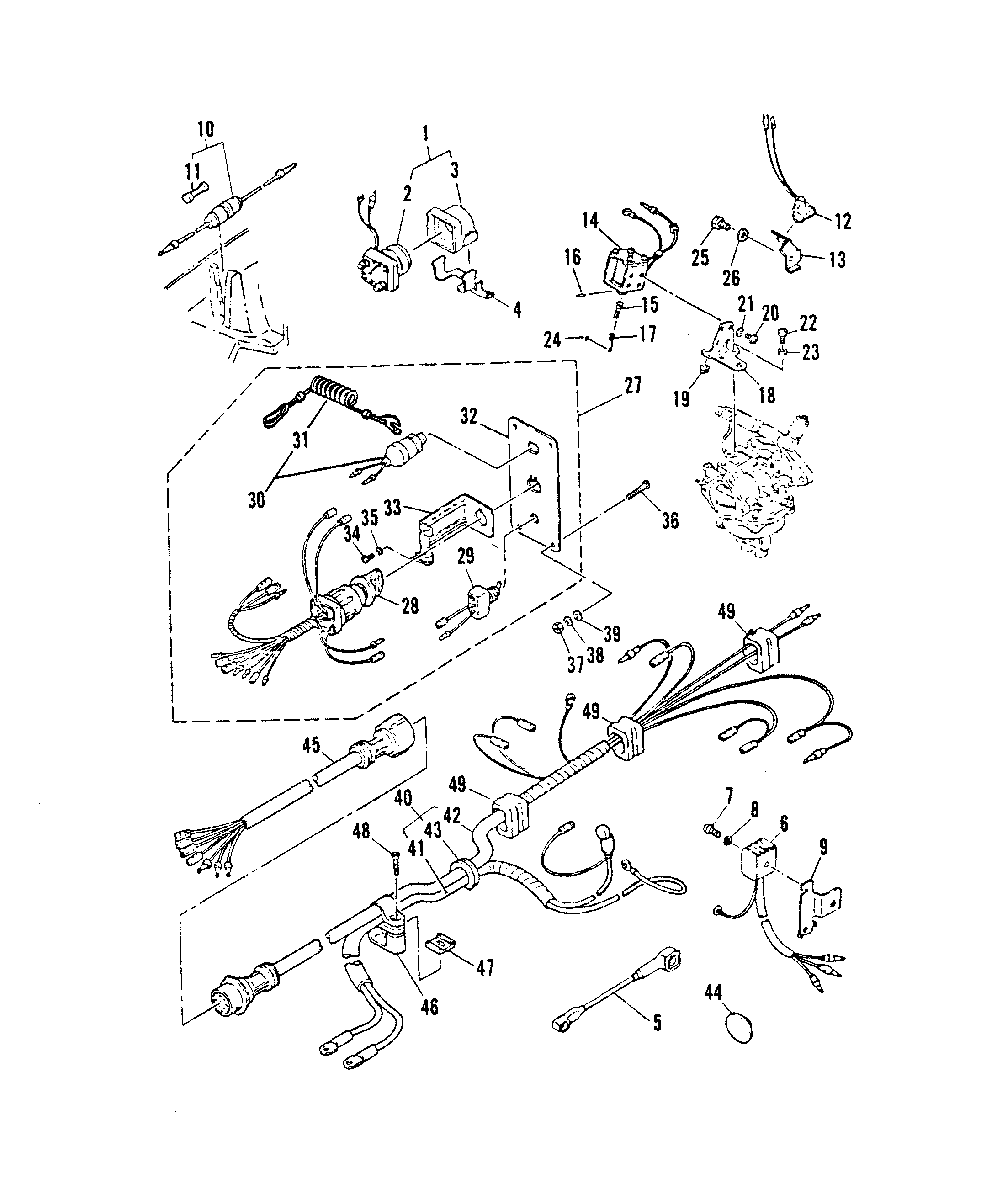

ELECTRIC START COMPONENTS для Mariner - 20C (THRU PROP. EXHAUST) 6A9-000101 THRU 010111

  • №
    Артикул
    Название
  • 1
    89-8M0098898 STARTER SOLENOID ASS'Y
    STARTER SOLENOID ASS'Y
  • 2
    89-8M0098898 SOLENOID
    SOLENOID
  • 3
    84934M MOUNTING BRACKET
    MOUNTING BRACKET
  • 4
    92601M PLATE, SOLENOID MOUNTING
    PLATE, SOLENOID MOUNTING
  • 5
    84-96358M WIRE, SOLENOID
    SERIAL 00002351-09999999
    WIRE, SOLENOID
    SERIAL 00002351-09999999
  • 5
    84-92602M WIRE, SOLENOID
    SERIAL 00000000-00002350
    WIRE, SOLENOID
    SERIAL 00000000-00002350
  • 6
    8M0091976 RECTIFIER
    RECTIFIER
  • 7
    10-83108M SCREW
    SCREW
  • 8
    12-82211M WASHER
    WASHER
  • 9
    92603M PLATE, RECTIFIER MOUNTING
    SERIAL 00000000-00008215
    PLATE, RECTIFIER MOUNTING
    SERIAL 00000000-00008215
  • 10
    32-84973M FUSE ASS'Y
    FUSE ASS'Y
  • 11
    88-81522M FUSE
    FUSE
  • 12
    87-97684M NEUTRAL START SWITCH
    NEUTRAL START SWITCH
  • 13
    81110M PLATE, SWITCH AND LOCKOUT MOUNTING
    PLATE, SWITCH AND LOCKOUT MOUNTING
  • 14
    84940M CHOKE SOLENOID
    CHOKE SOLENOID
  • 15
    84411M HOOK,WIRE
    HOOK,WIRE
  • 16
    17-82145M PIN, ROLL
    PIN, ROLL
  • 17
    24-81667M WIRE,PULL
    WIRE,PULL
  • 18
    84941M PLATE, SOLENOID MOUNTING
    PLATE, SOLENOID MOUNTING
  • 19
    25-82060M GROMMEET
    GROMMEET
  • 20
    10-82512M SCREW
    SCREW
  • 21
    12-82847M WASHER
    WASHER
  • 22
    10-14232M SCREW
    SCREW
  • 23
    12-82211M WASHER
    WASHER
  • 24
    25-82258M O-RING
    O-RING
  • 25
    10-91772M BOLT
    BOLT
  • 26
    13-82212M WASHER
    SERIAL 00008216-09999999
    WASHER
    SERIAL 00008216-09999999
  • 26
    12-82214M WASHER, LOCK
    SERIAL 00000000-00008215
    WASHER, LOCK
    SERIAL 00000000-00008215
  • 27
    18975A1 SWITCH PANEL ASS'Y
    SERIAL 00002351-09999999
    SWITCH PANEL ASS'Y
    SERIAL 00002351-09999999
  • 27
    97769M SWITCH PANEL ASS'Y
    SERIAL 00000000-00002350
    SWITCH PANEL ASS'Y
    SERIAL 00000000-00002350
  • 28
    87-8M0078321 KEY SWITCH
    SERIAL 00002351-09999999
    KEY SWITCH
    SERIAL 00002351-09999999
  • 28
    87-92605M KEY SWITCH
    SERIAL 00000000-00002350
    KEY SWITCH
    SERIAL 00000000-00002350
  • 29
    87-84944M CHOKE SWITCH
    CHOKE SWITCH
  • 30
    87-97682M KILL SWITCH ASS'Y
    KILL SWITCH ASS'Y
  • 31
    97756M STOPPER
    SERIAL 00002351-09999999
    STOPPER
    SERIAL 00002351-09999999
  • 31
    97756M STOPPER
    SERIAL 00000000-00022350
    STOPPER
    SERIAL 00000000-00022350
  • 32
    42435M PANEL
    SERIAL 00008216-09999999
    PANEL
    SERIAL 00008216-09999999
  • 32
    92661M PANEL
    SERIAL 00000000-00008215
    PANEL
    SERIAL 00000000-00008215
  • 33
    81537M BRACKET
    BRACKET
  • 34
    10-82500M SCEW
    SCEW
  • 35
    13-82206M WASHER, LOCK
    WASHER, LOCK
  • 36
    10-80164M SCREW
    SERIAL 00008216-09999999
    SCREW
    SERIAL 00008216-09999999
  • 36
    10-84946M SCREW
    SERIAL 00000000-00008215
    SCREW
    SERIAL 00000000-00008215
  • 37
    11-82377M NUT
    SERIAL 00008216-09999999
    NUT
    SERIAL 00008216-09999999
  • 37
    11-82388M NUT
    SERIAL 00000000-00008215
    NUT
    SERIAL 00000000-00008215
  • 38
    13-82186M WASHER, LOCK
    SERIAL 00000000-00008215
    WASHER, LOCK
    SERIAL 00000000-00008215
  • 39
    12-82847M WASHER
    SERIAL 00008216-09999999
    WASHER
    SERIAL 00008216-09999999
  • 39
    12-82211M WASHER
    SERIAL 00000000-00008215
    WASHER
    SERIAL 00000000-00008215
  • 40
    84-95646M ENGINE WIRING HARNESS
    SERIAL 00002351-09999999
    ENGINE WIRING HARNESS
    SERIAL 00002351-09999999
  • 40
    84-96354M ENGINE WIRING HARNESS
    SERIAL 00000000-00002350
    ENGINE WIRING HARNESS
    SERIAL 00000000-00002350
  • 41
    84-97771M WIRE ASS'Y, BATTERY
    SERIAL 00008216-09999999
    WIRE ASS'Y, BATTERY
    SERIAL 00008216-09999999
  • 41
    84-97771M WIRE ASS"Y BATTERY
    SERIAL 00005811-00008215
    WIRE ASS"Y BATTERY
    SERIAL 00005811-00008215
  • 41
    84-96355M WIRE ASS'Y, BATTERY
    SERIAL 00000000-00002350
    WIRE ASS'Y, BATTERY
    SERIAL 00000000-00002350
  • 42
    84-95647M WIRE ASS'Y, IGNITION
    SERIAL 00002351-09999999
    WIRE ASS'Y, IGNITION
    SERIAL 00002351-09999999
  • 42
    84-95671M WIRE ASS'Y, IGNITION
    SERIAL 00000000-00002350
    WIRE ASS'Y, IGNITION
    SERIAL 00000000-00002350
  • 43
    25-84950M GROMMET
    GROMMET
  • 44
    82066M GROMMET
    GROMMET
  • 45
    84-84711M EXTENSION, WIRE HARNESS (5 M)
    EXTENSION, WIRE HARNESS (5 M)
  • 46
    54-97772M CLAMP
    SERIAL 00002351-09999999
    CLAMP
    SERIAL 00002351-09999999
  • 46
    54-97772M CLAMP
    SERIAL 00000000-00002350
    CLAMP
    SERIAL 00000000-00002350
  • 47
    84708M PLATE
    PLATE
  • 48
    10-84709M SCREW
    SCREW
  • 49
    25-84876M GROMMET
    GROMMET
