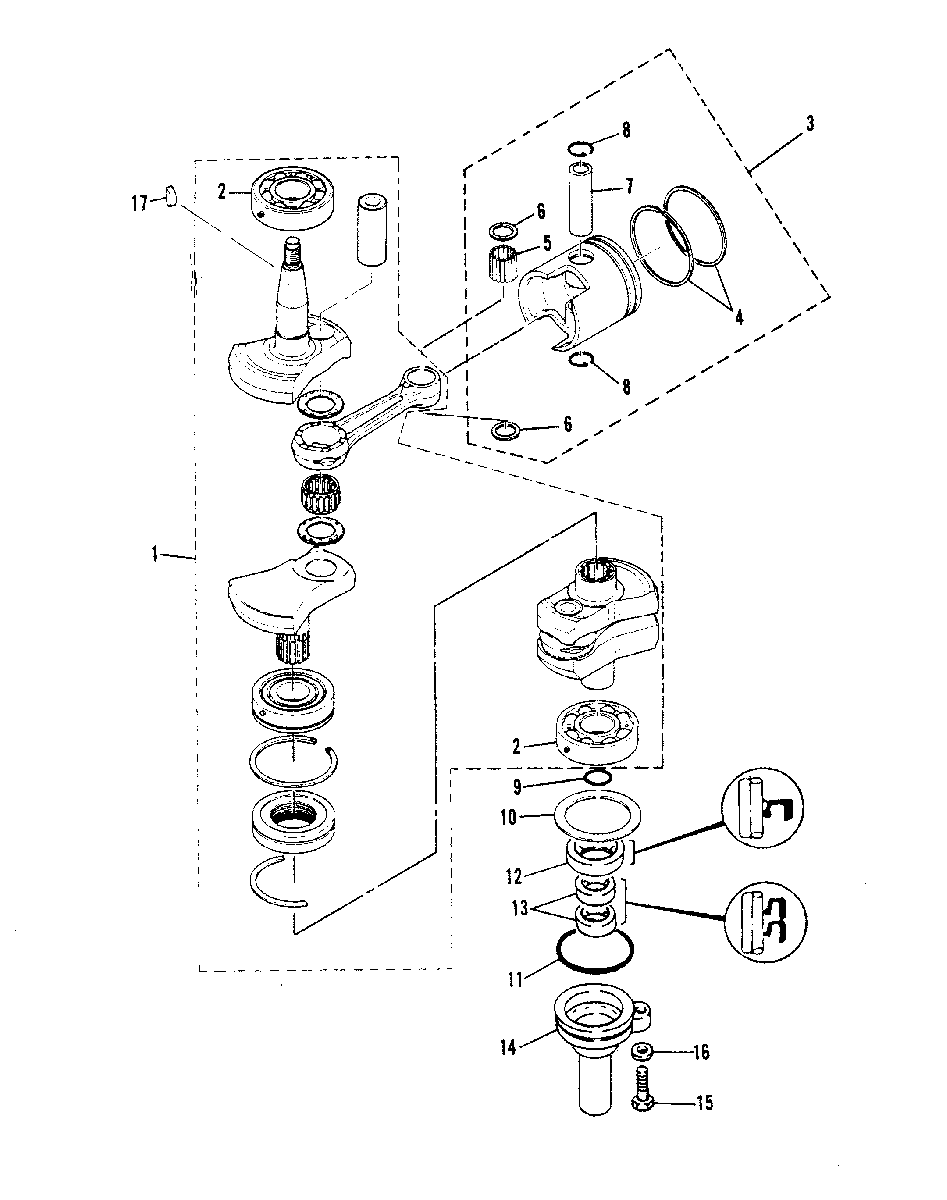

CRANKSHAFT AND PISTON для Mariner - 20C (THRU PROP. EXHAUST) 6A9-000101 THRU 010111

  • №
    Артикул
    Название
  • 1
    463-9245M CRANKSHAFT AS'Y
    SERIAL 00008216-09999999
    CRANKSHAFT AS'Y
    SERIAL 00008216-09999999
  • 1
    463-9245M CRANKSHAFT ASS'Y
    SERIAL 00000000-00008215
    CRANKSHAFT ASS'Y
    SERIAL 00000000-00008215
  • 2
    30-82307T BEARING, CRANKSHAFT
    BEARING, CRANKSHAFT
  • 3
    761-8375M PISTON ASS'Y (STD)
    PISTON ASS'Y (STD)
  • 3
    761-8376M PISTON ASS'Y (1ST O.S. 67.25MM)
    PISTON ASS'Y (1ST O.S. 67.25MM)
  • 3
    761-8377M PISTON ASS'Y (2ND O.S.67.50 MM)
    PISTON ASS'Y (2ND O.S.67.50 MM)
  • 4
    39-81095T PISTON RING SET (STD)
    PISTON RING SET (STD)
  • 4
    39-81096T PISTON RING SET (1ST O.S. 67.25 MM)
    PISTON RING SET (1ST O.S. 67.25 MM)
  • 4
    39-81097T PISTON RING SET (2ND O.S. 67.50 MM)
    PISTON RING SET (2ND O.S. 67.50 MM)
  • 5
    29-84452M BEARING, NEEDLE
    BEARING, NEEDLE
  • 6
    12-81829M WASHER, CONNECTING ROD BEARING
    WASHER, CONNECTING ROD BEARING
  • 7
    41-80565M PIN, PISTON
    PIN, PISTON
  • 8
    53-82345M SNAP RING
    SNAP RING
  • 9
    25-82268M O_RING, CRANKSHAFT TO DRIVESHAFT
    O_RING, CRANKSHAFT TO DRIVESHAFT
  • 10
    23-81842M SPACER, INNER BEARING
    SPACER, INNER BEARING
  • 11
    25-84089M O-RING, OIL SEAL HOUSING
    O-RING, OIL SEAL HOUSING
  • 12
    26-84752M OIL SEAL, LARGE (M-008216 ML-305244 E-250541 EL-550541) AND
    OIL SEAL, LARGE (M-008216 ML-305244 E-250541 EL-550541) AND
  • 12
    26-84752M OIL SEAL, LARGE (M-008215 ML-303731 E-250361 EL-550386) AND
    OIL SEAL, LARGE (M-008215 ML-303731 E-250361 EL-550386) AND
  • 13
    26-83347M OIL SEAL, SMALL
    OIL SEAL, SMALL
  • 14
    8M0059029 HOUSING, OIL SEAL (LOWER)
    HOUSING, OIL SEAL (LOWER)
  • 15
    10-94526M BOLT
    BOLT
  • 16
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 17
    28-8M0057164 KEY, CRANKSHAFT TO FLYWHEEL
    KEY, CRANKSHAFT TO FLYWHEEL
