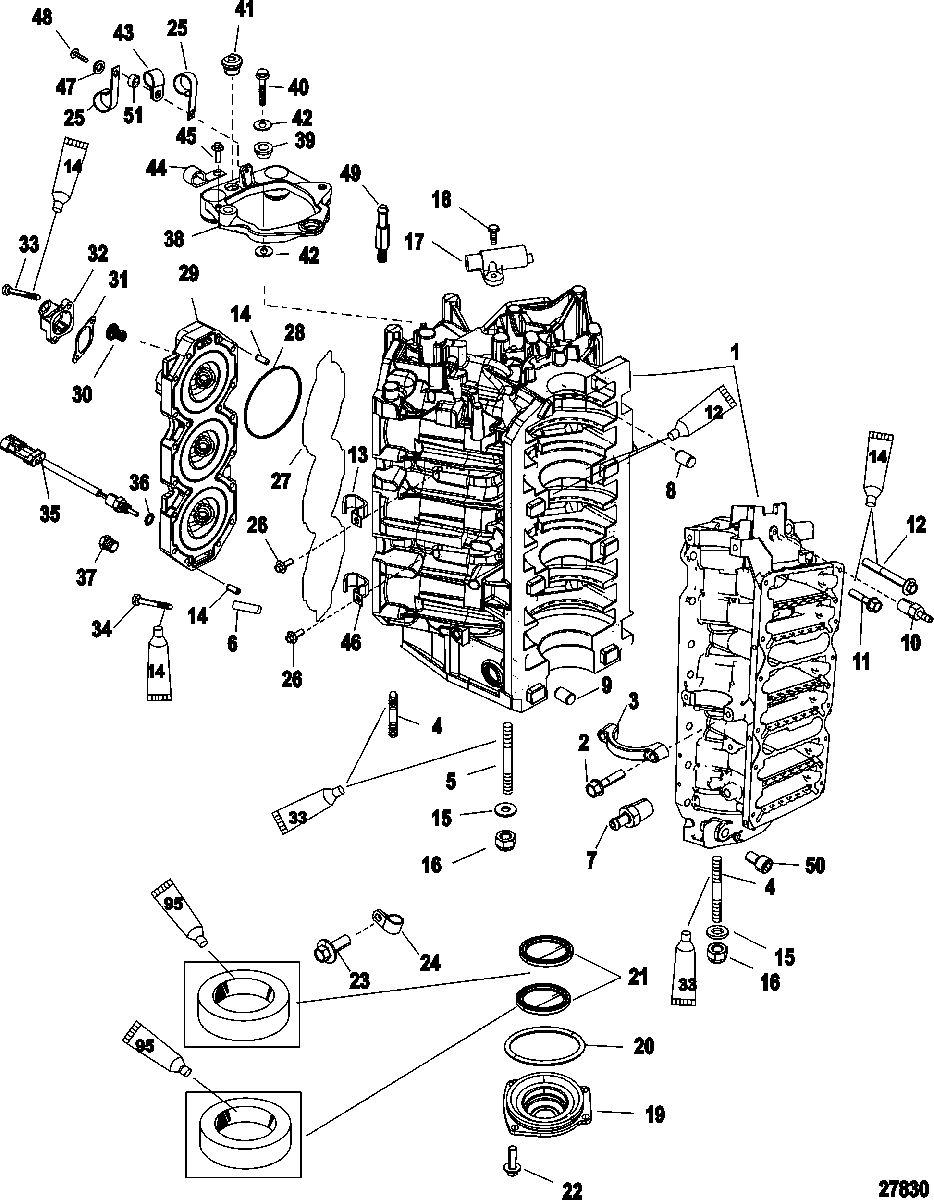

Cylinder Block and End Cap для Mariner - 200 (DFI) 3.0L 1B504989 THRU 1B912785
-
№АртикулНазвание
-
1885-899162A05 CYLINDER BLOCK ASSEMBLY
200/200 Pro XSCYLINDER BLOCK ASSEMBLY
200/200 Pro XS -
1885-899162A06 CYLINDER BLOCK ASSEMBLY
225/250CYLINDER BLOCK ASSEMBLY
225/250 -
210-81893440 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
38M0111325 BRACKETBRACKET
-
416-903509 STUD, (M10 x 1.5 x 64)STUD, (M10 x 1.5 x 64)
-
516-8154431 STUD, (M10 x 1.5 x 155)STUD, (M10 x 1.5 x 155)
-
68248577 DEFLECTORDEFLECTOR
-
721-8781051 CHECK VALVECHECK VALVE
-
817-8M0036405 PINPIN
-
917-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1022-8245021 CONNECTORCONNECTOR
-
1110-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1210-82446180 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
1354-65292 J CLIPJ CLIP
-
1417-63779 PIN, Dowel (.250 x .625)PIN, Dowel (.250 x .625)
-
1512-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
1611-4013610 NUT, (M10) Stainless SteelNUT, (M10) Stainless Steel
-
178M0082988 SENSORSENSOR
-
1810-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
191171-9787A4 END CAP ASSEMBLYEND CAP ASSEMBLY
-
2025-62700 O-RING, (3.237 x .103)O-RING, (3.237 x .103)
-
2126-8308981 SEALSEAL
-
2210-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
2310-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
2454-858902 CLAMPCLAMP
-
2554-65292 J CLIPJ CLIP
-
2610-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
27818574 SEALSEAL
-
28884391 SEALSEAL
-
29900-858485T07 CYLINDER HEAD, Starboard
200/225/200 Pro XSCYLINDER HEAD, Starboard
200/225/200 Pro XS -
29900-841021A06 CYLINDER HEAD ASSEMBLY, Starboard
250CYLINDER HEAD ASSEMBLY, Starboard
250 -
29900-858483T07 CYLINDER HEAD, Port
200/225/200 Pro XSCYLINDER HEAD, Port
200/225/200 Pro XS -
29900-841020A06 CYLINDER HEAD ASSEMBLY, Port
250CYLINDER HEAD ASSEMBLY, Port
250 -
308M0057307 THERMOSTAT, 54 Degree C/130 Degree FTHERMOSTAT, 54 Degree C/130 Degree F
-
3127-8503181 GASKETGASKET
-
32887601002 COVER, PortCOVER, Port
-
32887602002 COVER, StarboardCOVER, Starboard
-
3310-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3410-8M0045380 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
35885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
3625-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
3722-328022 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
38857186T02 PLATE ASSEMBLYPLATE ASSEMBLY
-
3923-855729 MOUNTMOUNT
-
4010-82130145 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
4125-19565002 GROMMETGROMMET
-
4212-855725 WASHERWASHER
-
4354-858424 CLAMPCLAMP
-
4454-858951 J CLIPJ CLIP
-
4510-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
4654-8M0005663 J CLIP
200/225/200 Pro XSJ CLIP
200/225/200 Pro XS -
4712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4810-82130030 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
4917-8405101 PIN
200/225/200 Pro XSPIN
200/225/200 Pro XS -
498215832 PIN, Special (1.5 Inches)
250PIN, Special (1.5 Inches)
250 -
5010-82494810 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
5123-421581 BUSHINGBUSHING
-
-27-832934A00 GASKET SET, Powerhead
200/225/200 Pro XSGASKET SET, Powerhead
200/225/200 Pro XS -
-27-841220A03 GASKET SET, Powerhead
250GASKET SET, Powerhead
250 -
-854198A07 POWERHEAD ASSEMBLY
200/200 Pro XSPOWERHEAD ASSEMBLY
200/200 Pro XS -
-877869A07 POWERHEAD ASSEMBLY
225POWERHEAD ASSEMBLY
225 -
-61-843034A07 POWERHEAD ASSEMBLY
250POWERHEAD ASSEMBLY
250
