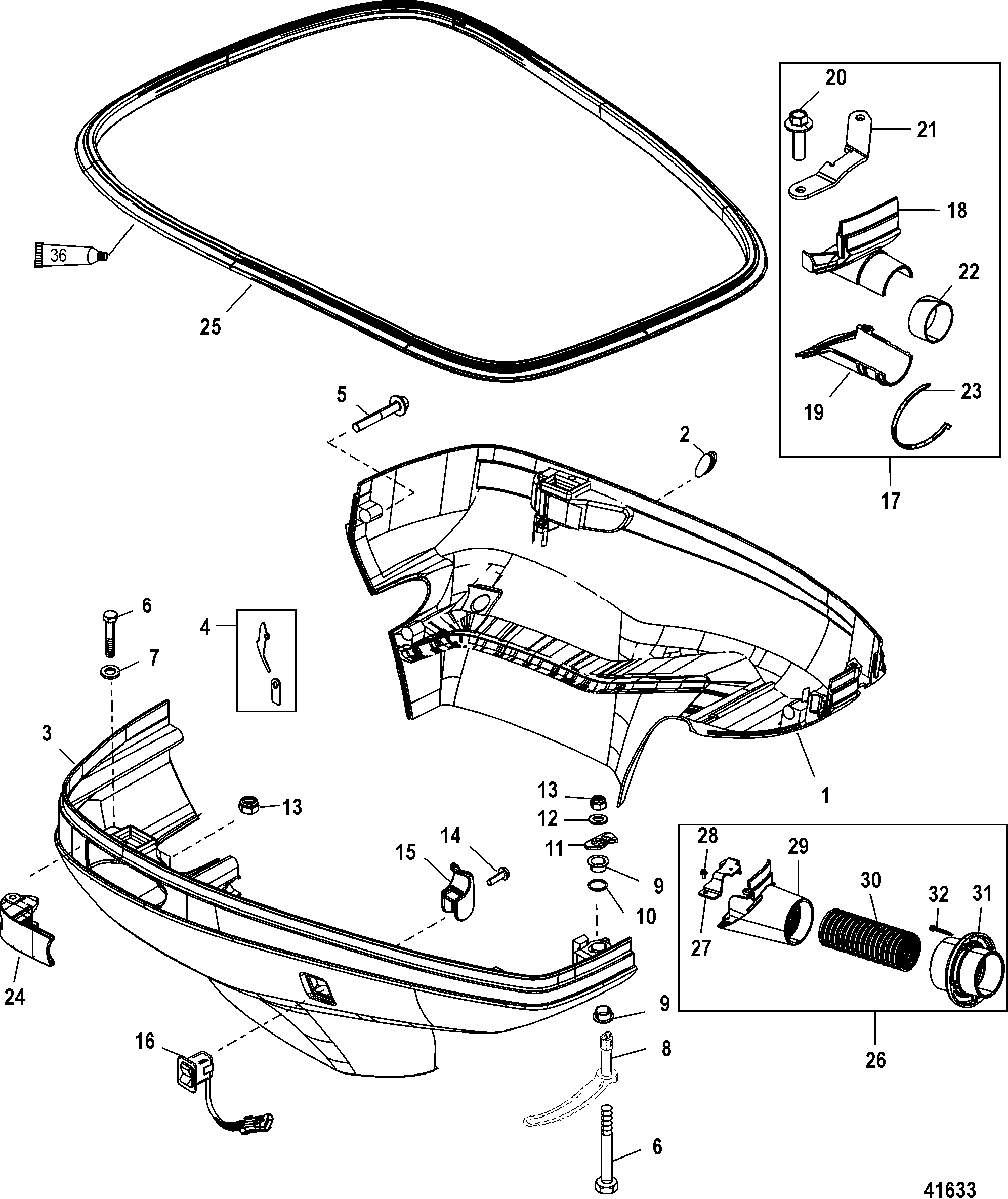

Bottom Cowl для Mariner - 200 (DFI) 3.0L 1B504989 THRU 1B912785
-
№АртикулНазвание
-
1100-8M0122314 BOTTOM COWL, PortBOTTOM COWL, Port
-
2854367001 PLUGPLUG
-
3100-8M0122313 BOTTOM COWL, StarboardBOTTOM COWL, Starboard
-
427-889246A97 GASKET KITGASKET KIT
-
510-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
610-824868 SCREW, (M6 x 75)SCREW, (M6 x 75)
-
712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
88M0053903 FRONT HANDLEFRONT HANDLE
-
923-335891 BUSHINGBUSHING
-
1025-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
118219423 PAWLPAWL
-
1212-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
1311-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1410-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
1554-822873 CLIPCLIP
-
1687-8M0042300 SWITCH, TrimSWITCH, Trim
-
178M8027677 RIGGING KIT, Upper
200/225/250RIGGING KIT, Upper
200/225/250 -
18NSS NOT SOLD SEPARATE, Clamp-UpperNOT SOLD SEPARATE, Clamp-Upper
-
19NSS NOT SOLD SEPARATE, Clamp-LowerNOT SOLD SEPARATE, Clamp-Lower
-
2010-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
21NSS NOT SOLD SEPARATE, StrapNOT SOLD SEPARATE, Strap
-
22859343 FOAMFOAM
-
2354-850181 TIE STRAP, (11.750 Inches)TIE STRAP, (11.750 Inches)
-
24852361T02 HANDLEHANDLE
-
258M0109222 SEALSEAL
-
2632-842756T01 RIGGING KIT
200 Pro XSRIGGING KIT
200 Pro XS -
27842744002 BRACKETBRACKET
-
2810-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
29843185T02 COUPLERCOUPLER
-
3032-842756005 HOSEHOSE
-
31843174002 COUPLERCOUPLER
-
3210-47994 SCREW, (#10 x 1.50)SCREW, (#10 x 1.50)
-
-37-8M0135962 DECAL, Bottom Cowl
(Strip of 5)DECAL, Bottom Cowl
(Strip of 5)
