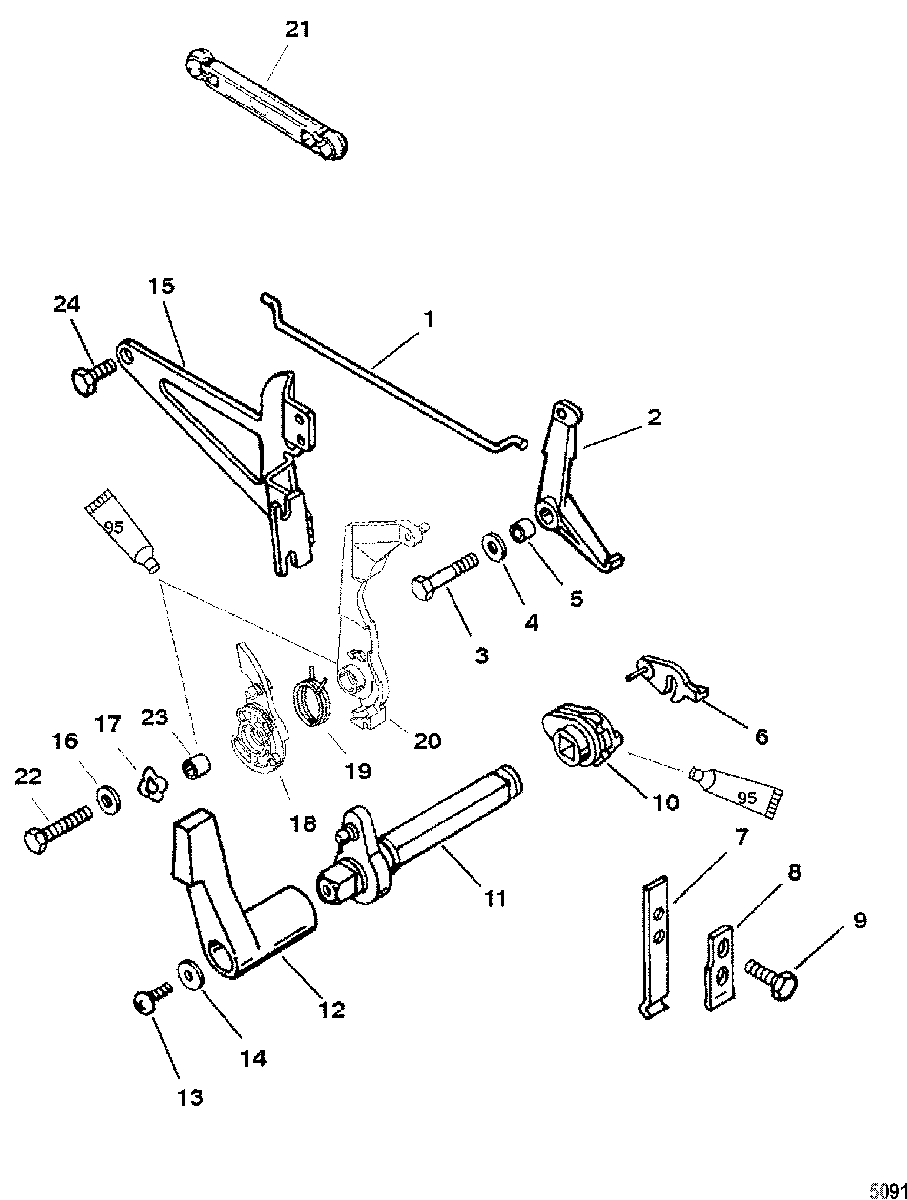

Throttle and Shift Linkage(Side Shift) для Mariner - 20 JET 0G760300 THRU 0T979999
-
№АртикулНазвание
-
142161 LINK INTERLOCKLINK INTERLOCK
-
28236103 LEVER, Interlock ControlLEVER, Interlock Control
-
310-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
412-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
523-823806 BUSHINGBUSHING
-
6823862 LEVER, BackplateLEVER, Backplate
-
724-826077 SPRING, DetentSPRING, Detent
-
8824994 SPRING, PlateSPRING, Plate
-
910-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
108238632 LEVER, Horizontal Shift Shaft, PortLEVER, Horizontal Shift Shaft, Port
-
118236011 SHIFT SHAFT, HorizontalSHIFT SHAFT, Horizontal
-
128239521 SHIFT HANDLESHIFT HANDLE
-
1310-40019108 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
1412-4002314 WASHERWASHER
-
158237582 BRACKET, Cable AnchorBRACKET, Cable Anchor
-
1612-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
1713-99611 WAVE WASHERWAVE WASHER
-
188319781 CAM, ThrottleCAM, Throttle
-
1924-42164 SPRINGSPRING
-
20888191 SPARK ARMSPARK ARM
-
218327471 TIMING LINKTIMING LINK
-
2210-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2323-823806 BUSHINGBUSHING
-
2410-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
