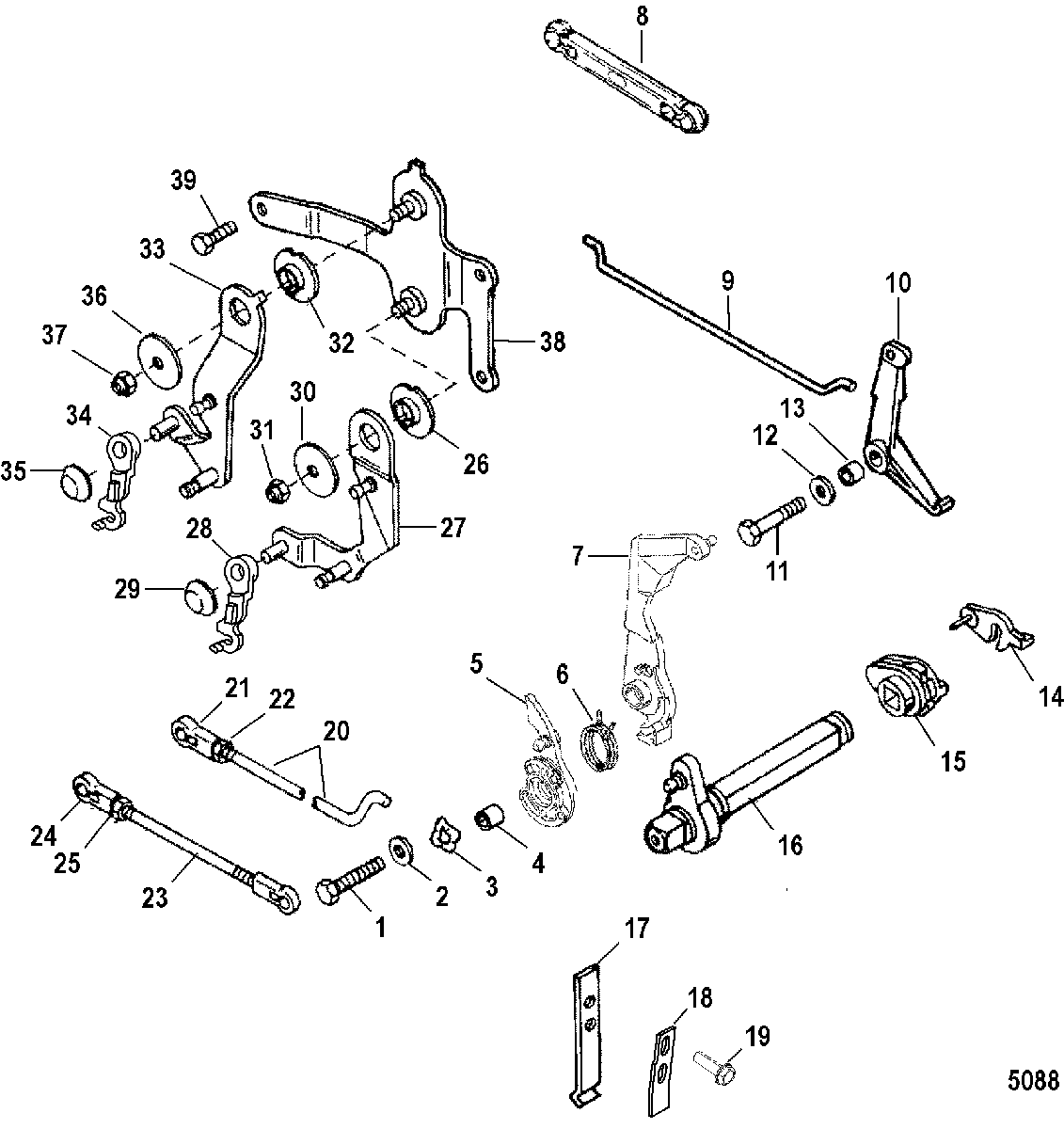

Throttle and Shift Linkage(Remote Control) для Mariner - 20 JET 0G760300 THRU 0T979999
-
№АртикулНазвание
-
110-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
212-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
313-99611 WAVE WASHERWAVE WASHER
-
423-823806 BUSHINGBUSHING
-
58319781 CAM, ThrottleCAM, Throttle
-
624-42164 SPRINGSPRING
-
7888191 SPARK ARMSPARK ARM
-
88327471 TIMING LINKTIMING LINK
-
942161 LINK INTERLOCKLINK INTERLOCK
-
108236103 LEVER, Interlock ControlLEVER, Interlock Control
-
1110-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1212-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
1323-823806 BUSHINGBUSHING
-
14823862 LEVER, BackplateLEVER, Backplate
-
158238632 LEVER, Horizontal Shift Shaft, PortLEVER, Horizontal Shift Shaft, Port
-
168236011 SHIFT SHAFT, HorizontalSHIFT SHAFT, Horizontal
-
1724-826077 SPRING, DetentSPRING, Detent
-
18824994 SPRING, PlateSPRING, Plate
-
1910-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
20881228A1 SHIFT ROD ASSEMBLYSHIFT ROD ASSEMBLY
-
21817428 SOCKETSOCKET
-
2211-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
23881227A3 LINK ASSEMBLY, ThrottleLINK ASSEMBLY, Throttle
-
24817428 SOCKETSOCKET
-
2511-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2623-825319 NYLINERNYLINER
-
278251681 LEVER, ShiftLEVER, Shift
-
28822459 RETAINERRETAINER
-
2911-825677 PUSH NUTPUSH NUT
-
3012-35280 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
3111-401386 NUT, (M6)NUT, (M6)
-
3223-825319 NYLINERNYLINER
-
33825169 LEVER, ThrottleLEVER, Throttle
-
34822459 RETAINERRETAINER
-
3511-825677 PUSH NUTPUSH NUT
-
3612-35280 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
3711-401386 NUT, (M6)NUT, (M6)
-
388251701 BRACKET, MountingBRACKET, Mounting
-
3910-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
