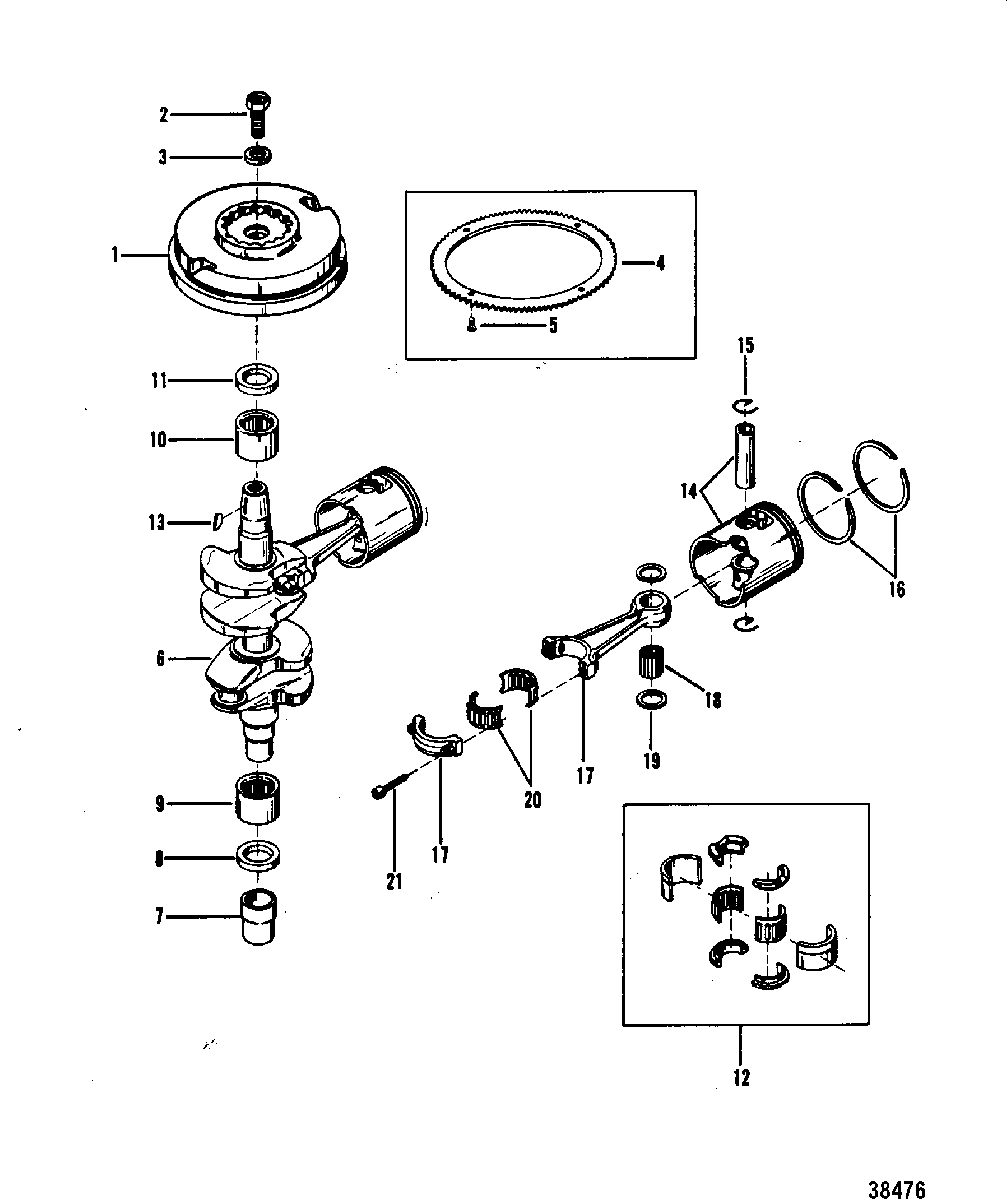

CRANKSHAFT, PISTONS AND FLYWHEEL для Mariner - 18XD 9378151 THRU 9507380
-
№АртикулНазвание
-
1258-859232T15 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
210-97359A1 SCREW ASSEMBLYSCREW ASSEMBLY
-
312-86496 WASHER, FLYWHEEL SCREWWASHER, FLYWHEEL SCREW
-
443-99301 RING GEAR, FLYWHEEL
(ELECTRIC)RING GEAR, FLYWHEEL
(ELECTRIC) -
510-88190313 SCREW, (M5 x 13), RING GEAR TO FLYWHEEL
(ELECTRIC)SCREW, (M5 x 13), RING GEAR TO FLYWHEEL
(ELECTRIC) -
6464-8978T2 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
7822445A1 SEAL, CRANKSHAFTSEAL, CRANKSHAFT
-
826-85107 SEAL, Oil, CRANKSHAFR-LOWERSEAL, Oil, CRANKSHAFR-LOWER
-
931-85113T BEARING, Roller, CRANKSHAFT - LOWERBEARING, Roller, CRANKSHAFT - LOWER
-
1031-85114T BEARING, Roller - Upper, CRANKSHAFTBEARING, Roller - Upper, CRANKSHAFT
-
1126-859741 SEAL, Oil, CRANKSHAFT - UPPERSEAL, Oil, CRANKSHAFT - UPPER
-
128M0113968 BEARING ASSEMBLY, CENTER MAINBEARING ASSEMBLY, CENTER MAIN
-
1328-20094 KEY, Woodruff, FLYWHEEL DRIVEKEY, Woodruff, FLYWHEEL DRIVE
-
14872-9533T38 PISTON ASSEMBLY
SN# US-0B114230/Can-0A719660/Bel-9467987 & BelowPISTON ASSEMBLY
SN# US-0B114230/Can-0A719660/Bel-9467987 & Below -
14767-9104T19 PISTON ASSEMBLY
SN# US-0B114231/Can-0A719661/Bel-9467988 & UpPISTON ASSEMBLY
SN# US-0B114231/Can-0A719661/Bel-9467988 & Up -
1540-828119 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
1639-8M0096518 RING SET, PistonRING SET, Piston
-
17630-8835A4 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1829-98295 BEARING, Needle, PISTON ENDBEARING, Needle, PISTON END
-
1912-8M0012294 BEARING, LOCATING - NEEDLE BEARINGBEARING, LOCATING - NEEDLE BEARING
-
2031-879877A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
2110-4008225 SCREW, (M6 x 25), CONNECTING RODSCREW, (M6 x 25), CONNECTING ROD
-
-27-41499A88 GASKET SETGASKET SET
-
-879732T89 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
