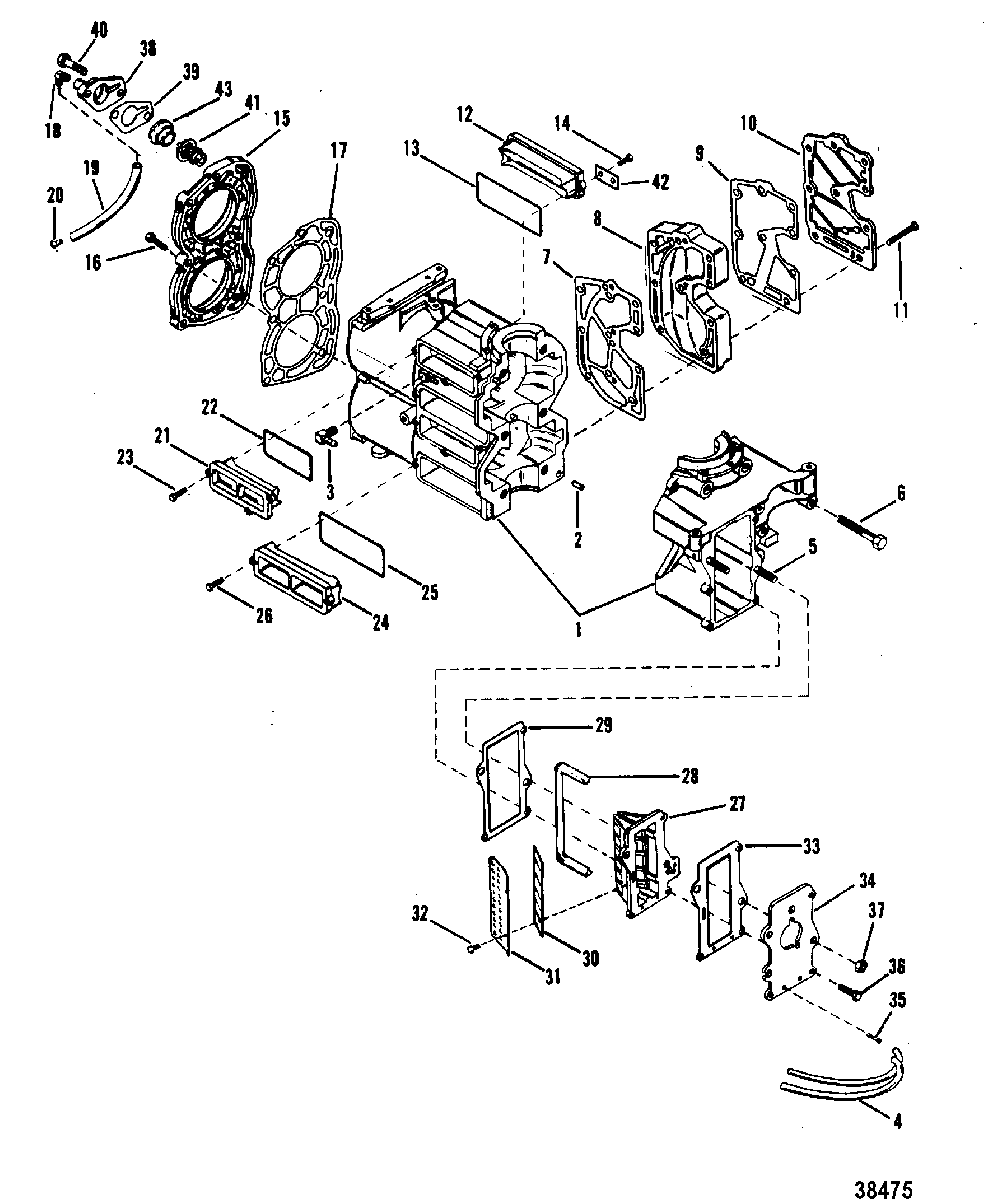

BLOCK(US-0B114231/Can-0A719661/Bel-9467988 and Up) для Mariner - 18XD 9378151 THRU 9507380

  • №
    Артикул
    Название
  • 1
    872-9533T38 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    17-85171 PIN, Dowel, CYLINDER BLOCK
    PIN, Dowel, CYLINDER BLOCK
  • 3
    22-15133 FITTING, BLEED HOSE (45 DEG.)
    FITTING, BLEED HOSE (45 DEG.)
  • 4
    32-892024122 TUBING, (20.00 Feet Bulk), BLEED (12-1/4")
    TUBING, (20.00 Feet Bulk), BLEED (12-1/4")
  • 5
    16-429173 STUD, CARBURETOR
    STUD, CARBURETOR
  • 6
    10-40001209 SCREW, (M10 x 60), CRANKCASE TO CYLINDER BLOCK
    SCREW, (M10 x 60), CRANKCASE TO CYLINDER BLOCK
  • 7
    27-892158 GASKET, EXJAUST MANIFOLD
    GASKET, EXJAUST MANIFOLD
  • 8
    92329F03 MANIFOLD, Exhaust
    MANIFOLD, Exhaust
  • 9
    27-892157 GASKET, EXHAUST COVER
    GASKET, EXHAUST COVER
  • 10
    923301 COVER, EXHAUST
    COVER, EXHAUST
  • 11
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 12
    144071 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 13
    25-822370 O-RING, TRANSFER PORT COVER
    O-RING, TRANSFER PORT COVER
  • 14
    10-40057107 SCREW, (M5 x 16), COVER TO CYLINDER BLOCK
    SCREW, (M5 x 16), COVER TO CYLINDER BLOCK
  • 15
    1028-8282A1 COVER ASEMBLY, CYLINDER BLOCK
    COVER ASEMBLY, CYLINDER BLOCK
  • 16
    10-4000331 SCREW, (M6 x 30), COVER ATTACHING
    SCREW, (M6 x 30), COVER ATTACHING
  • 17
    27-863895 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 18
    22-996642 ELBOW, TELL TALE HOSE
    ELBOW, TELL TALE HOSE
  • 19
    32-8M0108355 HOSE, TELL TALE (8")
    HOSE, TELL TALE (8")
  • 20
    22-94848 FITTING, TELL TALE HOSE - BOTTOM COWL
    FITTING, TELL TALE HOSE - BOTTOM COWL
  • 21
    14406 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 22
    25-86391 O-RING, TRANSFER PORT COVER
    O-RING, TRANSFER PORT COVER
  • 23
    10-40057107 SCREW, (M5 x 16), COVER TO CYLINDER BLOCK
    SCREW, (M5 x 16), COVER TO CYLINDER BLOCK
  • 24
    14408 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 25
    25-26722 O-RING, TRANSFER PORT COVER
    O-RING, TRANSFER PORT COVER
  • 26
    10-40057107 SCREW, (M5 x 16), COVER TO CYLINDER BLOCK
    SCREW, (M5 x 16), COVER TO CYLINDER BLOCK
  • 27
    14112T REED BLOCK
    REED BLOCK
  • 28
    85977002 SEAL, Rubber, REED BLOCK
    SEAL, Rubber, REED BLOCK
  • 29
    27-414172 GASKET
    GASKET
  • 30
    34-816806 REED
    REED
  • 31
    34-897931 STOP, Reed
    STOP, Reed
  • 32
    10-4005785 SCREW, (M4 x 10), REED ATTACHING
    SCREW, (M4 x 10), REED ATTACHING
  • 33
    27-414181 GASKET, ADAPTOR PLATE
    GASKET, ADAPTOR PLATE
  • 34
    41420A3 PLATE, CARBURETOR
    PLATE, CARBURETOR
  • 35
    22-56759 FITTING, Barbed, ADAPTOR PLATE - BLEED HOSE
    FITTING, Barbed, ADAPTOR PLATE - BLEED HOSE
  • 36
    10-40019108 SCREW, (M5 x 20), PLATE TO REED BLOCK
    SCREW, (M5 x 20), PLATE TO REED BLOCK
  • 37
    11-400213 NUT, (M8) Stainless Steel, CARBURETOR STUD
    NUT, (M8) Stainless Steel, CARBURETOR STUD
  • 38
    143171 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 39
    27-14318005 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 40
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 41
    14586 THERMOSTAT
    THERMOSTAT
  • 42
    54-12627 STRAP
    STRAP
  • 43
    27-62386001 GASKET, THERMOSTAT
    GASKET, THERMOSTAT
  • -
    27-41499A88 GASKET SET
    GASKET SET
