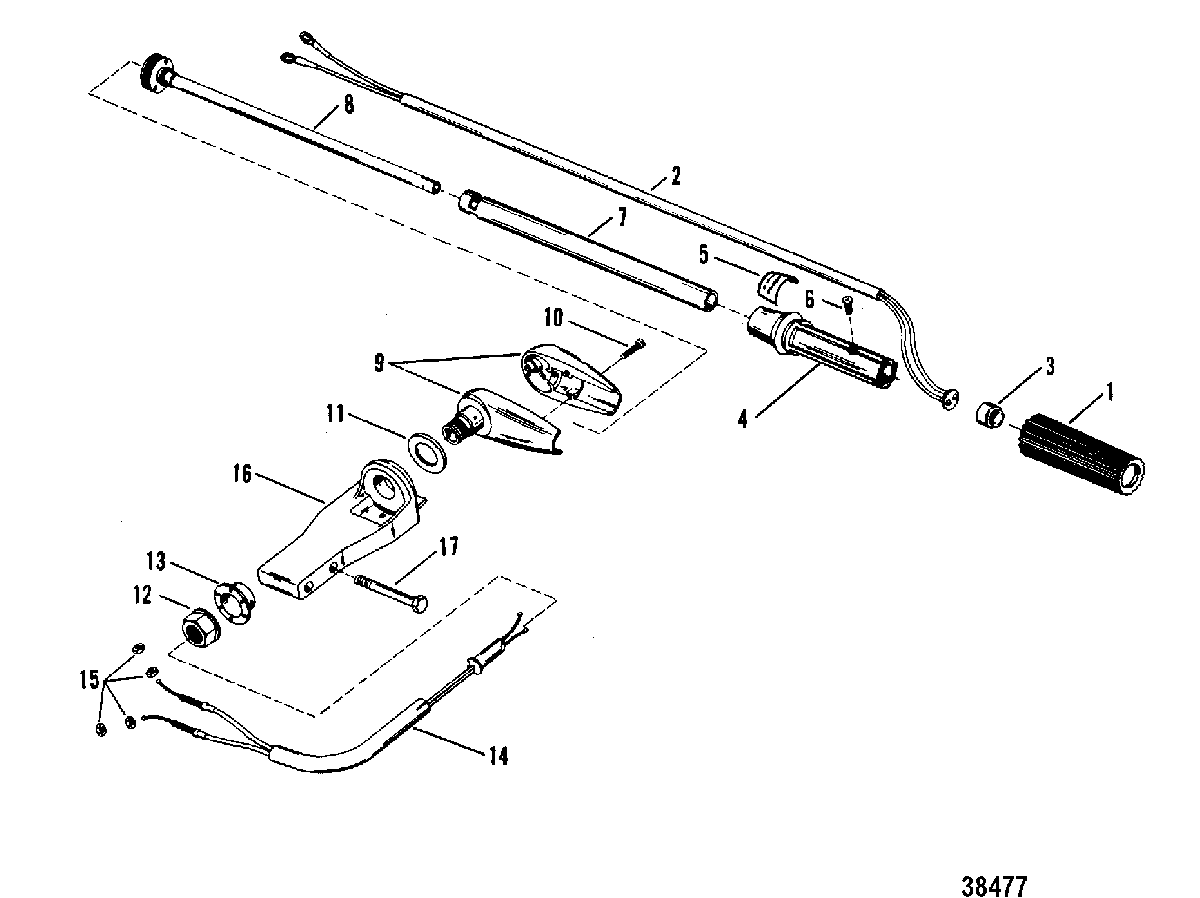

STEERING HANDLE ASSEMBLY(MERCURY) (MANUAL) для Mariner - 18XD 6443973 THRU 0B238463
-
№АртикулНазвание
-
-94185A16 HANDLE ASSEMBLY, SteeringHANDLE ASSEMBLY, Steering
-
199589003 GRIP, RUBBERGRIP, RUBBER
-
284-89591A5 HARNESS ASSEMBLY, STOP SWITCHHARNESS ASSEMBLY, STOP SWITCH
-
311099A1 BOOT ASSEMBLY, STOP SWITCHBOOT ASSEMBLY, STOP SWITCH
-
487-823609A10 HANDLE ASSEMBLY, THROTTLEHANDLE ASSEMBLY, THROTTLE
-
537-13239 DECAL, THROTTLE
(APPLY ON HANDLE)DECAL, THROTTLE
(APPLY ON HANDLE) -
537-140121 DECAL, THROTTLE
(APPLY ON TUBE)DECAL, THROTTLE
(APPLY ON TUBE) -
610-62568 SCREW, (#10-16 x .375), THROTTLE HANDLESCREW, (#10-16 x .375), THROTTLE HANDLE
-
799333A2 TUBE ASSEMBLY, STEERINGTUBE ASSEMBLY, STEERING
-
8975501 TUBE ASSEMBLYTUBE ASSEMBLY
-
943447A3 BRACKEY ASSEMBLYBRACKEY ASSEMBLY
-
1010-4005688 SCREW, (M4 x 20), BRACKET CLAMPINGSCREW, (M4 x 20), BRACKET CLAMPING
-
1112-57860 WASHER, NYLON - BRACKETWASHER, NYLON - BRACKET
-
1211-82671327 NUT, (1.00-14), BRACKETNUT, (1.00-14), BRACKET
-
1323-85973 BUSHING, BRACKETBUSHING, BRACKET
-
1443242 CABLE ASSEMBLY, THROTTLECABLE ASSEMBLY, THROTTLE
-
1511-400212 NUT, (M6) Stainless Steel, THROTTLE CABLENUT, (M6) Stainless Steel, THROTTLE CABLE
-
1643447A3 BRACKET ASSEMBLY, STEERINGBRACKET ASSEMBLY, STEERING
-
1710-4000384 SCREW, (M10 x 80), BRACKET TOSWIVEL TUBESCREW, (M10 x 80), BRACKET TOSWIVEL TUBE
