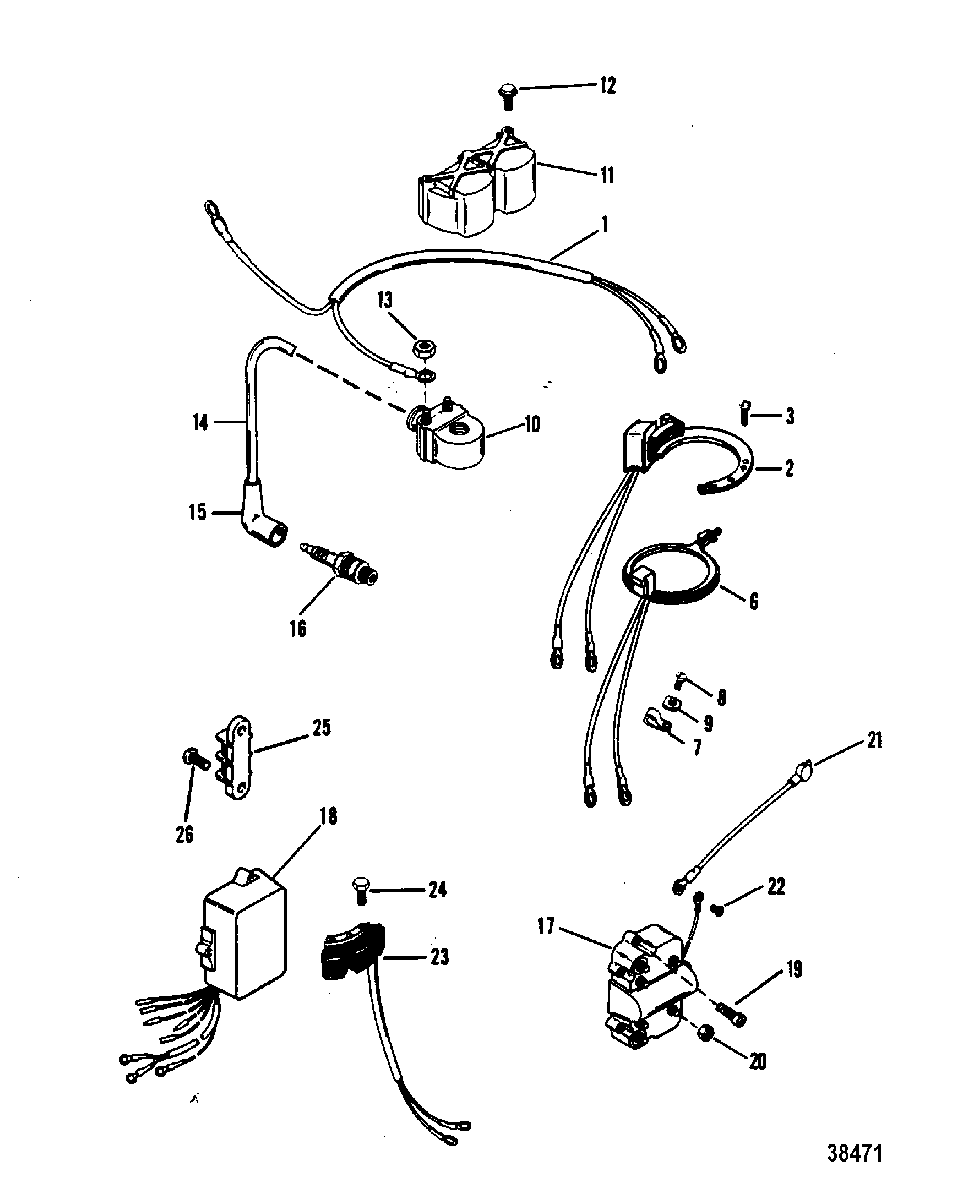

IGNITION COMPONENTS для Mariner - 18XD 6443973 THRU 0B238463

  • №
    Артикул
    Название
  • 1
    84-88891A1 HARNESS ASSEMBLY, PRIMARY
    (W/NUT CONNECTIONS)
    HARNESS ASSEMBLY, PRIMARY
    (W/NUT CONNECTIONS)
  • 2
    86617A20 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 3
    10-4000120 SCREW, (M5 x 25), STATOR ATTACHING
    SCREW, (M5 x 25), STATOR ATTACHING
  • 3
    10-400015 SCREW, (M5 x 10), STATOR ATTACHING
    MANUAL
    SCREW, (M5 x 10), STATOR ATTACHING
    MANUAL
  • 6
    98450A10 TRIGGER ASSEMBLY
    TRIGGER ASSEMBLY
  • 7
    54-24836 CLIP, TRIGGER LEADS
    CLIP, TRIGGER LEADS
  • 8
    10-77137 SCREW, (.190-16 x .620)
    SCREW, (.190-16 x .620)
  • 9
    8M0084613 C WASHER, CLIP SCREW
    C WASHER, CLIP SCREW
  • 10
    339-832757A4 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 11
    997621 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 12
    10-40007115 SCREW, (M5 x 55), IGNITION COIL COVER
    SCREW, (M5 x 55), IGNITION COIL COVER
  • 13
    11-45076 NUT, (#10-32) Brass, COIL TERMINAL
    NUT, (#10-32) Brass, COIL TERMINAL
  • 14
    84-813715A1 LEAD ASSEMBLY, HIGH TENSION
    LEAD ASSEMBLY, HIGH TENSION
  • 15
    85-63709A1 BOOT/TERMINAL KIT, SPARK PLUG
    BOOT/TERMINAL KIT, SPARK PLUG
  • 16
    33-97180Q SPARK PLUG
    SPARK PLUG
  • 16
    33-14103Q SPARK PLUG (CANADA AND BELGUIM)
    SPARK PLUG (CANADA AND BELGUIM)
  • 17
    899883230 SWITCHBOX ASSEMBLY (WITH NUT CONNECTIONS)
    SWITCHBOX ASSEMBLY (WITH NUT CONNECTIONS)
  • 18
    339-7452A19 SWITCHBOX ASSEMBLY (WITH BULLET CONNECTIONS)
    SWITCHBOX ASSEMBLY (WITH BULLET CONNECTIONS)
  • 19
    10-40019108 SCREW, (M5 x 20), SWITCH BOX TO CYLINDER BLOCK
    SCREW, (M5 x 20), SWITCH BOX TO CYLINDER BLOCK
  • 20
    11-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINALS
    NUT, (#10-32) Brass, SWITCH BOX TERMINALS
  • 21
    84-88807A10 CABLE ASSEMBLY, GROUND
    CABLE ASSEMBLY, GROUND
  • 22
    10-43394 SCREW, (#10-24 x .500), GROUND WIRE
    SCREW, (#10-24 x .500), GROUND WIRE
  • 23
    86704A10 STATOR ASSEMBLY, AUXILIARY
    (MARINER)
    STATOR ASSEMBLY, AUXILIARY
    (MARINER)
  • 24
    10-4000123 SCREW, (M5 x 30), STATOR ATTACHING
    (MARINER)
    SCREW, (M5 x 30), STATOR ATTACHING
    (MARINER)
  • 25
    86-638131 TERMINAL BLOCK
    (MARINER)
    TERMINAL BLOCK
    (MARINER)
  • 26
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, TERMINAL BLOCK
    (MARINER)
    SCREW, (#10-16 x .625) Stainless Steel, TERMINAL BLOCK
    (MARINER)
