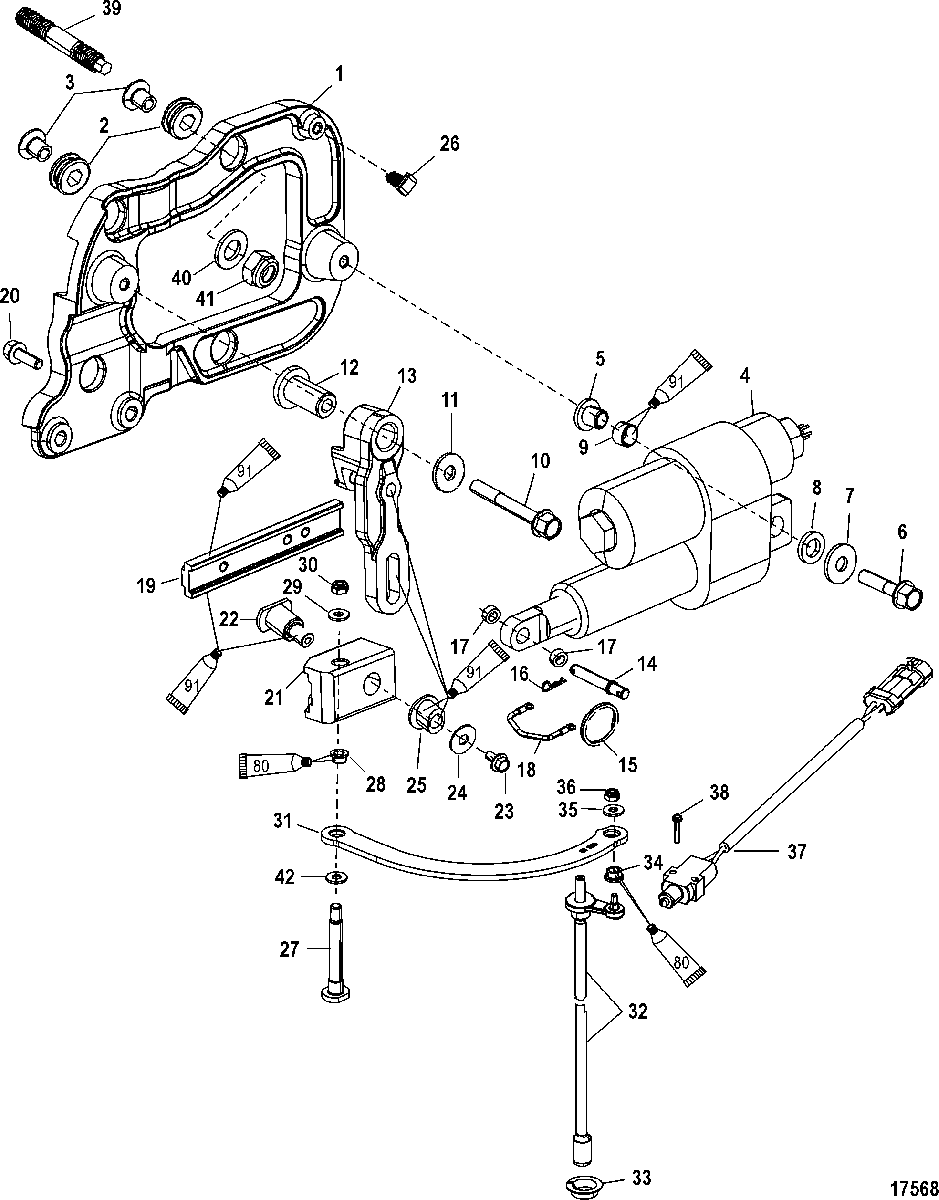

Shift Components для Mariner - 175 VERADO (4-STROKE)(4 CYL.) 1B517159 & Up

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Actuator Plate Assembly-Complete
    NOT SOLD SEPARATE, Actuator Plate Assembly-Complete
  • 1
    895739T BRACKET, Shift
    BRACKET, Shift
  • 2
    25-855362001 GROMMET
    GROMMET
  • 3
    23-855364 BUSHING
    BUSHING
  • 4
    8M0124413 SHIFT ACTUATOR
    SHIFT ACTUATOR
  • 5
    23-884532001 BUSHING
    BUSHING
  • 6
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 7
    12-898097 WASHER
    WASHER
  • 8
    12-889661 WASHER, Rubber
    WASHER, Rubber
  • 9
    23-888589 WEAR SLEEVE
    WEAR SLEEVE
  • 10
    10-8M0103817 SCREW, (M8 x 60)
    SCREW, (M8 x 60)
  • 11
    12-898097 WASHER
    WASHER
  • 12
    23-884554 BUSHING
    BUSHING
  • 13
    895737 BELL CRANK
    BELL CRANK
  • 14
    17-895736 PIN
    PIN
  • 15
    885569 SPLIT RING
    SPLIT RING
  • 16
    NSS NOT SOLD SEPARATE, Cotter Pin (Service Bulletin 2003-10)
    NOT SOLD SEPARATE, Cotter Pin (Service Bulletin 2003-10)
  • 17
    884599 SPACER
    SPACER
  • 18
    84-88807A6 CABLE ASSEMBLY, (3.50 Inches) Black
    CABLE ASSEMBLY, (3.50 Inches) Black
  • 19
    896212 RAIL SHIFT SLIDE
    RAIL SHIFT SLIDE
  • 20
    10-82155025 SCREW, (M8 x 25 MM) Stainless Steel
    SCREW, (M8 x 25 MM) Stainless Steel
  • 21
    898053A01 SHIFT SLIDER KIT
    SHIFT SLIDER KIT
  • 22
    23-884555 BUSHING
    BUSHING
  • 23
    10-82104510 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
  • 24
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 25
    887901 BUSHING
    BUSHING
  • 26
    54-828991T CLIP
    CLIP
  • 27
    16-8M0025850 STUD (Included with Reference 21)
    STUD (Included with Reference 21)
  • 28
    23-896551 BUSHING
    BUSHING
  • 29
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 30
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 31
    895742 SHIFT LINK
    SHIFT LINK
  • 32
    8M0091613 LEVER, Shift Shaft
    (Long)
    LEVER, Shift Shaft
    (Long)
  • 32
    8M0091614 LEVER, Shift Shaft
    (X-Long)
    LEVER, Shift Shaft
    (X-Long)
  • 33
    23-74647 NYLINER
    NYLINER
  • 34
    23-896551 BUSHING
    BUSHING
  • 35
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 36
    11-8M0045046 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 37
    87-8M0052939 SWITCH
    SWITCH
  • 38
    10-88075020 SCREW, (M3 x 20)
    SCREW, (M3 x 20)
  • 39
    16-8M0022167 STUD, (M8 x 50)
    STUD, (M8 x 50)
  • 40
    12-4002318 WASHER
    WASHER
  • 41
    11-401388 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 42
    12-814806 WASHER, (.344 x .688 x .065) Stainless Steel
    WASHER, (.344 x .688 x .065) Stainless Steel
