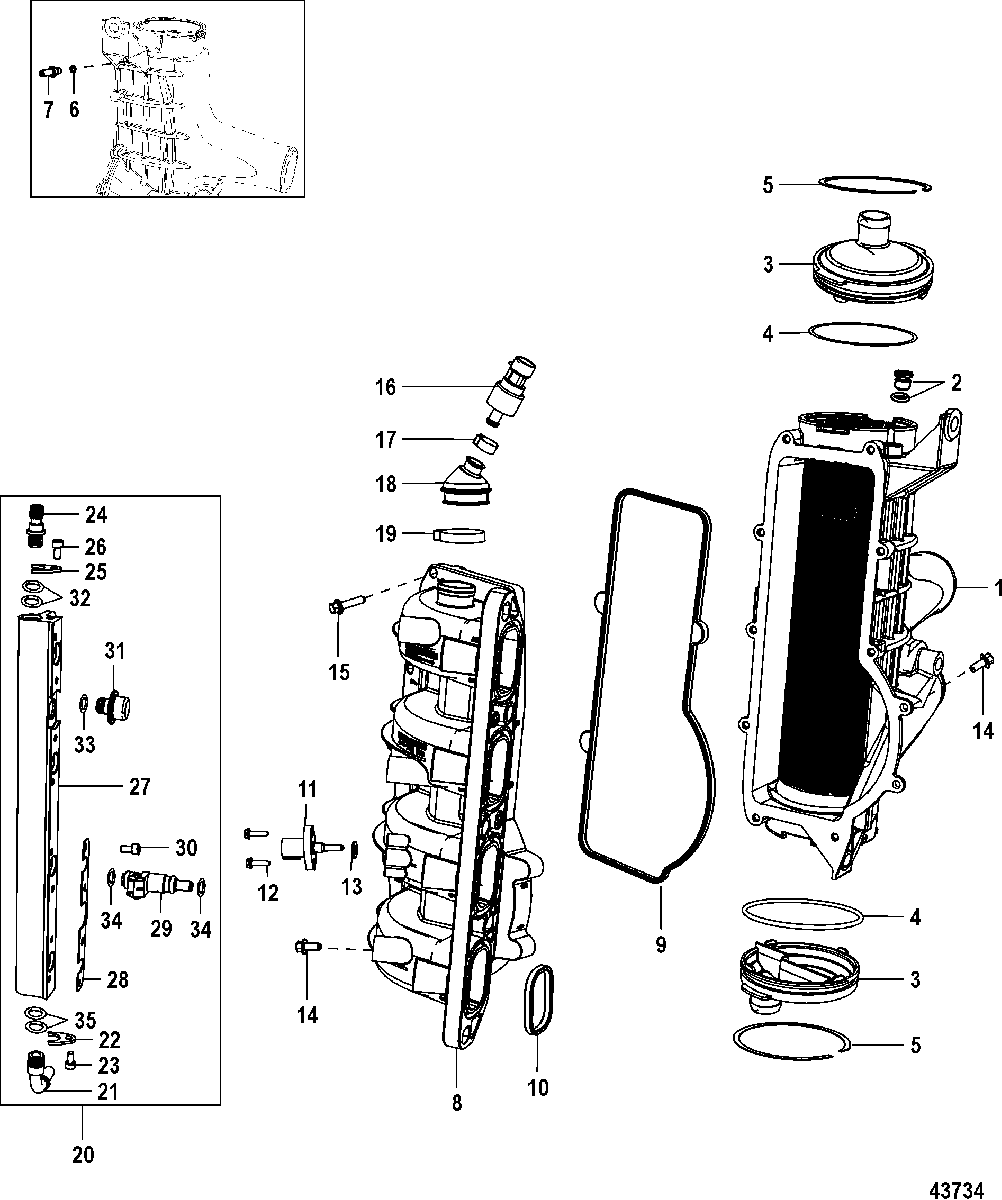

Charge Cooler/Intake Manifold(Gen II) End Cap Serviced для Mariner - 175 VERADO (4-STROKE)(4 CYL.) 1B517159 & Up

  • №
    Артикул
    Название
  • -
    8M0131232 MODULE ASSEMBLY, Integrated Air Fuel
    SN# 1B842420 thru 1B870104, 1B870853 & Up
    MODULE ASSEMBLY, Integrated Air Fuel
    SN# 1B842420 thru 1B870104, 1B870853 & Up
  • 1
    8M0132387 CAC ASSEMBLY
    CAC ASSEMBLY
  • 2
    19-8M0048079 PLUG, Zero Leak (M8 x 1.0), Secondary Pressure
    PLUG, Zero Leak (M8 x 1.0), Secondary Pressure
  • 3
    8M0046698 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 4
    25-8M0039516 O-RING
    O-RING
  • 5
    53-8M0039464 RING, Retaining
    RING, Retaining
  • 6
    25-8M0040116 O-RING
    O-RING
  • 7
    22-8M0039993 FITTING
    FITTING
  • 8
    NSS NOT SOLD SEPARATE
    INTAKE MANIFOLD
    NOT SOLD SEPARATE
    INTAKE MANIFOLD
  • 9
    26-896663 SEAL, Manifold to CAC
    SEAL, Manifold to CAC
  • 10
    895020 SEAL, Manifold Head
    SEAL, Manifold Head
  • 11
    891663001 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 12
    10-895054 SCREW, (M4 x 16 MM)
    SCREW, (M4 x 16 MM)
  • 13
    25-892317001 O-RING
    O-RING
  • 14
    10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to Manifold
    SCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to Manifold
  • 14
    10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel, CAC to Manifold
    SCREW, (M6 x 16 MM) Stainless Steel, CAC to Manifold
  • 15
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel, Manifold to CAC
    SCREW, (M6 x 25 MM) Stainless Steel, Manifold to CAC
  • 16
    8M6000639 SENSOR
    SENSOR
  • 17
    54-13791 CLAMP, (15.7 mm)
    CLAMP, (15.7 mm)
  • 18
    8M0041053 BOOT, MAP Sensor
    BOOT, MAP Sensor
  • 19
    54-888988001 CLAMP, (36.1 mm)
    CLAMP, (36.1 mm)
  • 20
    8M0129470 FUEL RAIL ASSEMBLY
    FUEL RAIL ASSEMBLY
  • 21
    32-8M0047054 TUBE KIT, Fuel Inlet
    TUBE KIT, Fuel Inlet
  • 22
    8M0041097 BRACKET
    BRACKET
  • 23
    10-8M0041100 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
  • 24
    8M0047053 VALVE KIT, Shrader
    VALVE KIT, Shrader
  • 25
    8M0041097 BRACKET
    BRACKET
  • 26
    10-8M0041100 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
  • 27
    NSS NOT SOLD SEPARATE, FUEL RAIL
    NOT SOLD SEPARATE, FUEL RAIL
  • 28
    8M0041096 BRACKET, Fuel Injector Mounting
    BRACKET, Fuel Injector Mounting
  • 29
    8M0041571 INJECTOR ASSEMBLY, Fuel
    INJECTOR ASSEMBLY, Fuel
  • 30
    10-8M0041100 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
  • 31
    8M0041101 DAMPER
    DAMPER
  • -
    8M0047056 O-RING KIT
    O-RING KIT
  • 32
    NSS NOT SOLD SEPARATE, O-RING, Schrader Valve
    NOT SOLD SEPARATE, O-RING, Schrader Valve
  • 33
    25-851889 O-RING, Damper
    O-RING, Damper
  • 34
    25-851889 O-RING, Fuel Injector
    O-RING, Fuel Injector
  • 35
    NSS NOT SOLD SEPARATE, O-RING, Tube
    NOT SOLD SEPARATE, O-RING, Tube
