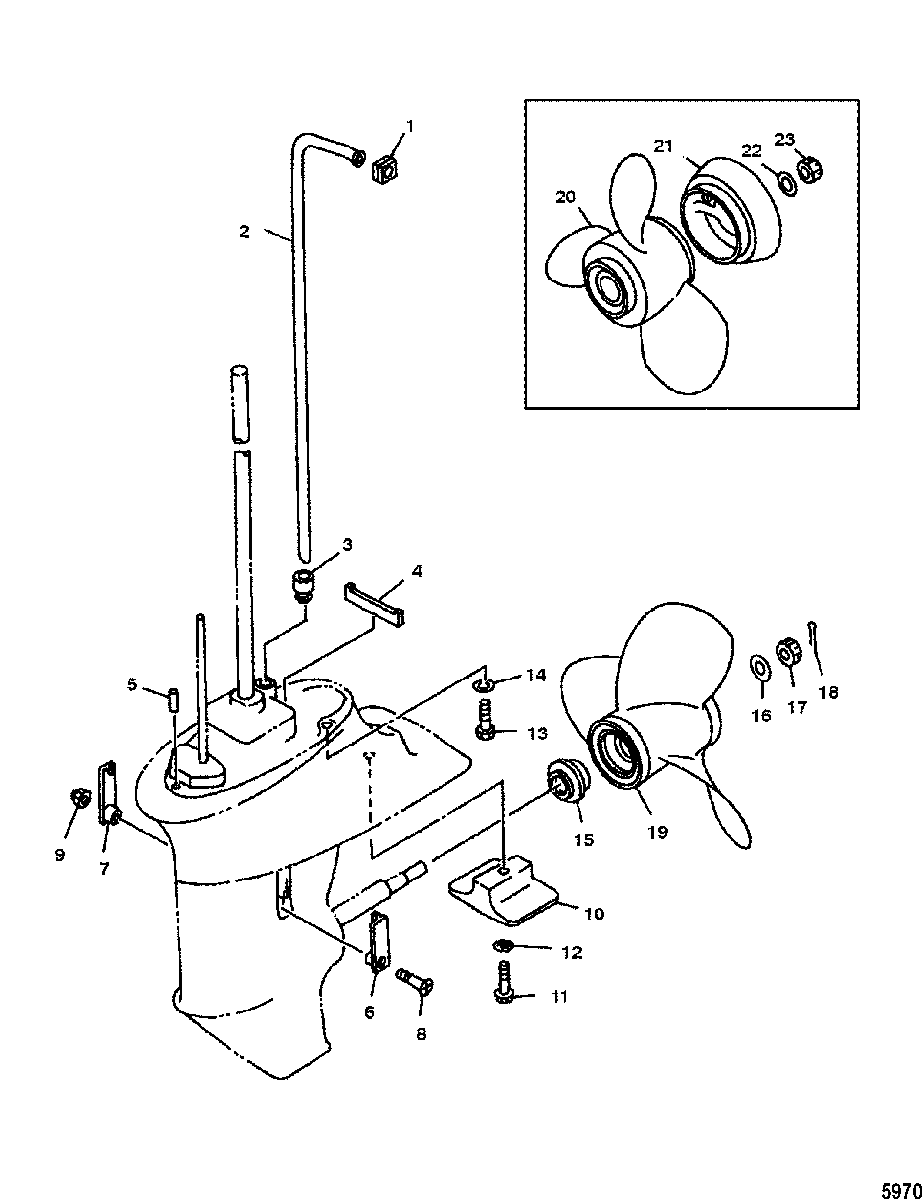

Gear Housing, Propeller and Water Tube для Mariner - 15K 65G-602581 & Up
-
№АртикулНазвание
-
126-852859 SEALSEAL
-
232-8045001 TUBE, Water
(SHORT)TUBE, Water
(SHORT) -
232-80450011 TUBE, Water
(LONG)TUBE, Water
(LONG) -
326-8528591 SEALSEAL
-
426-8528592 SEALSEAL
-
517-41275M PIN, DowelPIN, Dowel
-
6852861 COVERCOVER
-
78528611 COVERCOVER
-
810-8527879 SCREWSCREW
-
911-8528165 NUTNUT
-
1097-827053M ANODEANODE
-
1110-11561M BOLTBOLT
-
1212-827055M WASHERWASHER
-
1310-85277615 BOLTBOLT
-
1412-82217M WASHERWASHER
-
1512-815025M THRUST HUBTHRUST HUB
-
16859894 WASHERWASHER
-
17859933 NUTNUT
-
1818-852862 COTTER PINCOTTER PIN
-
19QA3902R PROPELLER
(3 X 9-1/4 X 8)PROPELLER
(3 X 9-1/4 X 8) -
1948-84083M PROPELLER
(3 X 9-1/2 X 6-1/2)PROPELLER
(3 X 9-1/2 X 6-1/2) -
19QA3906R PROPELLER
(3 X 9-1/4 X 9)PROPELLER
(3 X 9-1/4 X 9) -
19QA3914R PROPELLER
(3 X 9-1/4 X 9-3/4)PROPELLER
(3 X 9-1/4 X 9-3/4) -
19QA3914R PROPELLER
(3 X 9-1/4 X 10-1/2)PROPELLER
(3 X 9-1/4 X 10-1/2) -
19QA3920R PROPELLER
(3 X 9-1/4 X 12)PROPELLER
(3 X 9-1/4 X 12) -
20QA3902R PROPELLER
(3 X 9-3/4 X 8) DUAL THRUST HUBPROPELLER
(3 X 9-3/4 X 8) DUAL THRUST HUB -
20QA3902R PROPELLER
(3 X 9-3/4 X 6-1/2) DUAL THRUST HUBPROPELLER
(3 X 9-3/4 X 6-1/2) DUAL THRUST HUB -
21827129M DEFLECTOR RING
DUAL THRUST HUBDEFLECTOR RING
DUAL THRUST HUB -
2212-84974M WASHER
DUAL THRUST HUBWASHER
DUAL THRUST HUB -
2311-827130M NUT
DUAL THRUST HUBNUT
DUAL THRUST HUB -
-27-852867A1 GASKET SET, Lower UnitGASKET SET, Lower Unit
