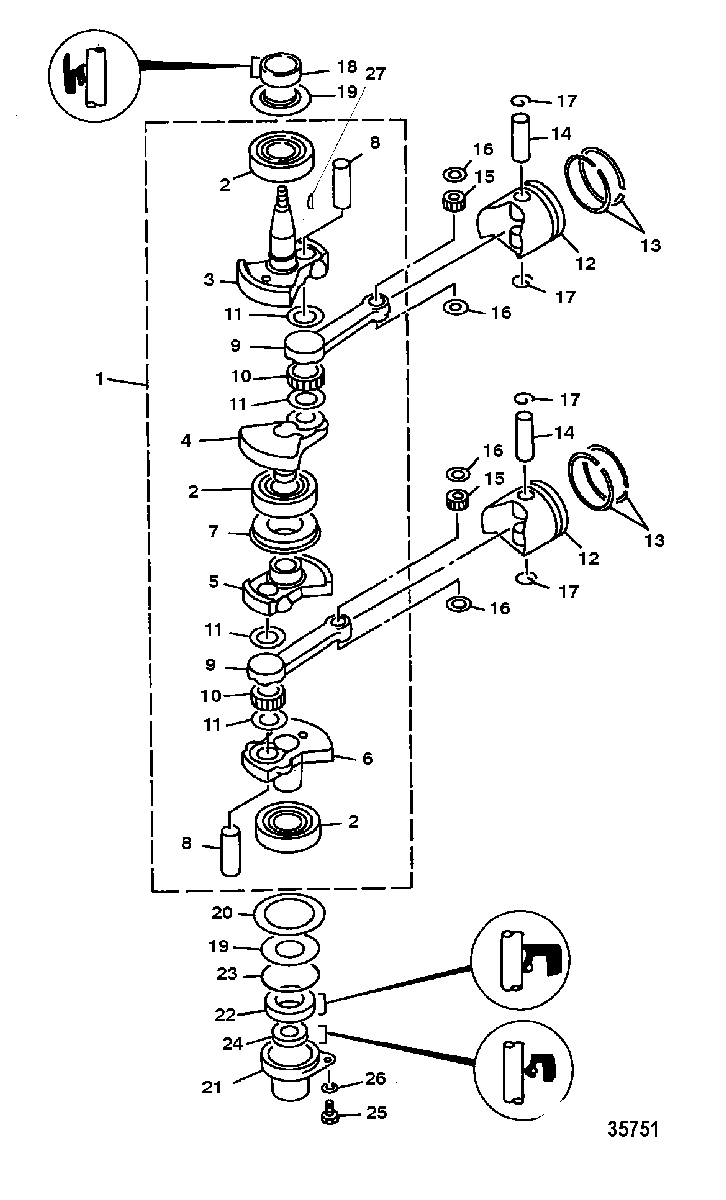

Crankshaft, Pistons and Connecting Rods для Mariner - 15K 65G-602581 & Up
-
№АртикулНазвание
-
1463-852798A02 CRANKSHAFTCRANKSHAFT
-
230-852800 BEARINGBEARING
-
3827192M CRANKCRANK
-
4852799 CRANKCRANK
-
58527991 CRANKCRANK
-
68527992 CRANKCRANK
-
7852801 SEALSEAL
-
817-84625M PINPIN
-
9629-812494M CONNECTING RODCONNECTING ROD
-
1031-812495M BEARINGBEARING
-
1112-84636M WASHERWASHER
-
12761-9580T PISTON
(STANDARD)PISTON
(STANDARD) -
12761-9581M PISTON
(1ST. O.S. 0.25MM)PISTON
(1ST. O.S. 0.25MM) -
12761-9582M PISTON
(2ND. O.S. 0.50MM)PISTON
(2ND. O.S. 0.50MM) -
1339-15320T RING SET, Piston
(STANDARD)RING SET, Piston
(STANDARD) -
1339-18939T RING SET, Piston
(1ST. O.S. 0.25MM)RING SET, Piston
(1ST. O.S. 0.25MM) -
1339-15322T RING SET, Piston
(2ND. O.S. 0.50MM)RING SET, Piston
(2ND. O.S. 0.50MM) -
1441-825713 PIN, PistonPIN, Piston
-
1529-82349M BEARING, NeedleBEARING, Needle
-
1612-81823M WASHERWASHER
-
1753-82343M CLIPCLIP
-
1826-83936M SEAL, OilSEAL, Oil
-
1923-852802 SPACERSPACER
-
2012-852803 WASHERWASHER
-
21852795 HOUSINGHOUSING
-
2226-852797 SEAL, OilSEAL, Oil
-
2325-852796 O-RINGO-RING
-
2426-96606M SEAL, OilSEAL, Oil
-
2510-826957M BOLTBOLT
-
2612-82214M WASHERWASHER
-
2728-8M0057164 KEYKEY
-
-852761A02 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-852783A1 GASKET SET, PowerheadGASKET SET, Powerhead
