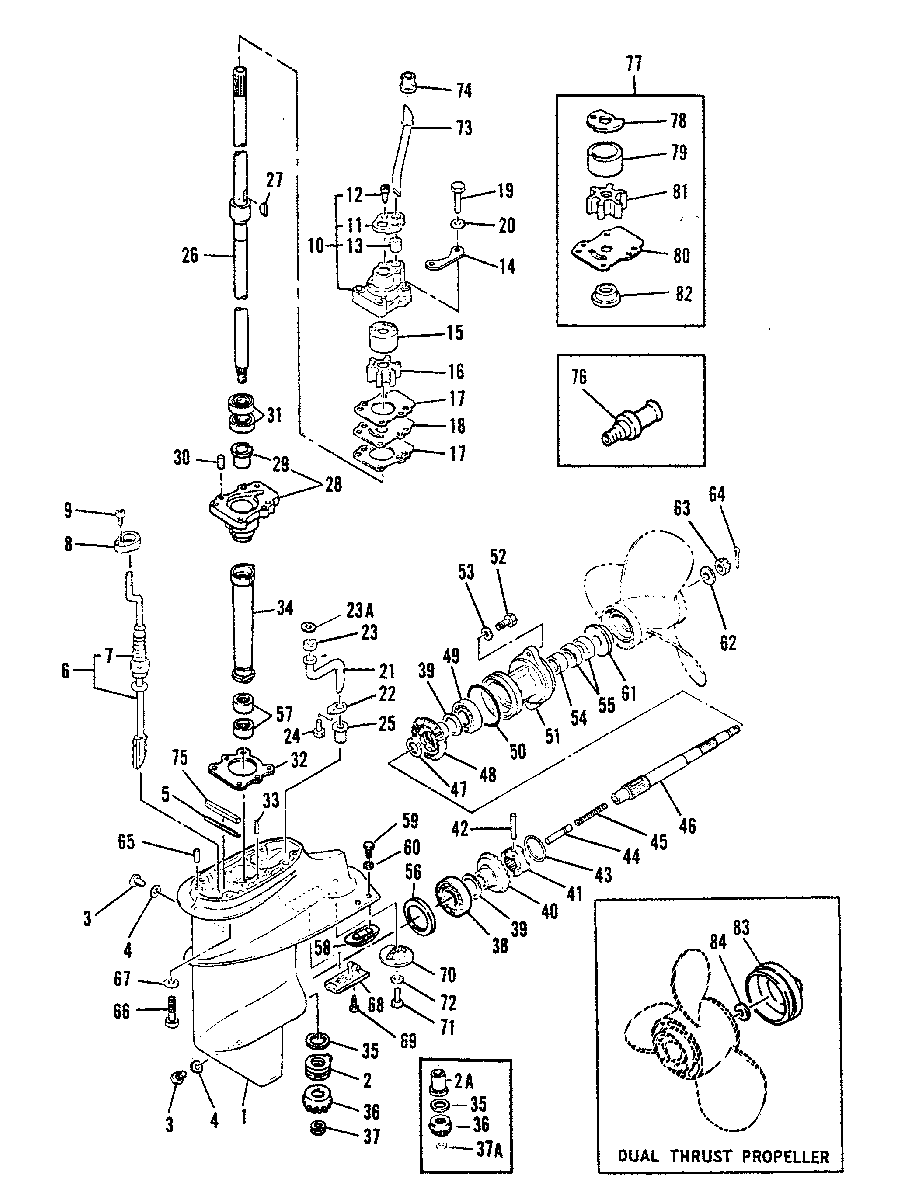

GEAR HOUSING ASSEMBLY для Mariner - 15C EL-684-550101 AND UP

  • №
    Артикул
    Название
  • 0-1
    1651-827124M GEAR HOUSING (SHORT)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    GEAR HOUSING (SHORT)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 0-1
    1651-827125M GEAR HOUSING (LONG)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    GEAR HOUSING (LONG)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 1
    1651-9796M GEAR HOUSING
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
    GEAR HOUSING
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
  • 1
    1651-8625M GEAR HOUSING
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
    GEAR HOUSING
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
  • 2
    31-99030M BEARING
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    BEARING
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 0-1
    NLA GEAR HOUSING (SHORT)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    GEAR HOUSING (SHORT)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 0-1
    NLA GEAR HOUSING (LONG)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    GEAR HOUSING (LONG)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 1
    1651-7146M GEAR HOUSING
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    GEAR HOUSING
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 2A
    23-810455M BUSHING
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    BUSHING
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 3
    22-81924M SCREW
    SCREW
  • 4
    27-81987 GASKET
    GASKET
  • 5
    94622M GUIDE
    GUIDE
  • 6
    84016M SHIFT CAM (SHORT)
    SHIFT CAM (SHORT)
  • 6
    84017M SHIFT CAM (LONG)
    SHIFT CAM (LONG)
  • 6
    84018M SHIFT CAM (SUPER LONG)
    SHIFT CAM (SUPER LONG)
  • 7
    84019M BOOT
    BOOT
  • 8
    84020M BRACKET
    BRACKET
  • 9
    10-84788M SCREW
    SCREW
  • 10
    46-94623T WATER PUMP HOUSING
    WATER PUMP HOUSING
  • 11
    84023M COVER
    COVER
  • 12
    10-84272M SCREW
    SCREW
  • 13
    26-84022M SEAL
    SEAL
  • 14
    94624M PLATE
    PLATE
  • 15
    84025M INSERT
    INSERT
  • 16
    47-84027T IMPELLER
    IMPELLER
  • 17
    27-84024 GASKET
    GASKET
  • 18
    84026M OUTER PLATE
    OUTER PLATE
  • 19
    10-827043M BOLT
    BOLT
  • 20
    12-82214M WASHER
    WASHER
  • 21
    32-94625M WATER PICK-UP TUBE
    WATER PICK-UP TUBE
  • 22
    84072M PLATE
    PLATE
  • 23
    26-94626M SEAL (USE W/O REF.#23A)
    SEAL (USE W/O REF.#23A)
  • 23
    26-94626M SEAL (USE WITH REF. #23A)
    SEAL (USE WITH REF. #23A)
  • 23A
    12-84273M WASHER (USE WITH REF. #23)
    WASHER (USE WITH REF. #23)
  • 24
    10-84088M BOLT
    BOLT
  • 0-1
    1651-827124M GEAR HOUSING (SHORT)
    (M-0132276 ML-312686 E-250806 EL-551256 & Up)
    GEAR HOUSING (SHORT)
    (M-0132276 ML-312686 E-250806 EL-551256 & Up)
  • 0-1
    1651-827125M GEAR HOUSING (LONG)
    (M-0132276 ML-312686 E-250806 EL-551256 & Up)
    GEAR HOUSING (LONG)
    (M-0132276 ML-312686 E-250806 EL-551256 & Up)
  • 0-1
    NLA GEAR HOUSING (SHORT)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    GEAR HOUSING (SHORT)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 0-1
    NLA GEAR HOUSING (LONG)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    GEAR HOUSING (LONG)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 25
    26-99031M SEAL
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    SEAL
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 26
    45-99032M DRIVESHAFT (SHORT)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    DRIVESHAFT (SHORT)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 26
    45-99033M DRIVESHAFT (LONG)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    DRIVESHAFT (LONG)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 26
    45-99034M DRIVESHAFT (SUPER LONG)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    DRIVESHAFT (SUPER LONG)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 25
    26-81607M SEAL
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    SEAL
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 26
    45-84048M DRIVESHAFT(SHORT)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    DRIVESHAFT(SHORT)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 26
    45-84049M DRIVESHAFT (LONG)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    DRIVESHAFT (LONG)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 26
    45-84050M DRIVESHAFT (SUPER LONG)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    DRIVESHAFT (SUPER LONG)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 27
    28-81912M KEY
    KEY
  • 28
    8M0057163 BEARING HOUSING (SEE NOTE #1)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    BEARING HOUSING (SEE NOTE #1)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 28
    8M0070510 BEARING HOUSING
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    BEARING HOUSING
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 29
    23-82590M BUSHING
    BUSHING
  • 30
    17-82364M DOWEL PIN
    DOWEL PIN
  • 31
    26-82229M OIL SEAL
    OIL SEAL
  • 32
    27-84075 GASKET
    GASKET
  • 33
    17-82354M DOWEL PIN
    DOWEL PIN
  • 34
    23-99035M SLEEVE
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    SLEEVE
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 35
    12-99036M THRUST WASHER (0.05MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    THRUST WASHER (0.05MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 35
    12-99037M THRUST WASHER (0.08MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    THRUST WASHER (0.08MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 35
    12-18947M THRUST WASHER (0.08MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    THRUST WASHER (0.08MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 35
    12-18948M THRUST WASHER (0.12MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    THRUST WASHER (0.12MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 35
    12-18949M THRUST WASHER (0.15MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    THRUST WASHER (0.15MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 35
    12-18950M THRUST WASHER (0.18MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    THRUST WASHER (0.18MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 35
    12-18951M THRUST WASHER (0.30MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    THRUST WASHER (0.30MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 35
    12-18952M THRUST WASHER (0.40MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    THRUST WASHER (0.40MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 35
    12-18953M THRUST WASHER (0.50MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    THRUST WASHER (0.50MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 36
    43-99041M PINION GEAR
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    PINION GEAR
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 37
    11-99042M NUT
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    NUT
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 38
    31-82321T ROLLER BEARING
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    ROLLER BEARING
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 34
    23-84063M SLEEVE
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    SLEEVE
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 35
    12-80251M THRUST WASHER (1.1MM)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    THRUST WASHER (1.1MM)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 35
    12-80252M THRUST WASHER (1.2MM)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    THRUST WASHER (1.2MM)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 35
    12-80253M THRUST WASHER (1.3MM)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    THRUST WASHER (1.3MM)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 35
    12-80254M THRUST WASHER (1.4MM)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    THRUST WASHER (1.4MM)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 36
    43-80256M PINION GEAR
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    PINION GEAR
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 37A
    53-82332M SNAP RING
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    SNAP RING
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 38
    30-14273M ROLLER BEARING
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    ROLLER BEARING
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 0-1
    1651-827124M GEAR HOUSING (SHORT)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    GEAR HOUSING (SHORT)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 0-1
    1651-827125M GEAR HOUSING (LONG)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    GEAR HOUSING (LONG)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 0-1
    NLA GEAR HOUSING (SHORT)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    GEAR HOUSING (SHORT)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 0-1
    NLA GEAR HOUSING (LONG)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    GEAR HOUSING (LONG)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 39
    15-19148005 SHIM (0.1MM)
    SHIM (0.1MM)
  • 39
    15-80259M SHIM (0.3MM)
    SHIM (0.3MM)
  • 39
    15-879172251 SHIM (0.5MM)
    SHIM (0.5MM)
  • 40
    43-99043T FORWARD GEAR
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    FORWARD GEAR
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 40
    43-80257T FORWARD GEAR
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    FORWARD GEAR
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 41
    52-84274M CLUTCH
    CLUTCH
  • 42
    17-81899M PIN
    PIN
  • 43
    53-80678M RING
    RING
  • 44
    80923M PLUNGER
    PLUNGER
  • 45
    24-84064M SPRING
    SPRING
  • 46
    44-84078M PROPELLER SHAFT
    PROPELLER SHAFT
  • 47
    12-94627M WASHER
    WASHER
  • 48
    43-99044T REVERSE GEAR
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    REVERSE GEAR
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 48
    43-84077M REVERSE GEAR
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    REVERSE GEAR
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 49
    30-8528001 ROLLER BEARING
    ROLLER BEARING
  • 50
    25-84089M O-RING
    O-RING
  • 51
    84076T CAP
    CAP
  • 52
    10-84058M BOLT
    BOLT
  • 53
    12-82214M WASHER
    WASHER
  • 54
    30-84086M NEEDLE BEARING
    NEEDLE BEARING
  • 55
    26-8540171 OIL SEAL
    OIL SEAL
  • 56
    15-81626M SHIM (0.05MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    SHIM (0.05MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 56
    15-81627M SHIM (0.08MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    SHIM (0.08MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 56
    15-18955M SHIM (0.12MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    SHIM (0.12MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 56
    15-18958M SHIM (0.30MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    SHIM (0.30MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 56
    15-18960M SHIM (0.50MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    SHIM (0.50MM)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 57
    31-99045M NEEDLE BEARING
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    NEEDLE BEARING
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 58
    97-18852M ANODE
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    ANODE
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 59
    10-826957M BOLT
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    BOLT
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 60
    12-82214M WASHER
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    WASHER
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 0-1
    1651-827124M GEAR HOUSING (SHORT)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    GEAR HOUSING (SHORT)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 0-1
    1651-827125M GEAR HOUSING (LONG)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    GEAR HOUSING (LONG)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 0-1
    NLA GEAR HOUSING (SHORT)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    GEAR HOUSING (SHORT)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 0-1
    NLA GEAR HOUSING (LONG)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    GEAR HOUSING (LONG)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 61
    12-815025M THRUST HUB
    (M-074083 ML-344581 E-253156 EL-554058 & Up)
    THRUST HUB
    (M-074083 ML-344581 E-253156 EL-554058 & Up)
  • 61
    859916 THRUST HUB
    (M-074082 ML-344580 E-253155 EL-554057 & Below)
    THRUST HUB
    (M-074082 ML-344580 E-253155 EL-554057 & Below)
  • 62
    859894 WASHER
    WASHER
  • 63
    859933 PROPELLER NUT
    PROPELLER NUT
  • 64
    18-815026 COTTER PIN
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    COTTER PIN
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 64
    18-82132M COTTER PIN (SEE NOTE #6)
    COTTER PIN (SEE NOTE #6)
  • 65
    17-82364M DOWEL PIN
    DOWEL PIN
  • 66
    10-82442M BOLT
    BOLT
  • 67
    12-82217M WASHER
    WASHER
  • 68
    18961M COVER
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
    COVER
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
  • 69
    10-14232M SCREW
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
    SCREW
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
  • 68
    99047M COVER
    (M-013276-062458 ML-312686-336233 E-250806-252703 EL-551256-553588)
    COVER
    (M-013276-062458 ML-312686-336233 E-250806-252703 EL-551256-553588)
  • 69
    10-99048M SCREW
    (M-013276-062458 ML-312686-336233 E-250806-252703 EL-551256-553588)
    SCREW
    (M-013276-062458 ML-312686-336233 E-250806-252703 EL-551256-553588)
  • 68
    84073M COVER
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    COVER
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 69
    10-84276M SCREW
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    SCREW
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 70
    97-811990M ANODE
    ANODE
  • 71
    10-826957M BOLT
    BOLT
  • 72
    12-82214M WASHER
    WASHER
  • 73
    32-84028M WATER TUBE (SHORT)
    WATER TUBE (SHORT)
  • 73
    32-84029M WATER TUBE (LONG)
    WATER TUBE (LONG)
  • 73
    32-84030M WATER TUBE (SUPER LONG)
    WATER TUBE (SUPER LONG)
  • 74
    26-80239M SEAL
    SEAL
  • 75
    26-94628M RUBBER SEAL
    RUBBER SEAL
  • 76
    22-8M0121335 FLUSH PLUG
    (M-023572 ML-323545 E-251806 EL-552656 & Up)
    FLUSH PLUG
    (M-023572 ML-323545 E-251806 EL-552656 & Up)
  • 76
    22-8M0121335 FLUSH PLUG
    (M-023571 ML-323544 E-251805 EL-552655 & Below)
    FLUSH PLUG
    (M-023571 ML-323544 E-251805 EL-552655 & Below)
  • 77
    46-84118M CHROME WATER PUMP KIT
    CHROME WATER PUMP KIT
  • 78
    84119M INNER PLATE
    INNER PLATE
  • 79
    84120M INSERT
    INSERT
  • 80
    84121M OUTER PLATE
    OUTER PLATE
  • 81
    47-84027T IMPELLER
    IMPELLER
  • 82
    96620M COVER
    COVER
  • 83
    11933M PROPELLER RING - DUAL THRUST PROP
    PROPELLER RING - DUAL THRUST PROP
  • 84
    12-84974M WASHER - DUAL THRUST PROP
    WASHER - DUAL THRUST PROP
  • -
    27-99049M LOWER UNIT GASKET SET
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    LOWER UNIT GASKET SET
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • -
    27-84123M LOWER UNIT GASKET SET
    (M-013275 ML-312686 E-250806 EL-551256 & Up)
    LOWER UNIT GASKET SET
    (M-013275 ML-312686 E-250806 EL-551256 & Up)
  • -
    46-84277T WATER PUMP REPAIR KIT
    WATER PUMP REPAIR KIT

Все узлы модели:
