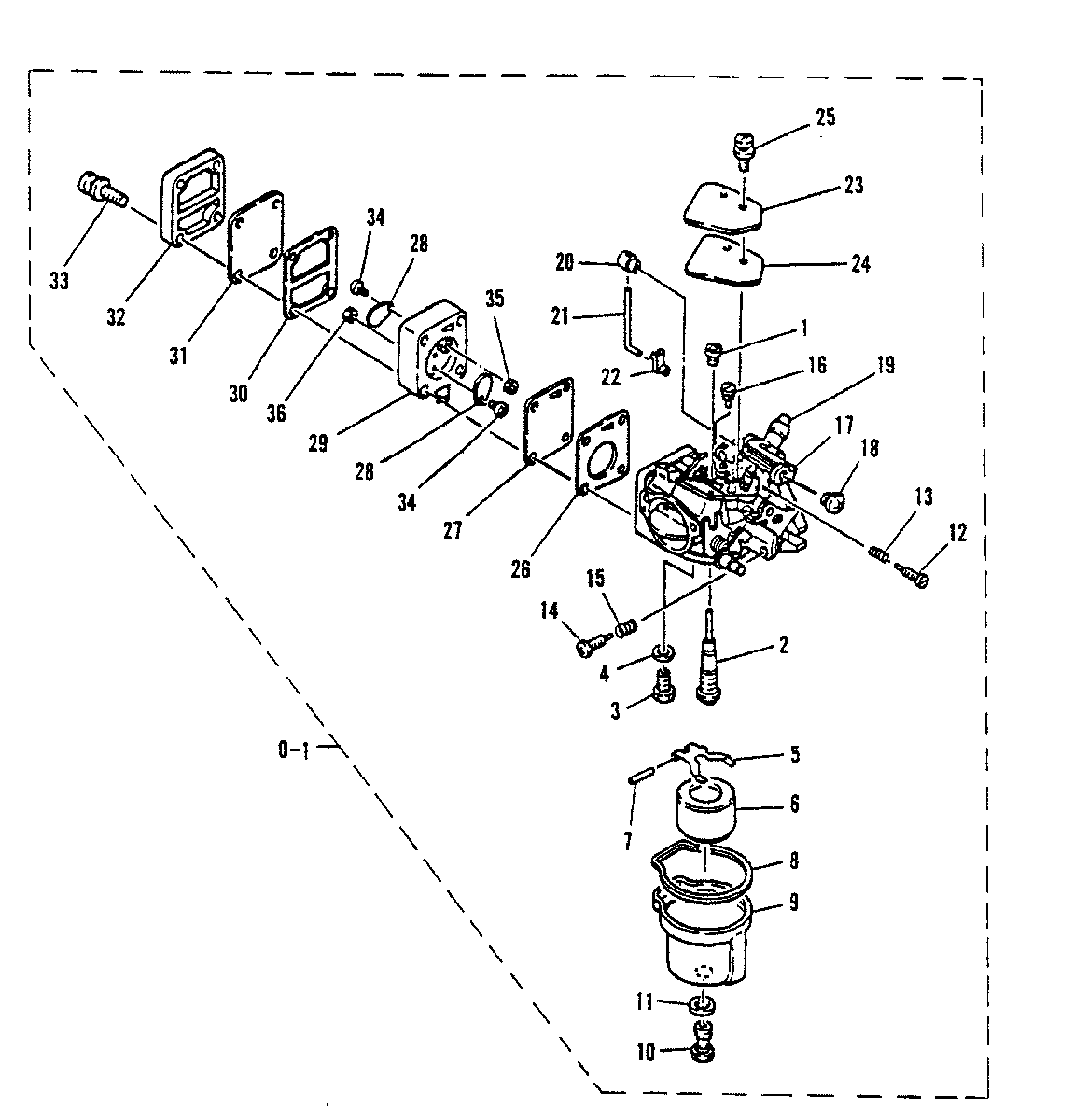

CARBURETOR/FUEL PUMP для Mariner - 15C EL-684-550101 AND UP
-
№АртикулНазвание
-
0-11383-8516M CARBURETOR(684-53/54)CARBURETOR(684-53/54)
-
0-11383-7148M CARB(684-50)CARB(684-50)
-
182600M PILOT JET (#46)PILOT JET (#46)
-
194561M PILOT JET (#48)PILOT JET (#48)
-
284376M MAIN NOZZLE (684-50/53/54)MAIN NOZZLE (684-50/53/54)
-
284251M MAIN NOZZLE (684-51/52)MAIN NOZZLE (684-51/52)
-
380447M VALVE SEATVALVE SEAT
-
412-80261M WASHERWASHER
-
580202M FLOAT ARMFLOAT ARM
-
680450M FLOATFLOAT
-
717-80451M PINPIN
-
827-43115M GASKETGASKET
-
984252M FLOAT BOWLFLOAT BOWL
-
1084377M MAIN JETMAIN JET
-
1127-80267 GASKETGASKET
-
1210-80573M IDLE MIXTURE SCREWIDLE MIXTURE SCREW
-
1324-814460M SPRINGSPRING
-
1410-83509M IDLE SPEED SCREW - 684-53/54IDLE SPEED SCREW - 684-53/54
-
1524-814460M SPRING - 684-53/54SPRING - 684-53/54
-
1410-80738M IDLE SPEED SCREW - 684-50/51/52IDLE SPEED SCREW - 684-50/51/52
-
1524-80966M SPRING - 684-50/51/52SPRING - 684-50/51/52
-
1610-80434M SCREWSCREW
-
1784254M THROTTLE ARM ASSEMBLYTHROTTLE ARM ASSEMBLY
-
1810-80091M SCREWSCREW
-
1984255M COLLARCOLLAR
-
2083300M RETAINERRETAINER
-
2184256M THROTTLE RODTHROTTLE ROD
-
2216333 RETAINERRETAINER
-
2398992M PLATE - 684-53/54PLATE - 684-53/54
-
2427-98993T GASKET - 684-53/54GASKET - 684-53/54
-
2510-82500M SCREW - 684-53/54SCREW - 684-53/54
-
2384258M PLATE - 684-50/51/52PLATE - 684-50/51/52
-
2427-84259M GASKET - 684-50/51/52GASKET - 684-50/51/52
-
2510-83509M SCREW - 684-50/51/52SCREW - 684-50/51/52
-
2627-815009 GASKETGASKET
-
2784262M DIAPHRAGMDIAPHRAGM
-
2821-84650M CHECK VALVE (684-50/51/52)CHECK VALVE (684-50/51/52)
-
2821-41888M CHECK VALVE (684-53/54)CHECK VALVE (684-53/54)
-
2984263M BODY (684-53/54)BODY (684-53/54)
-
2984263M BODY (684-50/51/52)BODY (684-50/51/52)
-
3027-84264 GASKETGASKET
-
3184265M DIAPHRAGMDIAPHRAGM
-
3284266M COVERCOVER
-
3310-80954M SCREWSCREW
-
3410-813484M SCREW - 684-53/54SCREW - 684-53/54
-
3511-82537M NUT - 684-53/54NUT - 684-53/54
-
-84473T CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
