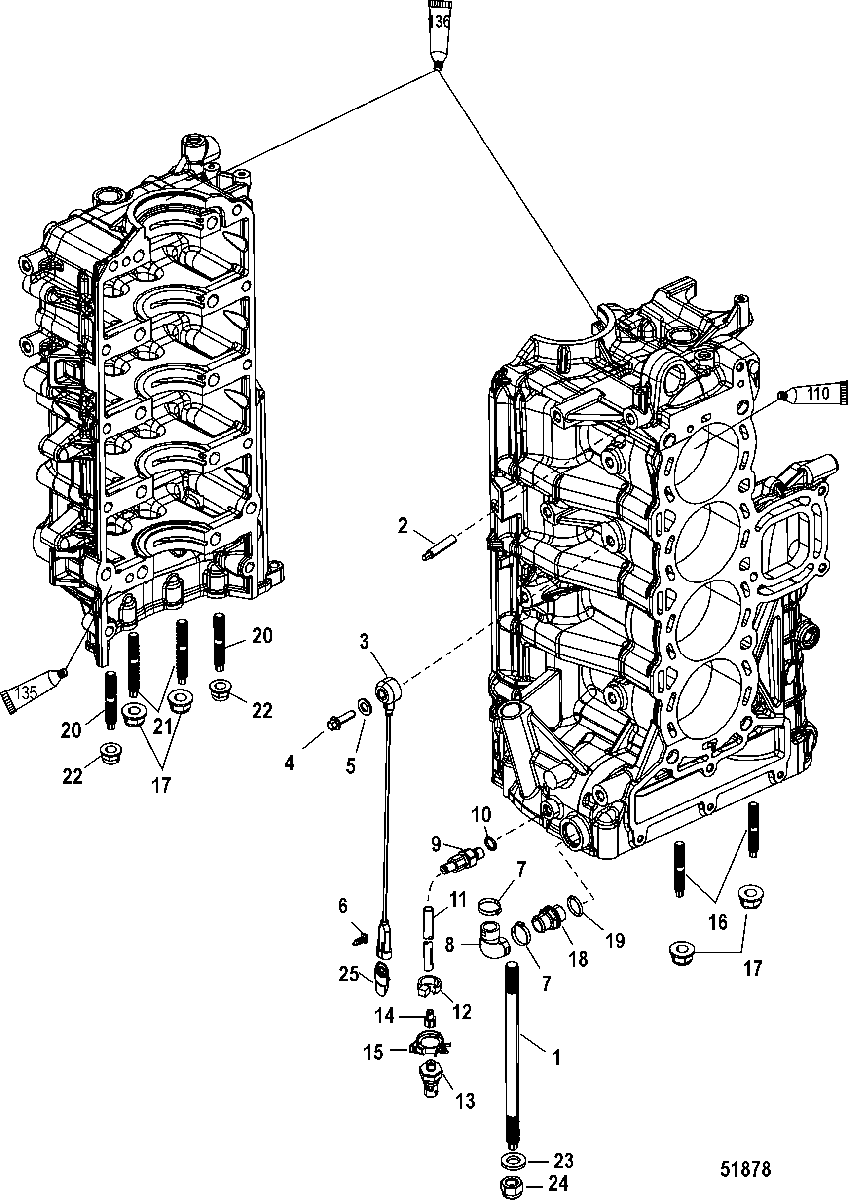

Port Cylinder Block Components для Mariner - 150 VERADO (4-STROKE)(4 CYL.) 0P514869 & Up

  • №
    Артикул
    Название
  • 1
    16-8M0022165 STUD, (M10 x 175)
    STUD, (M10 x 175)
  • 2
    16-8M0022162 STUD
    STUD
  • 3
    8M6003194 SENSOR ASSEMBLY, Knock
    SENSOR ASSEMBLY, Knock
  • 4
    10-8M0103830 SCREW, (M10 x 35)
    SCREW, (M10 x 35)
  • 5
    12-4002319 WASHER
    WASHER
  • 6
    54-828991T CLIP
    CLIP
  • 7
    54-888988008 CLAMP, (34.6 mm)
    CLAMP, (34.6 mm)
  • 8
    32-885544002 HOSE
    SN# 1B842419 & Below, 1B870105 THRU 1B870852
    HOSE
    SN# 1B842419 & Below, 1B870105 THRU 1B870852
  • 8
    32-8M0043736 HOSE
    SN# 1B842420 thru 1B870104, 1B870853 & Up
    HOSE
    SN# 1B842420 thru 1B870104, 1B870853 & Up
  • 9
    22-896094A01 FITTING ASSEMBLY
    FITTING ASSEMBLY
  • 10
    25-896699 O-RING, (1.78 mm x .08 mm)
    O-RING, (1.78 mm x .08 mm)
  • 11
    32-85978571 TUBING, (52.00 Inches Bulk), To Water Pressure Sensor (Cut to 21.5 Inches)
    TUBING, (52.00 Inches Bulk), To Water Pressure Sensor (Cut to 21.5 Inches)
  • 12
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 13
    881879T26 SENSOR ASSEMBLY, Pressure, Water
    SENSOR ASSEMBLY, Pressure, Water
  • 14
    22-892403 FITTING
    FITTING
  • 15
    54-883066 CLIP, (.865)
    CLIP, (.865)
  • 16
    16-8M0000274 STUD, (M8 x 49)
    STUD, (M8 x 49)
  • 17
    11-826365 NUT, (M8)
    NUT, (M8)
  • 18
    22-885517A05 FITTING ASSEMBLY
    FITTING ASSEMBLY
  • 19
    25-892077 O-RING
    O-RING
  • 20
    16-8M0022166 STUD, (M10 x 54)
    STUD, (M10 x 54)
  • 21
    16-8M0000275 STUD, (M8 x 55)
    STUD, (M8 x 55)
  • 22
    11-826292 NUT, (M10) Brass/Nickel Plated
    NUT, (M10) Brass/Nickel Plated
  • 23
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 24
    11-884412 NUT
    NUT
  • 25
    893388A02 CAP, Resitor - 2 Pin, 20K Ohm
    CAP, Resitor - 2 Pin, 20K Ohm
  • -
    27-896142A07 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    61-896499A08 LONG BLOCK ASSEMBLY
    LONG BLOCK ASSEMBLY
