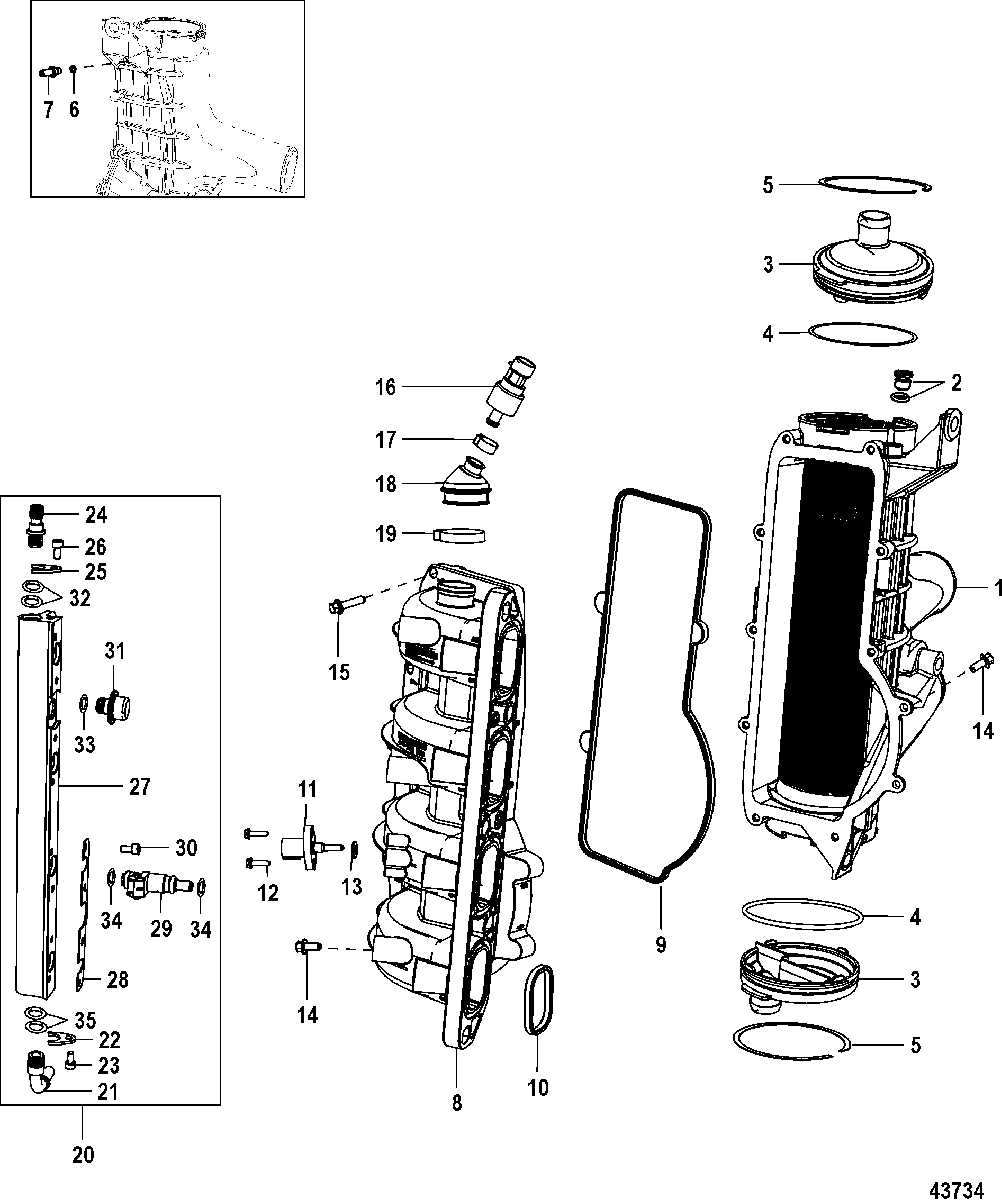

Charge Cooler/Intake Manifold(Gen II) End Cap Serviced для Mariner - 150 VERADO (4-STROKE)(4 CYL.) 0P514869 & Up

№

Артикул

Название
-

8M0131232 MODULE ASSEMBLY, Integrated Air Fuel
SN# 1B842420 thru 1B870104, 1B870853 & Up

MODULE ASSEMBLY, Integrated Air Fuel
SN# 1B842420 thru 1B870104, 1B870853 & Up

314 450 ₽
1

8M0132387 CAC ASSEMBLY

CAC ASSEMBLY

297 080 ₽
2

19-8M0048079 PLUG, Zero Leak (M8 x 1.0), Secondary Pressure

PLUG, Zero Leak (M8 x 1.0), Secondary Pressure

880 ₽
3

8M0046698 END CAP ASSEMBLY

END CAP ASSEMBLY

5 260 ₽
4

25-8M0039516 O-RING

O-RING

170 ₽
5

53-8M0039464 RING, Retaining

RING, Retaining

2 300 ₽
6

25-8M0040116 O-RING

O-RING

200 ₽
7

22-8M0039993 FITTING

FITTING

2 590 ₽
8

NSS NOT SOLD SEPARATE
INTAKE MANIFOLD

NOT SOLD SEPARATE
INTAKE MANIFOLD

0 ₽
9

26-896663 SEAL, Manifold to CAC

SEAL, Manifold to CAC

11 490 ₽
10

895020 SEAL, Manifold Head

SEAL, Manifold Head

5 840 ₽
11

891663001 SENSOR ASSEMBLY, Temperature

SENSOR ASSEMBLY, Temperature

33 600 ₽
12

10-895054 SCREW, (M4 x 16 MM)

SCREW, (M4 x 16 MM)

340 ₽
13

25-892317001 O-RING

O-RING

2 060 ₽
14

10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to Manifold

SCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to Manifold

200 ₽
14

10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel, CAC to Manifold

SCREW, (M6 x 16 MM) Stainless Steel, CAC to Manifold

200 ₽
15

10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel, Manifold to CAC

SCREW, (M6 x 25 MM) Stainless Steel, Manifold to CAC

190 ₽
16

8M6000639 SENSOR

SENSOR

17 310 ₽
17

54-13791 CLAMP, (15.7 mm)

CLAMP, (15.7 mm)

150 ₽
18

8M0041053 BOOT, MAP Sensor

BOOT, MAP Sensor

2 960 ₽
19

54-888988001 CLAMP, (36.1 mm)

CLAMP, (36.1 mm)

370 ₽
20

8M0129470 FUEL RAIL ASSEMBLY

FUEL RAIL ASSEMBLY

0 ₽
21

32-8M0047054 TUBE KIT, Fuel Inlet

TUBE KIT, Fuel Inlet

8 680 ₽
22

8M0041097 BRACKET

BRACKET

1 860 ₽
23

10-8M0041100 SCREW, (M5 x 10)

SCREW, (M5 x 10)

3 110 ₽
24

8M0047053 VALVE KIT, Shrader

VALVE KIT, Shrader

10 770 ₽
25

8M0041097 BRACKET

BRACKET

1 860 ₽
26

10-8M0041100 SCREW, (M5 x 10)

SCREW, (M5 x 10)

3 110 ₽
27

NSS NOT SOLD SEPARATE, FUEL RAIL

NOT SOLD SEPARATE, FUEL RAIL

0 ₽
28

8M0041096 BRACKET, Fuel Injector Mounting

BRACKET, Fuel Injector Mounting

2 800 ₽
29

8M0041571 INJECTOR ASSEMBLY, Fuel

INJECTOR ASSEMBLY, Fuel

18 930 ₽
30

10-8M0041100 SCREW, (M5 x 10)

SCREW, (M5 x 10)

3 110 ₽
31

8M0041101 DAMPER

DAMPER

14 370 ₽
-

8M0047056 O-RING KIT

O-RING KIT

0 ₽
32

NSS NOT SOLD SEPARATE, O-RING, Schrader Valve

NOT SOLD SEPARATE, O-RING, Schrader Valve

0 ₽
33

25-851889 O-RING, Damper

O-RING, Damper

1 020 ₽
34

25-851889 O-RING, Fuel Injector

O-RING, Fuel Injector

1 020 ₽
35

NSS NOT SOLD SEPARATE, O-RING, Tube

NOT SOLD SEPARATE, O-RING, Tube

0 ₽
