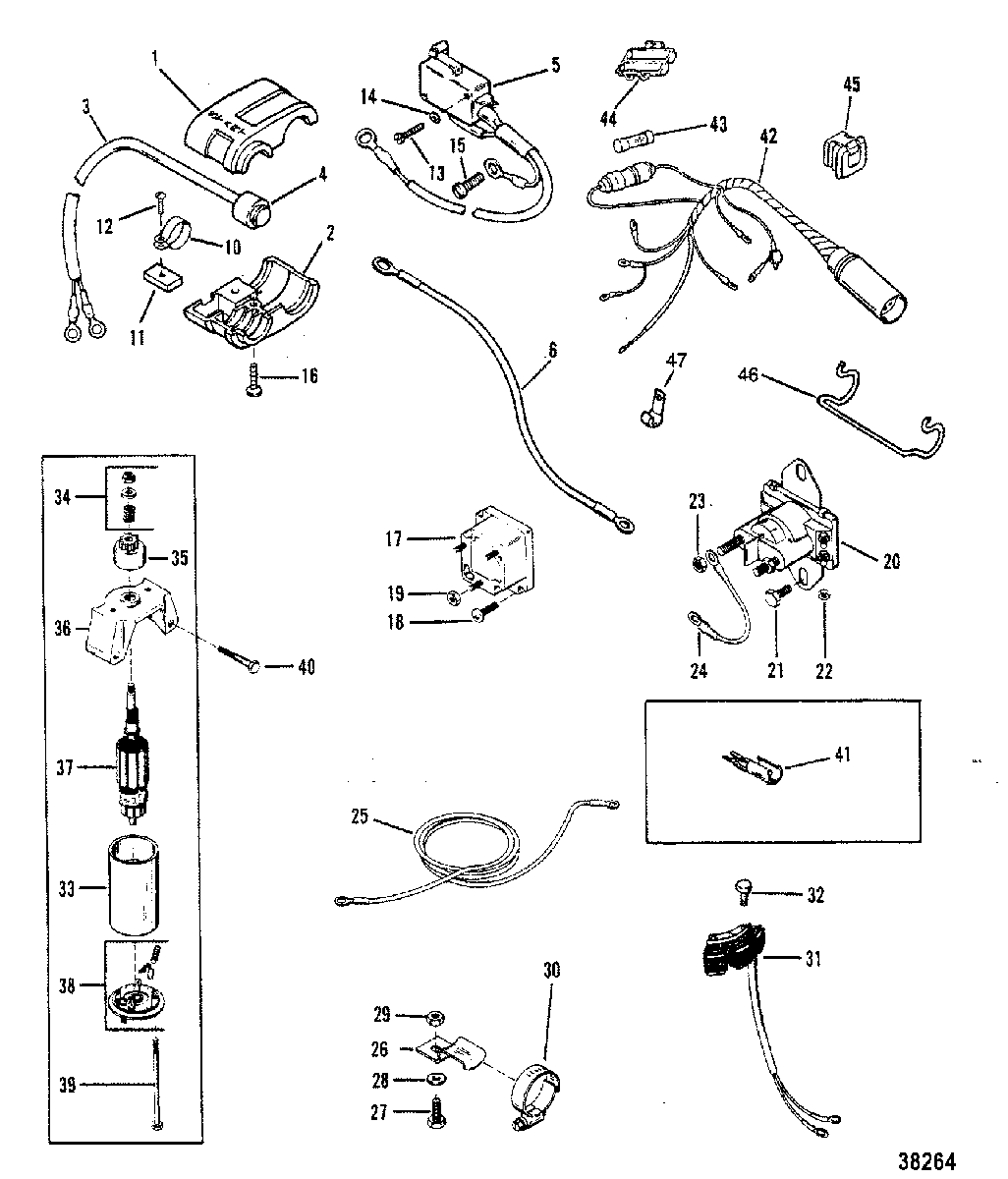

ELECTRIC COMPONENTS для Mariner - 15 9542620 THRU 9792199

  • №
    Артикул
    Название
  • 1
    95815 COVER (TOP)
    COVER (TOP)
  • 2
    95828 COVER (BOTTOM)
    COVER (BOTTOM)
  • 3
    87-95810A1 SWITCH ASSEMBLY, Start
    SWITCH ASSEMBLY, Start
  • 4
    55741001 BOOT
    BOOT
  • 5
    87-88890A2 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 6
    84-79139A20 CABLE ASSEMBLY (RED)
    CABLE ASSEMBLY (RED)
  • 10
    95814 STRAP
    STRAP
  • 11
    95813 FASTENER
    FASTENER
  • 12
    10-40019108 SCREW, (M5 x 20)
    SCREW, (M5 x 20)
  • 13
    10-4005727 SCREW
    SCREW
  • 14
    12-45771 WASHER
    WASHER
  • 15
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 16
    10-69570 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 17
    8M0058226 RECTIFIER
    RECTIFIER
  • 18
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 19
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 20
    89-96054T SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 21
    10-4000327 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 22
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 23
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 24
    84-88809A5 WIRE ASSEMBLY (YELLOW)
    WIRE ASSEMBLY (YELLOW)
  • 25
    84-88439A27 CABLE ASSEMBLY, Battery (RED)
    CABLE ASSEMBLY, Battery (RED)
  • 25
    84-88439A28 CABLE ASSEMBLY, Battery (BLACK)
    CABLE ASSEMBLY, Battery (BLACK)
  • 26
    92439 BRACKET (OLD DESIGN)
    BRACKET (OLD DESIGN)
  • 27
    10-4000327 SCREW, (M6 x 14) (OLD DESIGN)
    SCREW, (M6 x 14) (OLD DESIGN)
  • 28
    12-35044 WASHER, (.281 x .625 x .065) Stainless Steel (OLD DESIGN)
    WASHER, (.281 x .625 x .065) Stainless Steel (OLD DESIGN)
  • 29
    11-400212 NUT, (M6) Stainless Steel (OLD DESIGN)
    NUT, (M6) Stainless Steel (OLD DESIGN)
  • 30
    54-815504310 CLAMP, Worm Gear (OLD DESIGN)
    CLAMP, Worm Gear (OLD DESIGN)
  • 31
    86704A10 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 32
    10-4000123 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 33
    50-8M0033984 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 34
    96561 DRIVE KIT
    DRIVE KIT
  • 35
    96562 DRIVE
    DRIVE
  • 36
    96563T END CAP
    END CAP
  • 37
    96565 ARMATURE
    ARMATURE
  • 38
    96564T END CAP
    END CAP
  • 39
    10-96566 THRU BOLT
    THRU BOLT
  • 40
    10-421251 SCREW, (M8 x 55)
    SCREW, (M8 x 55)
  • 41
    424291 RETAINER
    RETAINER
  • 42
    84-12334A2 HARNESS ASSEMBLY, Engine Wiring
    (REMOTE CONTROL MODELS)
    HARNESS ASSEMBLY, Engine Wiring
    (REMOTE CONTROL MODELS)
  • 43
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 44
    134731 HOLDER, Fuse (OLD DESIGN)
    HOLDER, Fuse (OLD DESIGN)
  • 45
    12152 RETAINER
    RETAINER
  • 46
    92753 RETAINER
    RETAINER
  • 47
    54-55098 J CLIP
    J CLIP
