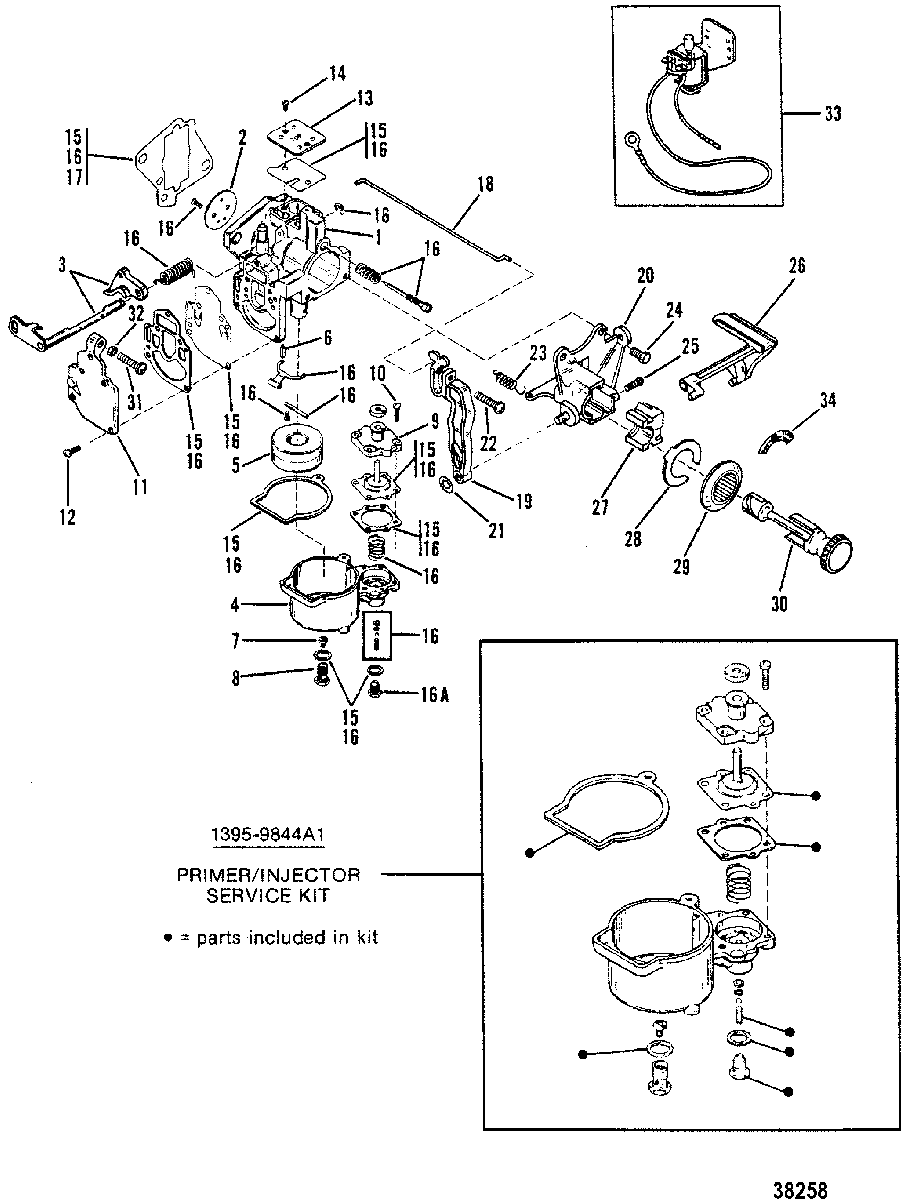

CARBURETOR(WMC5A/WMC5B/WMC7/WMC7A/WMC19/WMC19A) для Mariner - 15 9542620 THRU 9792199
-
№АртикулНазвание
-
11392-9503A5 CARBURETOR ASSEMBLY
(6)CARBURETOR ASSEMBLY
(6) -
11392-9266T22 CARBURETOR ASSEMBLY
(8)CARBURETOR ASSEMBLY
(8) -
11392-8846A24 CARBURETOR ASSEMBLY
(9.9)CARBURETOR ASSEMBLY
(9.9) -
21395-9473 VALVE, ThrottleVALVE, Throttle
-
31395-804707 SHAFT, ThrottleSHAFT, Throttle
-
41395-9164 BOWL, FuelBOWL, Fuel
-
51395-91691 FLOATFLOAT
-
61395-803861 VALVE, INLET NEEDLEVALVE, INLET NEEDLE
-
71395-9548 JET, MAIN FUEL (.039)
(6)JET, MAIN FUEL (.039)
(6) -
71399-5317 JET, (.046), MAIN FUEL
(8)JET, (.046), MAIN FUEL
(8) -
71399-5213 JET, Main (.056)
(9.9)JET, Main (.056)
(9.9) -
81395-9171 PLUG, JET RETAINERPLUG, JET RETAINER
-
9813618 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
101395-9697 SCREW, DIAPHRAGM COVERSCREW, DIAPHRAGM COVER
-
111395-9702 COVER/FUEL PUMP KIT
Kit includes: screws, nut, bearing, cover,body asy, gasket, spring and diaphragm.COVER/FUEL PUMP KIT
Kit includes: screws, nut, bearing, cover,body asy, gasket, spring and diaphragm. -
121395-9173 SCREW, FUEL PUMP COVERSCREW, FUEL PUMP COVER
-
131395-9177 PLATE, COVERPLATE, COVER
-
141395-9696 SCREW, COVER PLATESCREW, COVER PLATE
-
151395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
161395-96481 REPAIR PARTS KITREPAIR PARTS KIT
-
16A1395-9762 PLUGPLUG
-
1727-192061 GASKET, CarburetorGASKET, Carburetor
-
18445541 IDLE WIREIDLE WIRE
-
19128053 LEVER, Fast IdleLEVER, Fast Idle
-
2012803 BRACKET, PrimerBRACKET, Primer
-
2111-821979 PUSH NUT, FAST IDLE LEVERPUSH NUT, FAST IDLE LEVER
-
2210-12110 SCREW, (#6-32 x .750), FAST IDLE LEVERSCREW, (#6-32 x .750), FAST IDLE LEVER
-
2324-11277 SPRING, TensionSPRING, Tension
-
2410-40056110 SCREW, (M5 x 30), PRIMER BRACKETSCREW, (M5 x 30), PRIMER BRACKET
-
2510-79965 SCREW, (#8-32 x .500) Stainless Steel, PRIMER BRACKETSCREW, (#8-32 x .500) Stainless Steel, PRIMER BRACKET
-
26112731 LEVER, PrimerLEVER, Primer
-
2711280 CAM BLOCKCAM BLOCK
-
2853-11278 CLIP, RetainingCLIP, Retaining
-
2912804A1 BEZEL ASSEMBLY, ChokeBEZEL ASSEMBLY, Choke
-
30128022 KNOB, PRIMERKNOB, PRIMER
-
3110-40056110 SCREW, (M5 x 30), STOP-CARBURETORSCREW, (M5 x 30), STOP-CARBURETOR
-
3211-400211 NUT, (M5) Stainless Steel, STOP CREWNUT, (M5) Stainless Steel, STOP CREW
-
331395-823433 CHOKE, ElectricCHOKE, Electric
-
3437-129701 DECAL (SLOW/FAST)DECAL (SLOW/FAST)
-
-27-42364A92 GASKET SETGASKET SET
