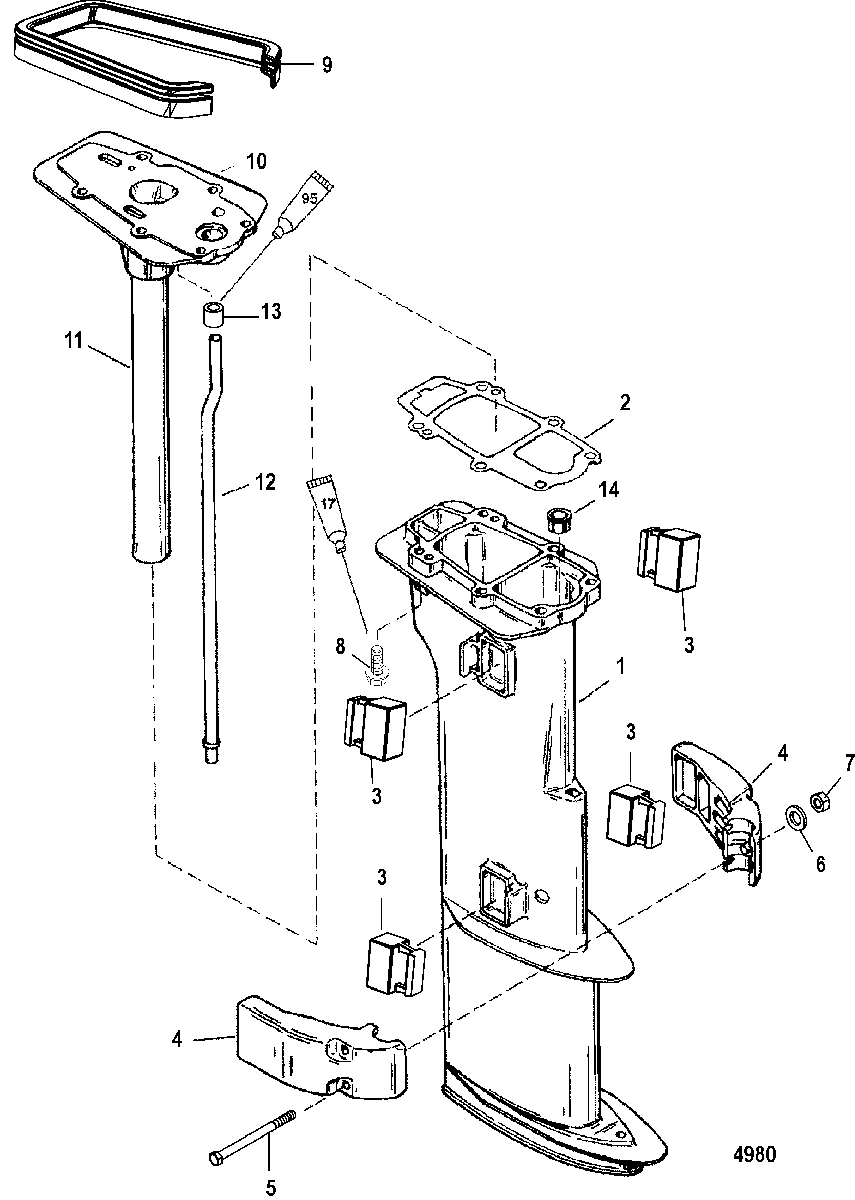

Driveshaft Housing для Mariner - 15 MARATHON 0G760300 THRU 0T979999

  • №
    Артикул
    Название
  • 1
    1596-822154A1 HOUSING ASSEMBLY
    (Short) (Black)
    HOUSING ASSEMBLY
    (Short) (Black)
  • 1
    1597-822155A1 HOUSING ASSEMBLY
    (Long) (Black)
    HOUSING ASSEMBLY
    (Long) (Black)
  • 2
    27-195992 GASKET, Driveshaft Housing
    GASKET, Driveshaft Housing
  • 3
    8M0039074 MOUNT
    MOUNT
  • 4
    42374F6 COVER, Mount
    (Black)
    COVER, Mount
    (Black)
  • 5
    10-4009238 SCREW, (M6 x 80)
    SCREW, (M6 x 80)
  • 6
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 7
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 8
    10-1993735 SCREW, (M6 x 35 MM)
    SCREW, (M6 x 35 MM)
  • 9
    26-11287001 SEAL, Adapter Plate
    SEAL, Adapter Plate
  • 10
    8M0036855 ADAPTOR PLATE
    (Without Exhaust Tube)
    ADAPTOR PLATE
    (Without Exhaust Tube)
  • 10
    41344T6 ADAPTOR PLATE ASSEMBLY
    (With Exhaust Tube)
    ADAPTOR PLATE ASSEMBLY
    (With Exhaust Tube)
  • 11
    NSS NOT SOLD SEPARATE (Exhaust Tube)
    NOT SOLD SEPARATE (Exhaust Tube)
  • 12
    32-881203A1 TUBE ASSEMBLY, Water
    (Short)
    TUBE ASSEMBLY, Water
    (Short)
  • 12
    32-881203A2 TUBE ASSEMBLY, Water
    (Long)
    TUBE ASSEMBLY, Water
    (Long)
  • 13
    26-42380001 SEAL
    SEAL
  • 14
    445551 BLOCK, Bearing
    (Long)
    BLOCK, Bearing
    (Long)
  • -
    27-42364A92 GASKET SET, Engine
    GASKET SET, Engine
