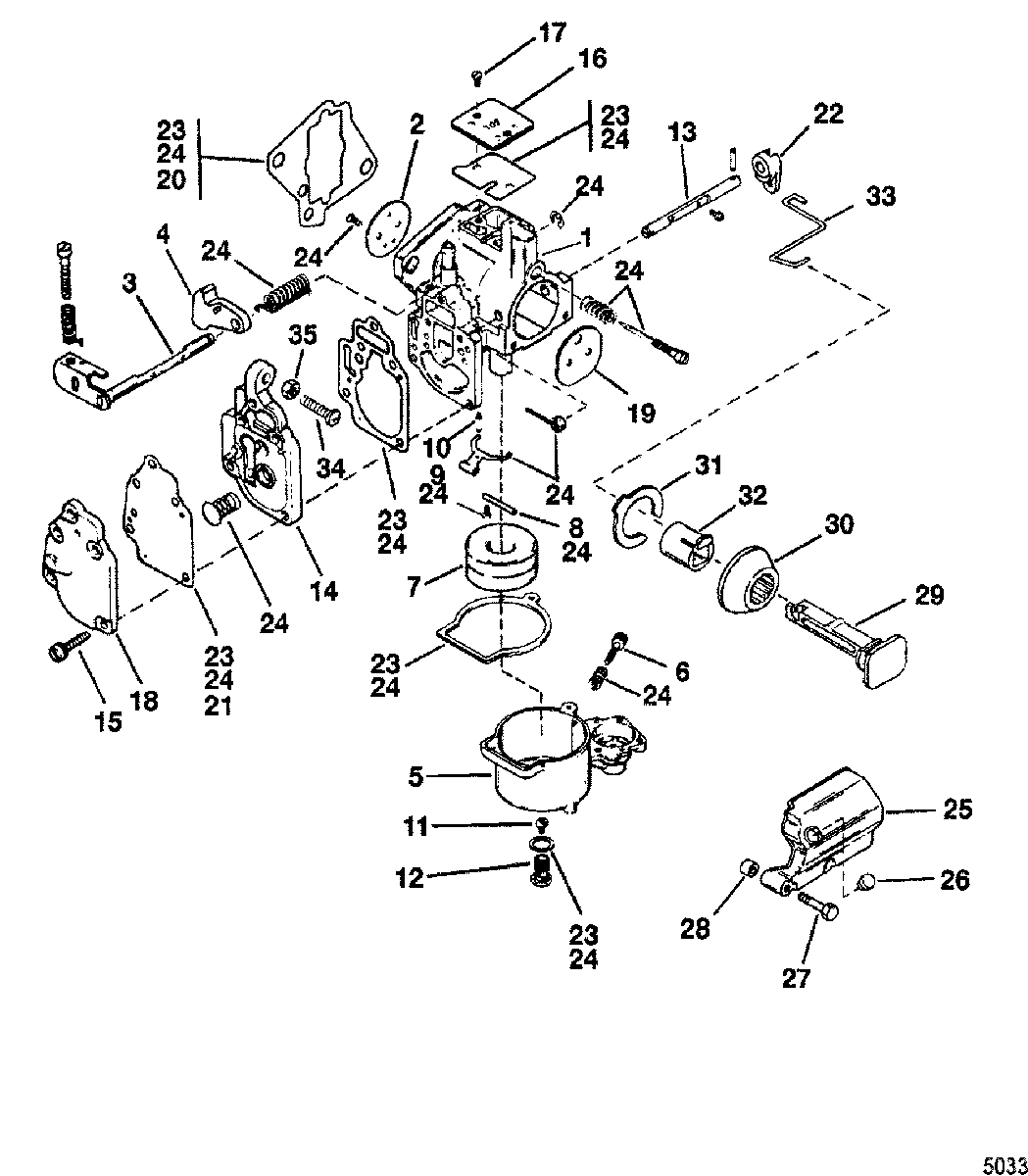

Carburetor(Seapro/Marathon 10 and 15) для Mariner - 15 MARATHON 0G760300 THRU 0T979999
-
№АртикулНазвание
-
11392-817404T09 CARBURETOR, (WMC-50B) (Seapro/Marathon 10)CARBURETOR, (WMC-50B) (Seapro/Marathon 10)
-
11392-817404T09 CARBURETOR, (WMC-82A) (Seapro/Marathon 10)CARBURETOR, (WMC-82A) (Seapro/Marathon 10)
-
11392-851908T06 CARBURETOR (WMC-55A-Seapro/Marthon 15)CARBURETOR (WMC-55A-Seapro/Marthon 15)
-
11392-851908T06 CARBURETOR, (WMC-60) (Seapro/Marathon 15)CARBURETOR, (WMC-60) (Seapro/Marathon 15)
-
11392-851908T06 CARBURETOR, (WMC-84A), Seapro/Marathon 15)CARBURETOR, (WMC-84A), Seapro/Marathon 15)
-
21395-823716 VALVE, Throttle
(WMC-55A/60/84)VALVE, Throttle
(WMC-55A/60/84) -
2815133 VALVE, Throttle
(WMC-50B/82)VALVE, Throttle
(WMC-50B/82) -
319267 SHAFT, Throttle (Includes Screw and Spring)
(WMC-55A/60/84)SHAFT, Throttle (Includes Screw and Spring)
(WMC-55A/60/84) -
3813022 SHAFT, Throttle (Includes Screw and Spring)
(WMC-50B/82)SHAFT, Throttle (Includes Screw and Spring)
(WMC-50B/82) -
4NSS NOT SOLD SEPARATE (Throttle Lever)NOT SOLD SEPARATE (Throttle Lever)
-
51395-811353 BOWL, FuelBOWL, Fuel
-
61395-811360 SCREW, Bowl DrainSCREW, Bowl Drain
-
71395-91691 FLOATFLOAT
-
8F10064 SHAFTSHAFT
-
91395-5902 SCREW, (#6-32 x .187)SCREW, (#6-32 x .187)
-
101395-803861 VALVE, Inlet NeedleVALVE, Inlet Needle
-
111395-6359 JET, (.052)
(WMC-50B/82)JET, (.052)
(WMC-50B/82) -
111395-6207 JET, (.072)
(WMC-55A/60/84)JET, (.072)
(WMC-55A/60/84) -
121395-9171 PLUGPLUG
-
131395-8113541 SHAFT, ChokeSHAFT, Choke
-
141395-9702 BODYBODY
-
151395-9643 SCREWSCREW
-
161395-9699 PLATEPLATE
-
171395-9696 SCREWSCREW
-
181395-9637 COVER
SN# 0T668555 & BelowCOVER
SN# 0T668555 & Below -
181395-96371 COVER, Fuel Pump
SN# 0T668554 & UpCOVER, Fuel Pump
SN# 0T668554 & Up -
191395-811806 VALVE, ChokeVALVE, Choke
-
2027-192061 GASKET, CarburetorGASKET, Carburetor
-
211395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
221395-811805 LEVER, ChokeLEVER, Choke
-
231395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
241395-8237072 REPAIR KITREPAIR KIT
-
25174421 COVER, CarburetorCOVER, Carburetor
-
2619-47579 PLUGPLUG
-
2710-40011110 SCREW, (M5 x 30) Stainless SteelSCREW, (M5 x 30) Stainless Steel
-
2841750T INSERTINSERT
-
29817424 KNOB, ChokeKNOB, Choke
-
3012804A1 BEZEL ASSEMBLY, ChokeBEZEL ASSEMBLY, Choke
-
3153-11278 CLIP, RetainingCLIP, Retaining
-
32817426 INSERT, Choke BezelINSERT, Choke Bezel
-
33817425 LINK, ChokeLINK, Choke
-
3410-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
3511-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
-
-19072T97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
