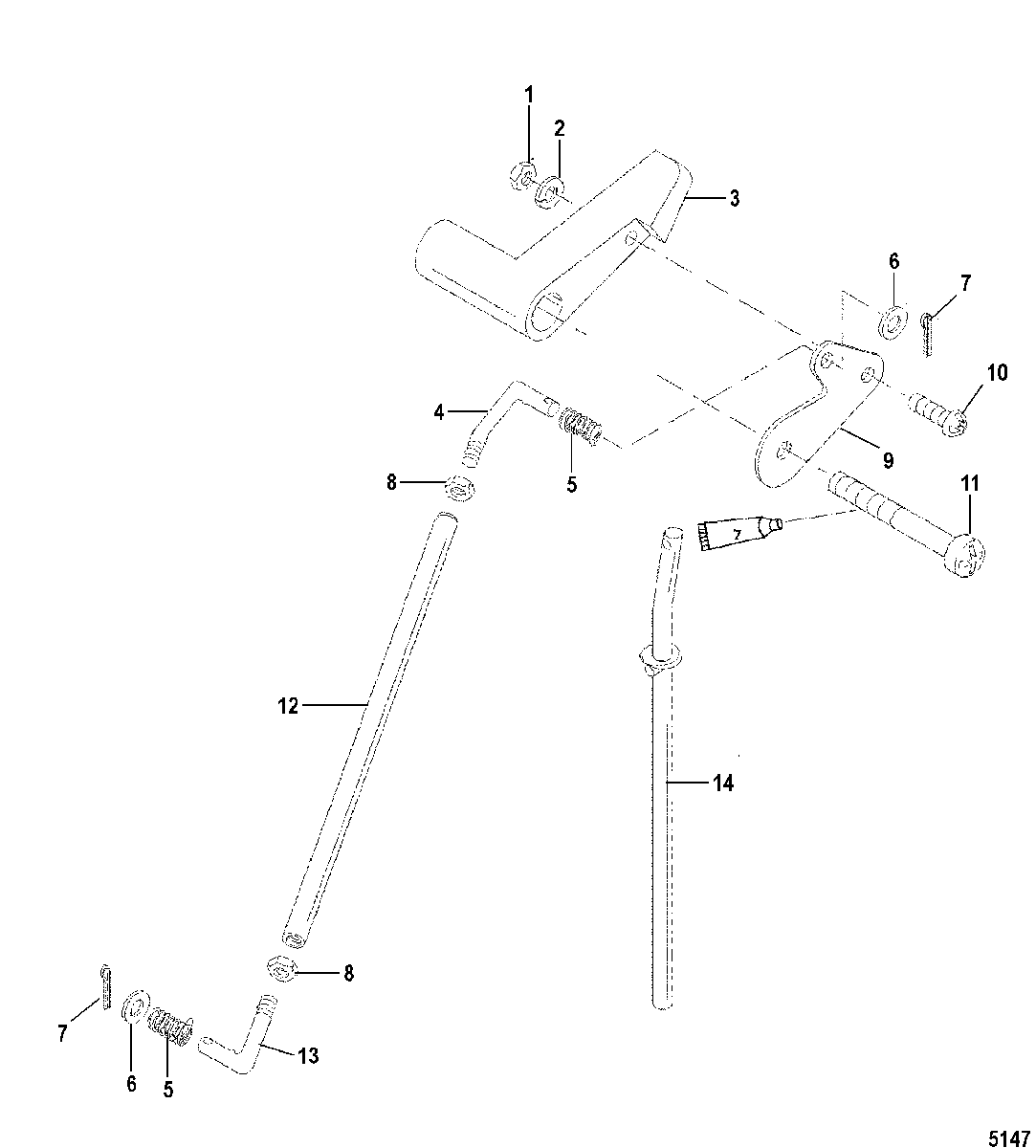

Jet Linkage для Mariner - 15 MARATHON XD 0P017000 THRU 0P325499

  • №
    Артикул
    Название
  • 1
    11-87599 NUT
    NUT
  • 2
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 3
    8239522 SHIFT HANDLE
    SHIFT HANDLE
  • 4
    828251 ROD END
    ROD END
  • 5
    24-828252 SPRING
    SPRING
  • 6
    12-846673 WASHER, (.265 x .500 x .060) Stainless Steel
    WASHER, (.265 x .500 x .060) Stainless Steel
  • 7
    18-56206 COTTER PIN
    COTTER PIN
  • 8
    11-29598 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 9
    828253 LEVER, Shift
    LEVER, Shift
  • 10
    10-828254 SCREW, (#10-32 x .750)
    SCREW, (#10-32 x .750)
  • 11
    10-828255 SCREW, (#10-32 x 2.50)
    SCREW, (#10-32 x 2.50)
  • 12
    828256 SHIFT ROD
    SHIFT ROD
  • 13
    828257 ROD END
    ROD END
  • 14
    828258 TILT LATCH ROD
    TILT LATCH ROD
