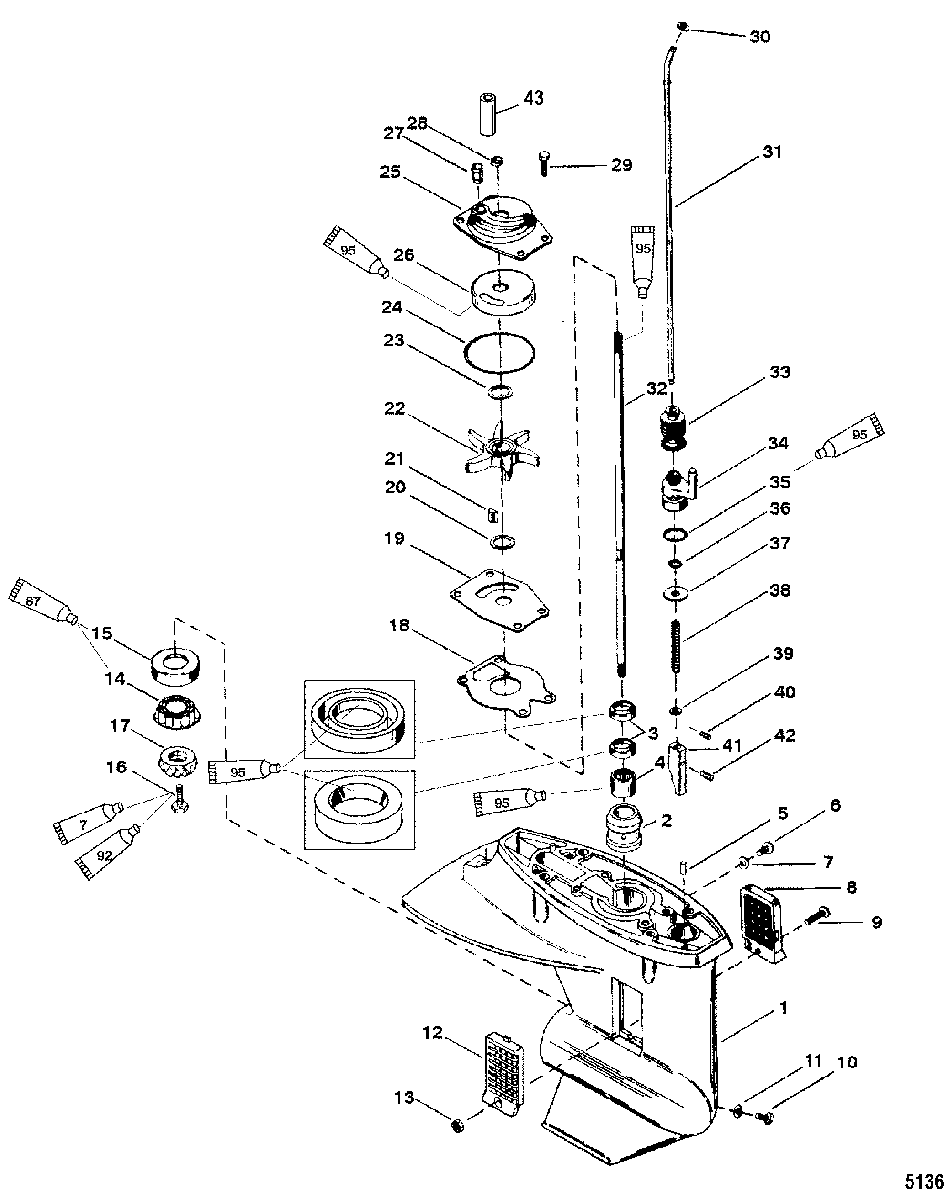

Gear Housing(Driveshaft) (2.25:1 Gear Ratio) для Mariner - 15 MARATHON XD 0P017000 THRU 0P325499

  • №
    Артикул
    Название
  • -
    1665-8669T26 GEAR HOUSING ASSEMBLY
    (Short - Black)
    GEAR HOUSING ASSEMBLY
    (Short - Black)
  • -
    1665-8669T28 GEAR HOUSING ASSEMBLY
    (Long - Black)
    GEAR HOUSING ASSEMBLY
    (Long - Black)
  • 1
    1600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Black
    (Black)
    GEAR HOUSING ASSEMBLY, Basic-Black
    (Black)
  • 2
    41121 SLEEVE
    SLEEVE
  • 3
    26-99325 SEAL
    SEAL
  • 4
    31-41326 BEARING, Roller
    BEARING, Roller
  • 5
    17-8M0084726 PIN, Dowel (.187 x .530)
    PIN, Dowel (.187 x .530)
  • 6
    10-79953Q04 SCREW KIT, (.375-16 x .250) Drain
    SCREW KIT, (.375-16 x .250) Drain
  • 7
    12-191833 WASHER
    WASHER
  • 8
    35-41133 SCREEN, Water Inlet Port
    SCREEN, Water Inlet Port
  • 9
    10-40031112 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 10
    10-79953Q04 SCREW KIT, (.375-16 x .250) Drain
    SCREW KIT, (.375-16 x .250) Drain
  • 10
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 11
    12-191833 WASHER
    WASHER
  • 12
    35-41134 SCREEN
    SCREEN
  • 13
    11-401365 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 14
    31-98294A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 15
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 16
    10-49908 SCREW, (.250-28 x .750)
    SCREW, (.250-28 x .750)
  • 17
    43-98302 GEAR, Pinion (12 Teeth)
    GEAR, Pinion (12 Teeth)
  • 18
    27-993261 GASKET
    GASKET
  • 19
    85083 FACE PLATE
    FACE PLATE
  • 20
    12-866451 WASHER
    WASHER
  • 21
    28-8M0032838 KEY
    KEY
  • 22
    47-8508910 IMPELLER
    IMPELLER
  • 23
    12-866451 WASHER
    WASHER
  • 24
    25-69202 O-RING
    O-RING
  • 25
    46-99157A02 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 26
    NSS NOT SOLD SEPARATE, Insert
    NOT SOLD SEPARATE, Insert
  • 27
    26-85090001 SEAL
    SEAL
  • 28
    25-86203 O-RING, Rubber
    O-RING, Rubber
  • 29
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 30
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 31
    67-851263 SHIFT SHAFT
    (Short Shaft)
    SHIFT SHAFT
    (Short Shaft)
  • 31
    862933 SHIFT SHAFT
    (Long Shaft)
    SHIFT SHAFT
    (Long Shaft)
  • 32
    45-99199 DRIVESHAFT
    (Short Shaft)
    DRIVESHAFT
    (Short Shaft)
  • 32
    45-99198 DRIVESHAFT
    (Long Shaft)
    DRIVESHAFT
    (Long Shaft)
  • 33
    85552001 BOOT
    BOOT
  • 34
    93878 RETAINER
    RETAINER
  • 35
    25-35276 O-RING, (.734 x .139)
    (.734 x .139)
    O-RING, (.734 x .139)
    (.734 x .139)
  • 36
    25-85594 O-RING, (.239 x .174)
    (.239 x .174)
    O-RING, (.239 x .174)
    (.239 x .174)
  • 37
    12-85091 WASHER
    WASHER
  • 38
    24-93007 SPRING
    SPRING
  • 39
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 40
    17-85593 PIN, (.078 x .437)
    PIN, (.078 x .437)
  • 41
    85562A2 SHIFT CAM
    SHIFT CAM
  • 42
    17-85096 PIN, Drive
    PIN, Drive
  • 43
    23-29804T SLEEVE
    SLEEVE
  • -
    27-41499A88 GASKET SET
    GASKET SET
  • -
    26-85090A2 SEAL KIT
    SEAL KIT
  • -
    46-99157T2 PUMP KIT, Water
    PUMP KIT, Water
