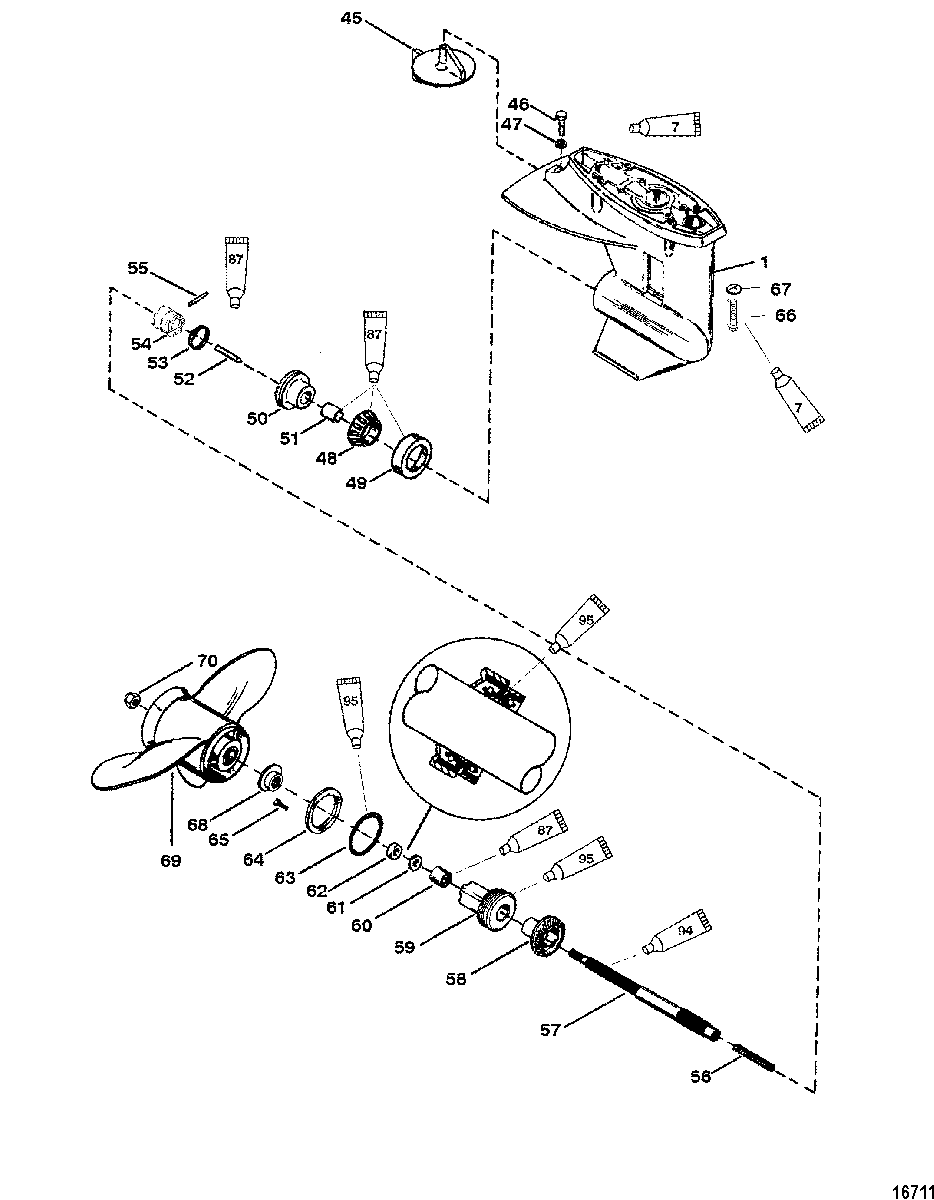

Gear Housing, Propeller Shaft - 2.42:1 Gear Ratio-Bigfoot для Mariner - 15 (4-STROKE) 1B227000 THRU 1B727495
-
№АртикулНазвание
-
-1665-8669T33 GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)
(Long)GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)
(Long) -
-1600-8M0084519 GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)
(X-Long)GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)
(X-Long) -
11600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-BlackGEAR HOUSING ASSEMBLY, Basic-Black
-
4597-98432Q6 TRIM TABTRIM TAB
-
4610-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
4712-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
4831-8M0103470 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
49NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
5043-854496A1 GEAR ASSEMBLY, Forward - 12/29GEAR ASSEMBLY, Forward - 12/29
-
5123-85557 BUSHINGBUSHING
-
5285094 FOLLOWER, CamFOLLOWER, Cam
-
5324-38114 SPRINGSPRING
-
5452-41040T1 CLUTCHCLUTCH
-
5517-8M0020999 PINPIN
-
5624-88680 SPRINGSPRING
-
5744-8166231 PROPELLER SHAFTPROPELLER SHAFT
-
5843-854497T GEAR, Reverse - 12/29GEAR, Reverse - 12/29
-
5999906T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6031-21739 BEARING, RollerBEARING, Roller
-
6126-41132 SEAL, Oil, InnerSEAL, Oil, Inner
-
6226-41131 SEAL, Oil, OuterSEAL, Oil, Outer
-
6325-85549 O-RINGO-RING
-
6487293 PLATEPLATE
-
6510-90883 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
6610-87810178 SCREW, (M10 x 35)SCREW, (M10 x 35)
-
6712-43328 WASHERWASHER
-
68858498 THRUST HUB ASSEMBLYTHRUST HUB ASSEMBLY
-
6948-19636A10 PROPELLERPROPELLER
-
7011-88228 PROP NUTPROP NUT
-
-26-85090A2 SEAL KITSEAL KIT
