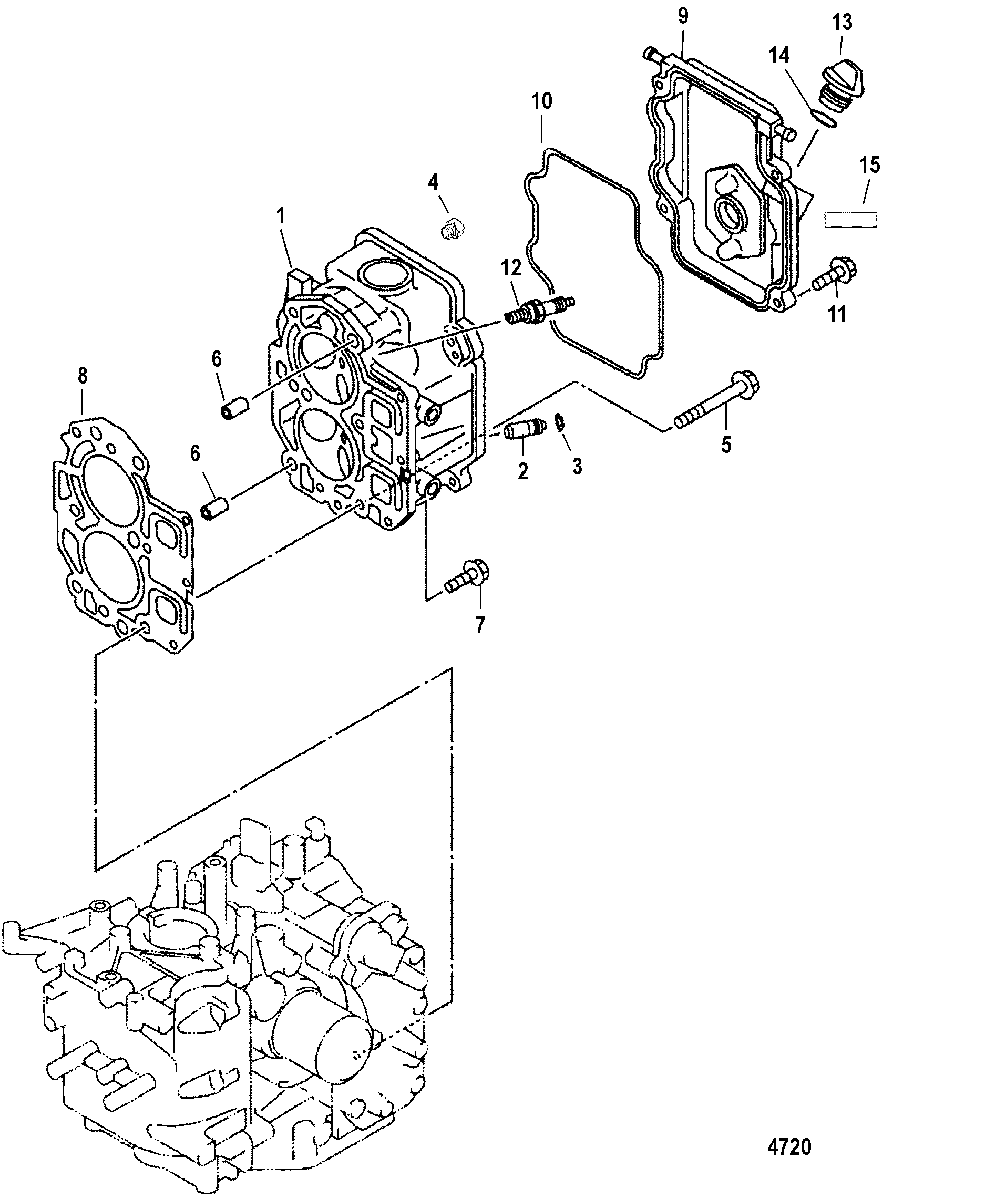

Cylinder Head для Mariner - 15 (4-STROKE) 1B227000 THRU 1B727495

  • №
    Артикул
    Название
  • 1
    900-835430A1 CYLINDER HEAD ASSEMBLY
    (Electric)(Use with 32mm Camshaft)
    CYLINDER HEAD ASSEMBLY
    (Electric)(Use with 32mm Camshaft)
  • 1
    900-835430A2 CYLINDER HEAD ASSEMBLY
    (Manual)(Use with 32mm Camshaft)
    CYLINDER HEAD ASSEMBLY
    (Manual)(Use with 32mm Camshaft)
  • 1
    835430T08 CYLINDER HEAD ASSEMBLY
    (Electric/Manual)(Use with 35mm Camshaft)
    CYLINDER HEAD ASSEMBLY
    (Electric/Manual)(Use with 35mm Camshaft)
  • 2
    850835 GUIDE, Intake
    GUIDE, Intake
  • 3
    53-825038 CIRCLIP
    CIRCLIP
  • 4
    22-822644 PIPE PLUG
    PIPE PLUG
  • 5
    10-855677 BOLT, (M8 x 78)
    BOLT, (M8 x 78)
  • 6
    17-825689 PIN, Dowel
    PIN, Dowel
  • 7
    10-893745025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 8
    27-8M0052705 GASKET
    GASKET
  • 9
    834954 COVER
    COVER
  • 10
    850837 SEAL
    SEAL
  • 11
    10-8257021 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 12
    33-827858Q SPARK PLUG, NGK-DPR6EA-9
    SPARK PLUG, NGK-DPR6EA-9
  • 13
    859578A1 PLUG ASSEMBLY, Oil
    PLUG ASSEMBLY, Oil
  • 14
    NSS NOT SOLD SEPARATE, O-Ring
    NOT SOLD SEPARATE, O-Ring
  • 15
    NSS NOT SOLD SEPARATE, Decal-recomm. Eng. Oil/Valve Cle.
    NOT SOLD SEPARATE, Decal-recomm. Eng. Oil/Valve Cle.
  • -
    802733A98 POWERHEAD ASSEMBLY
    (Electric)
    POWERHEAD ASSEMBLY
    (Electric)
  • -
    879783A01 POWERHEAD ASSEMBLY
    (Manual)
    POWERHEAD ASSEMBLY
    (Manual)
  • -
    27-835427A00 GASKET SET, Powerhead
    GASKET SET, Powerhead
