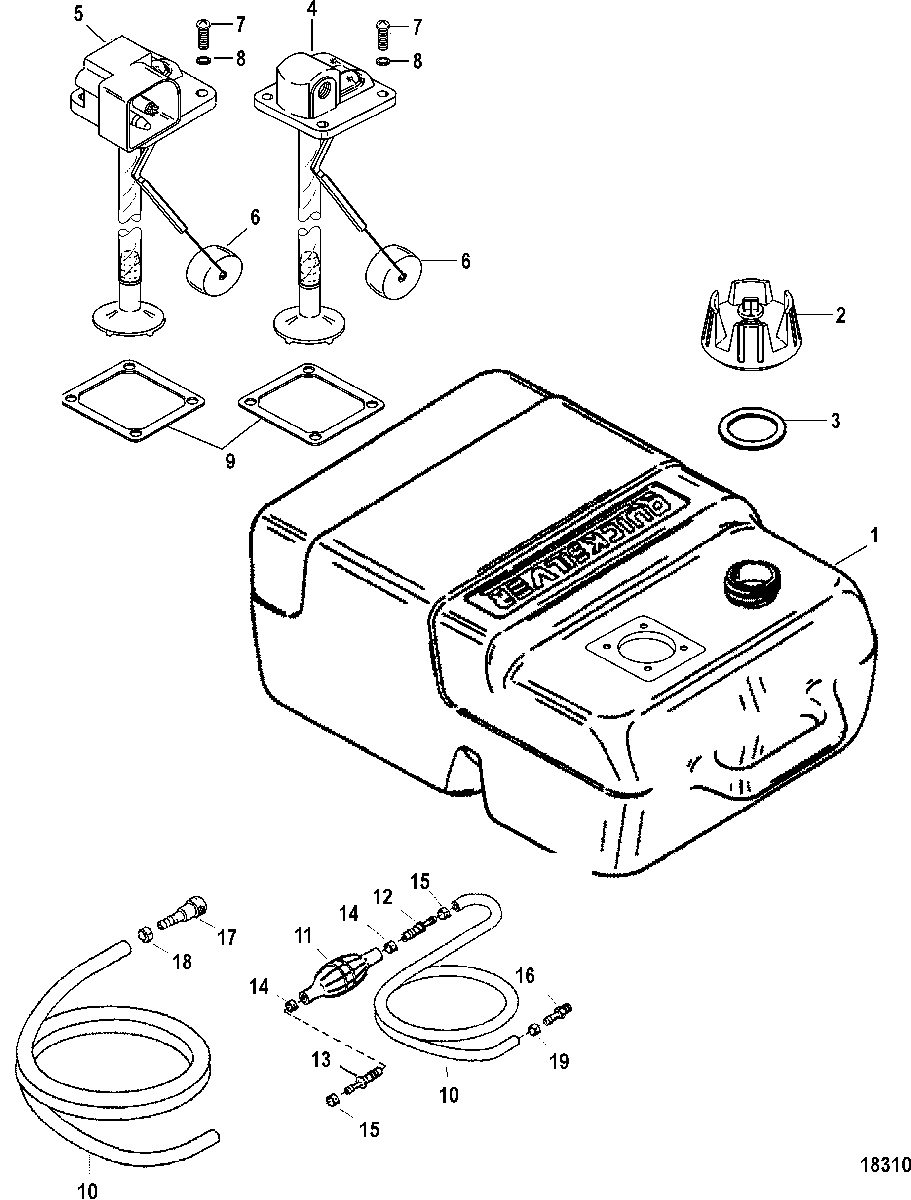

Fuel Tank(Plastic- 6.6 Gallon) для Mariner - 15 (2 CYL.) (International) 0N055285 & Up
-
№АртикулНазвание
-
11259-859063A1 TANK ASSEMBLY, Fuel (Threaded Connection)TANK ASSEMBLY, Fuel (Threaded Connection)
-
11259-859063A2 TANK ASSEMBLY, Fuel (Quick Connect)TANK ASSEMBLY, Fuel (Quick Connect)
-
236-816976Q1 CAP ASSEMBLY, Fuel-Manual VentCAP ASSEMBLY, Fuel-Manual Vent
-
327-8169771 GASKET, Fuel CapGASKET, Fuel Cap
-
4859059A2 PICK UP ASSEMBLY, Fuel (Threaded Connection)PICK UP ASSEMBLY, Fuel (Threaded Connection)
-
58M0084089 PICK UP ASSEMBLY, Fuel (Quick Connect)PICK UP ASSEMBLY, Fuel (Quick Connect)
-
6859056 FLOATFLOAT
-
710-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
812-859080 WASHERWASHER
-
927-859072 GASKETGASKET
-
1032-8M0126969 FUEL LINE ASSEMBLYFUEL LINE ASSEMBLY
-
1113330Q07 BULB ASSEMBLY, PrimerBULB ASSEMBLY, Primer
-
1221-13331A3 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
1321-13331A4 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
1454-4158210 CLAMP, NylonCLAMP, Nylon
-
1554-41582Q7 CLAMPCLAMP
-
1622-89771Q2 CONNECTOR, (.250-18)CONNECTOR, (.250-18)
-
1722-8M0120628 CONNECTOR, FuelCONNECTOR, Fuel
-
1854-853798 CLAMPCLAMP
-
1954-41582Q7 CLAMPCLAMP
