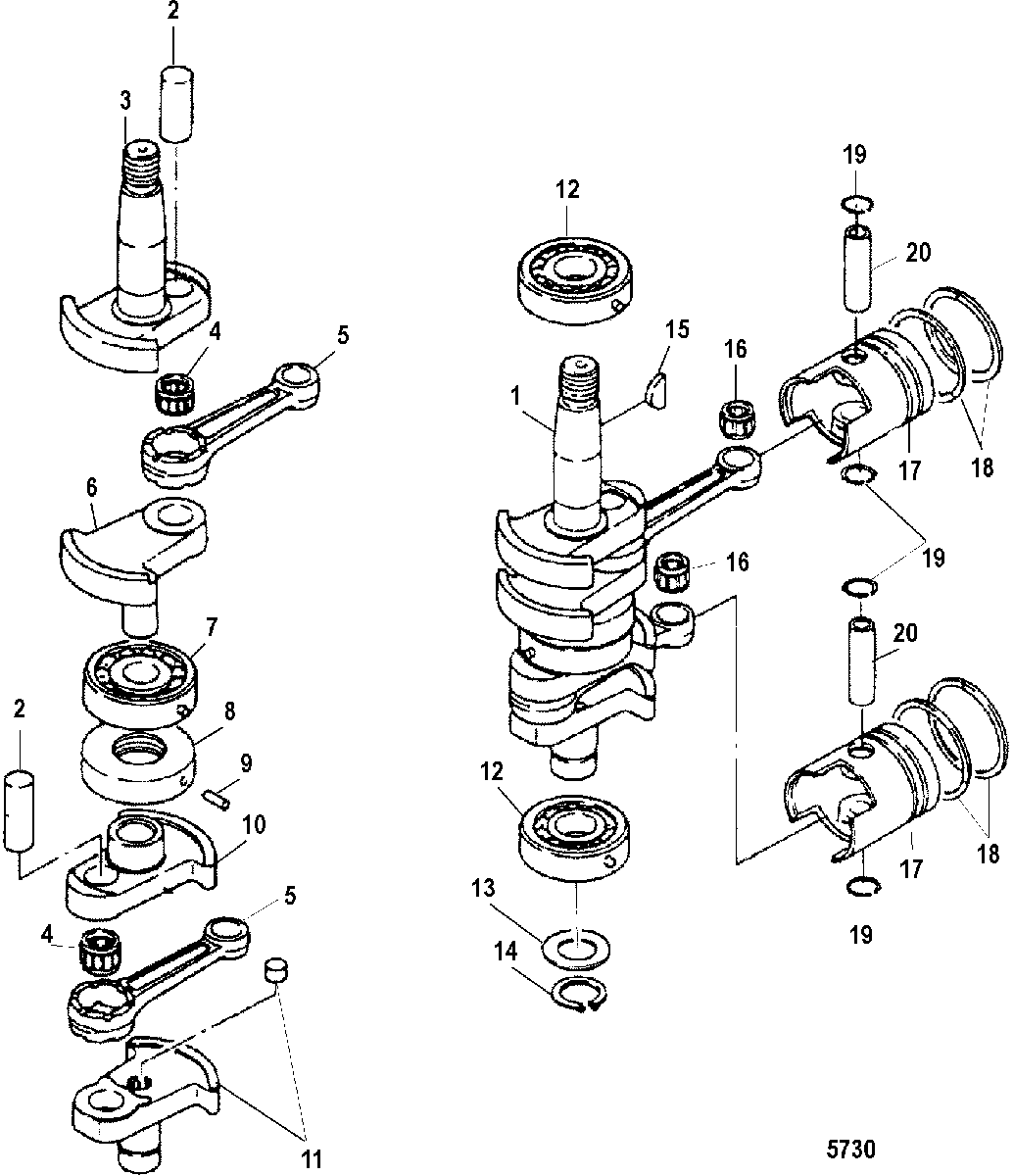

Crankshaft, Pistons and Connecting Rods для Mariner - 15 (2 CYL.) (International) 0N055285 & Up

  • №
    Артикул
    Название
  • 1
    8M0047749 CRANKSHAFT KIT
    CRANKSHAFT KIT
  • 2
    8M0074253 PIN, Crank
    PIN, Crank
  • 3
    474-803672A02 CRANKSHAFT, A
    CRANKSHAFT, A
  • 4
    31-803675 BEARING, Needle
    BEARING, Needle
  • 5
    629-803674T CONNECTING ROD
    CONNECTING ROD
  • 6
    474-8M0090845 CRANKSHAFT, B
    CRANKSHAFT, B
  • 7
    30-160494 BEARING, Ball
    BEARING, Ball
  • 8
    26-8036672 SEAL
    SEAL
  • 9
    17-161791 PIN
    PIN
  • 10
    474-8M0090846 CRANKSHAFT, C
    CRANKSHAFT, C
  • 11
    474-8036724 CRANKSHAFT, D
    CRANKSHAFT, D
  • 12
    30-160494 BEARING, Ball
    BEARING, Ball
  • 13
    23-853715 SPACER
    SPACER
  • 14
    53-853714 C CLIP
    C CLIP
  • 15
    28-160531 KEY
    KEY
  • 16
    31-16052 BEARING, Roller
    BEARING, Roller
  • 17
    700-8M0103788 PISTON ASSEMBLY
    (Standard)(9.9)
    PISTON ASSEMBLY
    (Standard)(9.9)
  • 17
    700-8M0103787 PISTON ASSEMBLY
    (0.5 Oversize)(9.9)
    PISTON ASSEMBLY
    (0.5 Oversize)(9.9)
  • 17
    700-8M0103789 PISTON ASSEMBLY
    (Standard)(15/18)
    PISTON ASSEMBLY
    (Standard)(15/18)
  • 17
    700-8M0103790 PISTON ASSEMBLY
    (0.5 Oversize)(15/18)
    PISTON ASSEMBLY
    (0.5 Oversize)(15/18)
  • 17
    700-8M0103788 PISTON
    (Standard)(9.9)
    PISTON
    (Standard)(9.9)
  • 17
    700-8M0103787 PISTON
    (0.5 Oversize)(9.9)
    PISTON
    (0.5 Oversize)(9.9)
  • 17
    700-8M0103789 PISTON
    (Standard)(15/18)
    PISTON
    (Standard)(15/18)
  • 17
    700-8M0065503 PISTON
    (0.5 Oversize)(15/18)
    PISTON
    (0.5 Oversize)(15/18)
  • 18
    39-8M0065495 RING SET, Piston
    (Standard)(9.9),Services whole engine
    RING SET, Piston
    (Standard)(9.9),Services whole engine
  • 18
    39-8M0065495 RING SET
    (Standard)(9.9),Services one piston
    RING SET
    (Standard)(9.9),Services one piston
  • 18
    39-8M0080353 RING SET, Piston
    (0.5 Oversize)(9.9),Services whole engine
    RING SET, Piston
    (0.5 Oversize)(9.9),Services whole engine
  • 18
    39-8M0080353 RING SET, Piston
    (0.5 Oversize)(9.9),Services one piston
    RING SET, Piston
    (0.5 Oversize)(9.9),Services one piston
  • 18
    39-8M0065496 RING SET, Piston
    (Standard)(15/18),Services whole engine
    RING SET, Piston
    (Standard)(15/18),Services whole engine
  • 18
    39-8M0065496 RING SET
    (Standard)(15/18),Services one piston
    RING SET
    (Standard)(15/18),Services one piston
  • 18
    39-8M0080352 RING SET, Piston
    (0.5 Oversize)(15/18),Services whole engine
    RING SET, Piston
    (0.5 Oversize)(15/18),Services whole engine
  • 18
    39-8M0080352 RING SET, Piston
    (0.5 Oversize)(15/18),Services one piston
    RING SET, Piston
    (0.5 Oversize)(15/18),Services one piston
  • 19
    53-16057 CLIP, Component of Piston Assy
    CLIP, Component of Piston Assy
  • 20
    41-803680002 PIN, Piston, Component of Piston Assy
    (15/18)
    PIN, Piston, Component of Piston Assy
    (15/18)
  • 20
    41-825713002 PIN, Piston, Component of Piston Assy
    (9.9)
    PIN, Piston, Component of Piston Assy
    (9.9)
  • -
    61-8M0141798 POWERHEAD ASSEMBLY
    (15/18)
    POWERHEAD ASSEMBLY
    (15/18)
  • -
    61-8M0133075 POWERHEAD ASSEMBLY
    (9.9)
    POWERHEAD ASSEMBLY
    (9.9)
