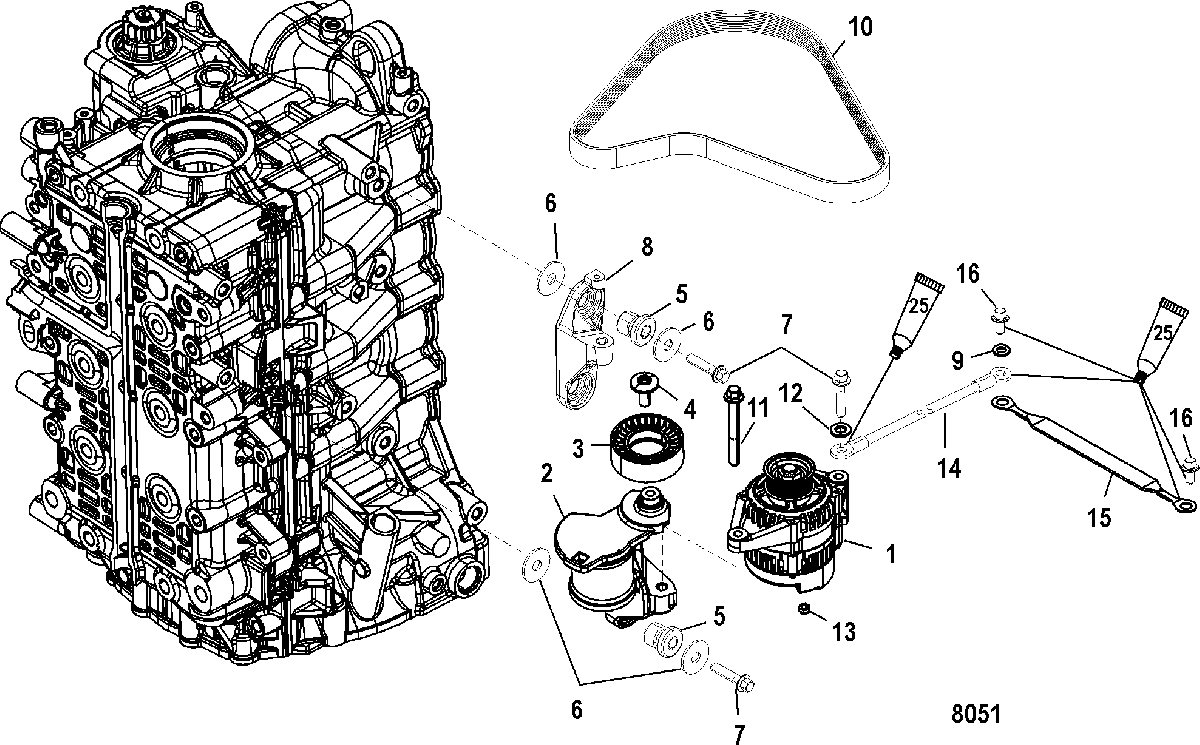

Alternator/Belt Tensioner Mounting для Mariner - 135 VERADO (4-STROKE)(4 CYL.) 0P464488 THRU 0P514868

  • №
    Артикул
    Название
  • 1
    892940T02 ALTERNATOR, 70 Ampere
    ALTERNATOR, 70 Ampere
  • 2
    8M0101707 BELT TENSIONER
    BELT TENSIONER
  • 3
    8M6003035 PULLEY
    PULLEY
  • 4
    10-885349501 SCREW
    SCREW
  • 5
    23-855729 MOUNT
    MOUNT
  • 6
    12-845998 WASHER, (.406 x 1.250 x .089)
    WASHER, (.406 x 1.250 x .089)
  • 7
    10-8M0103823 SCREW, (M10 x 45)
    SCREW, (M10 x 45)
  • 8
    88535303S BRACKET, Alternator
    BRACKET, Alternator
  • 9
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 10
    57-880566Q14 BELT, Drive
    BELT, Drive
  • 11
    10-8M0103824 SCREW, (M10 x 85)
    SCREW, (M10 x 85)
  • 12
    12-4002319 WASHER
    WASHER
  • 13
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 14
    84-856583A12 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 15
    84-858414A04 CABLE ASSEMBLY, Brass, Braided
    CABLE ASSEMBLY, Brass, Braided
  • 15
    84-858414A05 CABLE ASSEMBLY, Stainless Steel, Braided
    CABLE ASSEMBLY, Stainless Steel, Braided
  • 16
    10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel
    SCREW, (M6 x 16 MM) Stainless Steel
