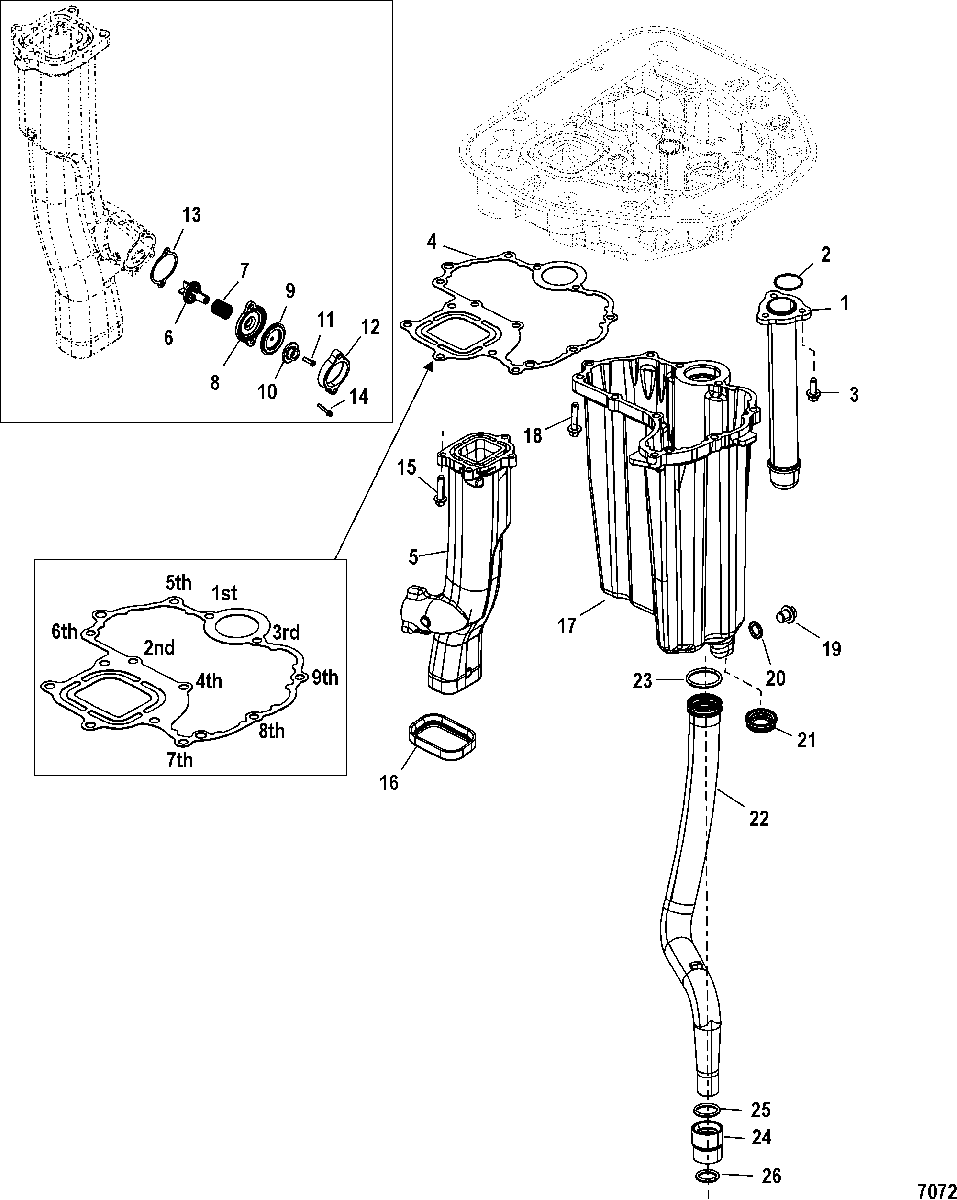

Adaptor Plate-Lower для Mariner - 135 VERADO (4-STROKE)(4 CYL.) 0P464488 THRU 0P514868

  • №
    Артикул
    Название
  • 1
    896241 TUBE, Oil Pickup
    TUBE, Oil Pickup
  • 2
    25-38780 O-RING
    O-RING
  • 3
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 4
    27-895822 GASKET, Oil Sump
    GASKET, Oil Sump
  • 5
    895825T01 TUBE ASSEMBLY, Exhaust
    TUBE ASSEMBLY, Exhaust
  • 6
    8M0114707 POPPET ASSEMBLY
    POPPET ASSEMBLY
  • 7
    24-64878 SPRING, (Black)
    SPRING, (Black)
  • 8
    893385001 RETAINER
    RETAINER
  • 9
    648771 DIAPHRAGM
    DIAPHRAGM
  • 10
    889706 WASHER
    WASHER
  • 11
    10-69570 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 12
    893384001 COVER, Poppet
    COVER, Poppet
  • 13
    27-889561 GASKET, Poppet
    GASKET, Poppet
  • 14
    10-88552535 SCREW, (M6 x 35 MM) Stainless Steel
    SCREW, (M6 x 35 MM) Stainless Steel
  • 15
    10-8M0103814 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 16
    26-880629 SEAL, Exhaust Tube
    SEAL, Exhaust Tube
  • 17
    895821T SUMP ASSEMBLY, Oil
    SUMP ASSEMBLY, Oil
  • 18
    10-8M0103808 SCREW, (M6 x 30 MM) Stainless Steel
    SCREW, (M6 x 30 MM) Stainless Steel
  • 19
    888592005 PLUG ASSEMBLY, Oil Drain
    PLUG ASSEMBLY, Oil Drain
  • 20
    26-888593 SEAL
    SEAL
  • 21
    896242 SEAL
    SEAL
  • 22
    32-896107A01 TUBE ASSEMBLY, Water
    (Long)
    TUBE ASSEMBLY, Water
    (Long)
  • 22
    32-896107A02 TUBE ASSEMBLY, Water
    (X-Long)
    TUBE ASSEMBLY, Water
    (X-Long)
  • 23
    25-892445 O-RING
    O-RING
  • 24
    22-887987A1 COUPLING
    COUPLING
  • 25
    25-90196 O-RING, (.921 x .139)
    O-RING, (.921 x .139)
  • 26
    25-21836 O-RING, (.796 x .139)
    O-RING, (.796 x .139)
  • -
    27-896142A07 GASKET SET, Powerhead
    GASKET SET, Powerhead
