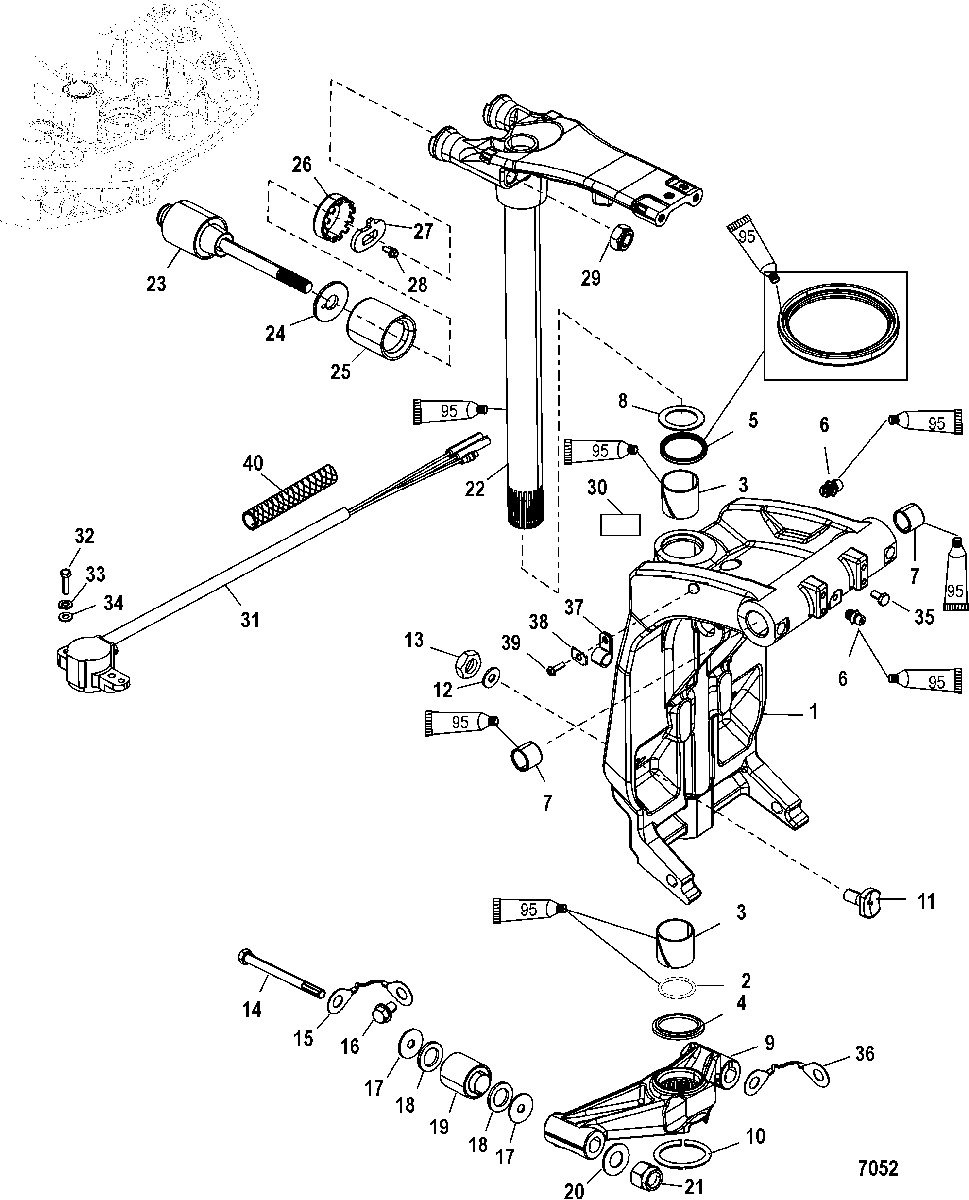

Swivel Bracket and Steering Arm для Mariner - 135 VERADO (4-STROKE)(4 CYL.) 0P419487 THRU 0P464487

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BRACKET
    SWIVEL BRACKET
  • 2
    25-33504 O-RING
    O-RING
  • 3
    23-818764 BUSHING
    BUSHING
  • 4
    23-816039 SPACER
    SPACER
  • 5
    26-87735 SEAL, Oil (Lower)
    SEAL, Oil (Lower)
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    23-821207 BUSHING
    BUSHING
  • 8
    12-816432 THRUST WASHER
    THRUST WASHER
  • 9
    896888T YOKE, Bottom
    YOKE, Bottom
  • 10
    53-67684 RING, Retaining
    RING, Retaining
  • 11
    8M0045383 STRIKER PLATE
    STRIKER PLATE
  • 12
    13-58643 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 13
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 14
    10-896217 BOLT, (M14 x 175)
    BOLT, (M14 x 175)
  • 15
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 16
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 17
    12-815432 WASHER, (.562 x 2.00 x .125)
    WASHER, (.562 x 2.00 x .125)
  • 18
    12-8154331 WASHER, (1.25 x 2.00 x .19)
    WASHER, (1.25 x 2.00 x .19)
  • 19
    813771003 MOUNT, Lower
    MOUNT, Lower
  • 20
    12-825190 WASHER
    WASHER
  • 21
    11-896602 NUT, (M14)
    NUT, (M14)
  • 22
    17-8M0133581 SWIVEL PIN ASSEMBLY
    SWIVEL PIN ASSEMBLY
  • 23
    897991A02 MOUNT ASSEMBLY, Upper
    SN# 1B245914 & Below
    MOUNT ASSEMBLY, Upper
    SN# 1B245914 & Below
  • 23
    897991A01 MOUNT ASSEMBLY
    SN# 1B245915 & Up
    MOUNT ASSEMBLY
    SN# 1B245915 & Up
  • 24
    12-898443 WASHER, Retainer
    WASHER, Retainer
  • 25
    897991A02 SLEEVE, Mount Retainer
    SN# 1B245914 & Below
    SLEEVE, Mount Retainer
    SN# 1B245914 & Below
  • 25
    898444001 SLEEVE
    SN# 1B245915 & Up
    SLEEVE
    SN# 1B245915 & Up
  • 26
    11-897731001 NUT, Spanner
    NUT, Spanner
  • 27
    897728 RETAINER
    RETAINER
  • 28
    10-8M0103806 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 29
    11-896602 NUT, (M14)
    NUT, (M14)
  • 30
    NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate
    NOT SOLD SEPARATE, Decal-Serial Overlaminate
  • 31
    896688001 SENDER ASSEMBLY, Trim
    SENDER ASSEMBLY, Trim
  • 32
    10-852368 SCREW, (#10-24 x .750)
    SCREW, (#10-24 x .750)
  • 33
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 34
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 35
    10-64014 SCREW, (.250-28 x .500)
    SCREW, (.250-28 x .500)
  • 36
    88238T22 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 37
    54-22740 CLIP
    CLIP
  • 38
    8M0084613 C WASHER
    C WASHER
  • 39
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 40
    32-828547353 CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to16 Inches)
    CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to16 Inches)
