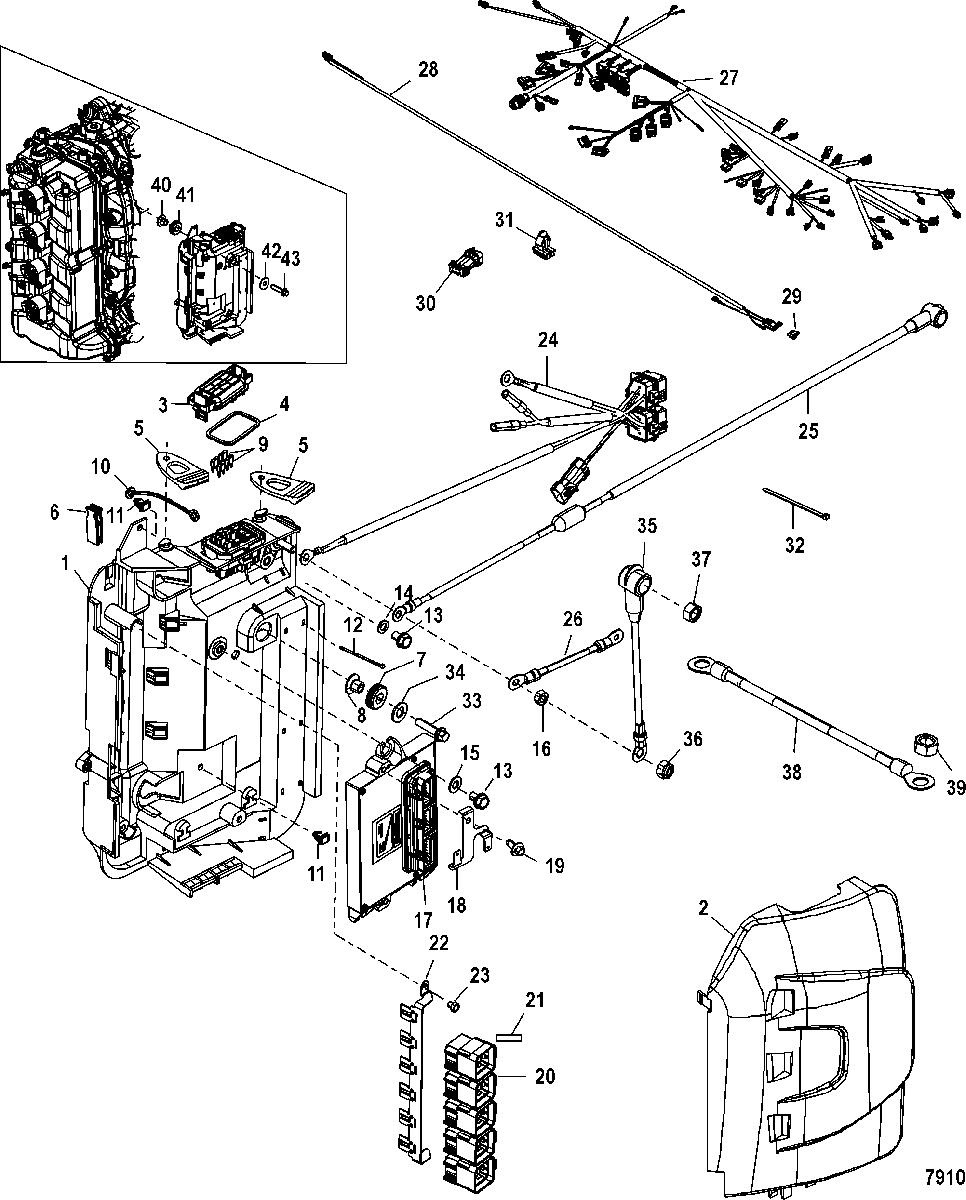

Electrical Box Components для Mariner - 135 VERADO (4-STROKE)(4 CYL.) 0P419487 THRU 0P464487

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Electrical Box Assembly-Complete
    NOT SOLD SEPARATE, Electrical Box Assembly-Complete
  • -
    NSS NOT SOLD SEPARATE, Electrical Box Assembly
    NOT SOLD SEPARATE, Electrical Box Assembly
  • 1
    896230T02 BOX ASSEMBLY, Electrical
    BOX ASSEMBLY, Electrical
  • 2
    NSS NOT SOLD SEPARATE, Cover
    NOT SOLD SEPARATE, Cover
  • 3
    888491 COVER
    COVER
  • 4
    25-885583 SEAL
    SEAL
  • 5
    889531 STRAP
    STRAP
  • 6
    895099 EXTRACTOR, Fuse
    EXTRACTOR, Fuse
  • 7
    25-833155 GROMMET
    GROMMET
  • 8
    23-8502341 BUSHING
    BUSHING
  • 9
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 10
    892244 STRAP, Cover
    STRAP, Cover
  • 11
    54-892448 CLIP
    CLIP
  • 12
    54-850181 TIE STRAP, (11.750 Inches)
    TIE STRAP, (11.750 Inches)
  • 13
    10-40011145 SCREW, (M8 x 10) Stainless Steel
    SCREW, (M8 x 10) Stainless Steel
  • 14
    12-843108 WASHER, (.330 x .560 x .060) Stainless Steel
    WASHER, (.330 x .560 x .060) Stainless Steel
  • 15
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 16
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 17
    89790729T PCM, Propulsion Control Module
    (135) SN# 1B232377 & Below
    PCM, Propulsion Control Module
    (135) SN# 1B232377 & Below
  • 17
    89790729T PCM, Propulsion Control Module
    (135) SN# 1B232378 & Up
    PCM, Propulsion Control Module
    (135) SN# 1B232378 & Up
  • 17
    89790730T PCM, Propulsion Control Module
    (135 EU)
    PCM, Propulsion Control Module
    (135 EU)
  • 17
    89790731T PCM, Propulsion Control Module
    (150) SN# 1B232377 & Below
    PCM, Propulsion Control Module
    (150) SN# 1B232377 & Below
  • 17
    89790731T PCM, Propulsion Control Module
    (150) SN# 1B232378 & Up
    PCM, Propulsion Control Module
    (150) SN# 1B232378 & Up
  • 17
    89790732T PCM, Propulsion Control Module
    (150 EU)
    PCM, Propulsion Control Module
    (150 EU)
  • 17
    89790733T PCM, Propulsion Control Module
    (175) SN# 1B232377 & Below
    PCM, Propulsion Control Module
    (175) SN# 1B232377 & Below
  • 17
    89790733T PCM, Propulsion Control Module
    (175) SN# 1B232378 & Up
    PCM, Propulsion Control Module
    (175) SN# 1B232378 & Up
  • 18
    54-891520001 CLIP
    CLIP
  • 19
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • -
    NSS NOT SOLD SEPARATE, Relay Bracket Assembly-Complete
    NOT SOLD SEPARATE, Relay Bracket Assembly-Complete
  • 20
    882751A04 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 21
    NSS NOT SOLD SEPARATE, Decal-Trim Relay
    NOT SOLD SEPARATE, Decal-Trim Relay
  • 22
    889532 BRACKET
    BRACKET
  • 23
    10-40007103 SCREW, (M5 x 6)
    SCREW, (M5 x 6)
  • 24
    84-819514A23 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
  • 25
    84-892137T03 HARNESS ASSEMBLY, Fuse
    HARNESS ASSEMBLY, Fuse
  • 26
    84-93388A19 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 27
    84-8M0132704 HARNESS ASSEMBLY, Engine
    HARNESS ASSEMBLY, Engine
  • 28
    84-8M0113732 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 29
    862646 FUSE, Tan - 5 Ampere
    FUSE, Tan - 5 Ampere
  • 30
    877613A02 CONNECTOR ASSEMBLY, Weather Cap 6 Pin
    CONNECTOR ASSEMBLY, Weather Cap 6 Pin
  • 31
    54-879962 CLIP
    CLIP
  • 32
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 33
    10-8M0103814 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 34
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 35
    84-88439A25 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 36
    11-401388 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 37
    11-86226 NUT, (.375-16), Battery Cable-Positive
    NUT, (.375-16), Battery Cable-Positive
  • 38
    84-88439A26 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 39
    11-68292 NUT, (.312-18), Battery Cable-Negative
    NUT, (.312-18), Battery Cable-Negative
  • 40
    23-8502341 BUSHING
    BUSHING
  • 41
    25-833155 GROMMET
    GROMMET
  • 42
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 43
    10-8M0103814 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • -
    61-8M0055433 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
