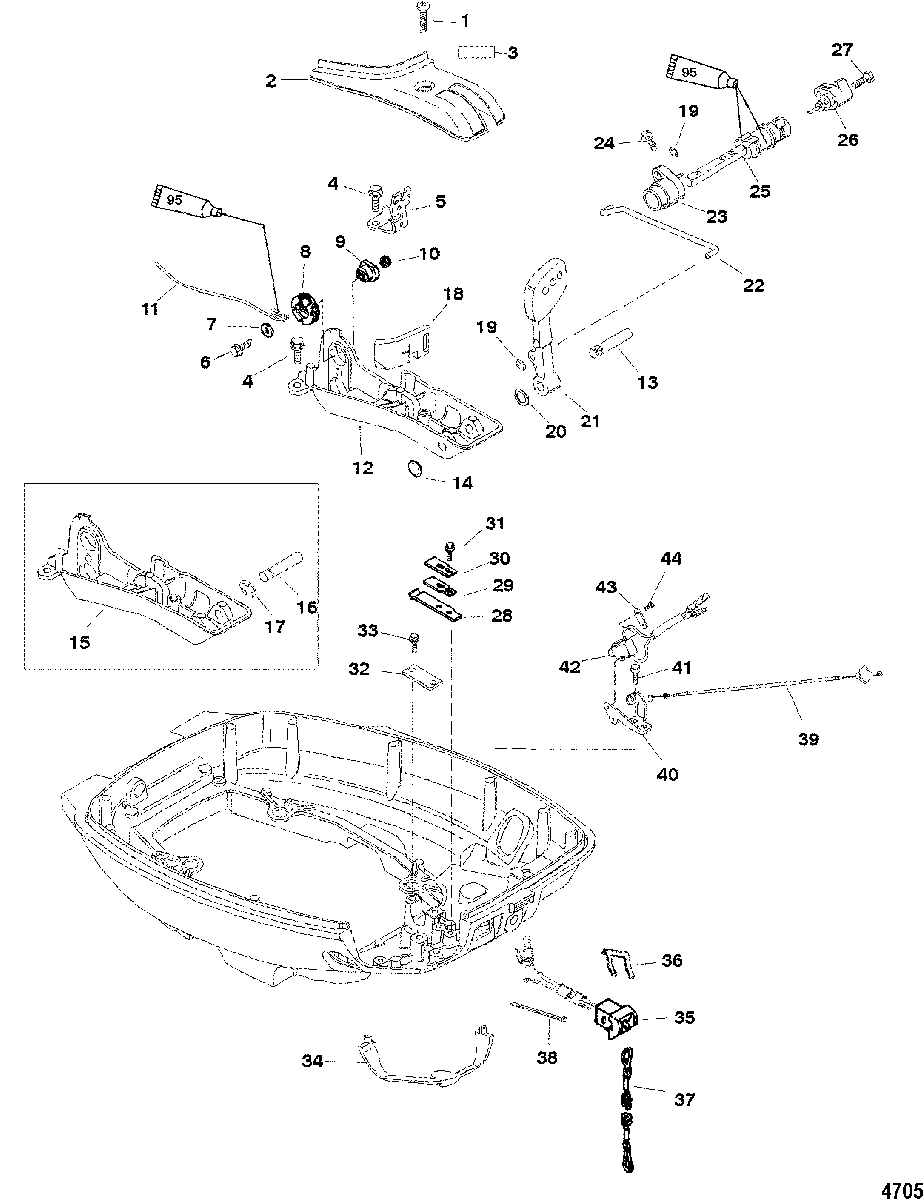

Throttle/Shift Linkage(Handle Models) для Mariner - 13.5 (4-STROKE) (International) 0P134638 THRU 0P400999
-
№АртикулНазвание
-
110-8248291 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
2856905 COVERCOVER
-
3NSS NOT SOLD SEPARATE (Decal-F,N,R)NOT SOLD SEPARATE (Decal-F,N,R)
-
410-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
5856909 BRACKETBRACKET
-
610-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
712-4002316 WASHERWASHER
-
8825787A2 PULLEY ASSEMBLYPULLEY ASSEMBLY
-
923-825788 BUSHINGBUSHING
-
1011-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
11882818 LINK, ThrottleLINK, Throttle
-
12856904T01 SHIFT PLATFORM KIT
(Design II)SHIFT PLATFORM KIT
(Design II) -
138569111 SHAFT
(Design II)SHAFT
(Design II) -
1419-48323 PLUG
(Design II)PLUG
(Design II) -
15856904T01 SHIFT PLATFORM
(Design I)SHIFT PLATFORM
(Design I) -
16856911 SHAFT
(Design I)SHAFT
(Design I) -
1753-95019 RING, Retaining
(Design I)RING, Retaining
(Design I) -
18856910 SEALSEAL
-
1953-857213 RING, RetainingRING, Retaining
-
2013-69150 WAVE WASHERWAVE WASHER
-
21856906 SHIFT HANDLESHIFT HANDLE
-
22856908 SHIFT LINKSHIFT LINK
-
23856907 LEVER, ShiftLEVER, Shift
-
2410-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
25852494A5 SHIFT SHAFT ASSEMBLY, Horizontal
(Non-Bigfoot)SHIFT SHAFT ASSEMBLY, Horizontal
(Non-Bigfoot) -
25852494A6 SHIFT SHAFT ASSEMBLY, Horizontal
(Bigfoot)SHIFT SHAFT ASSEMBLY, Horizontal
(Bigfoot) -
26855609 LEVER, Interlock
(Bigfoot)LEVER, Interlock
(Bigfoot) -
26826063 LEVER, Interlock
(Non-Bigfoot)LEVER, Interlock
(Non-Bigfoot) -
2710-40011111 SCREW, (M5 x 35) Stainless SteelSCREW, (M5 x 35) Stainless Steel
-
2824-824992 SPRING, DetentSPRING, Detent
-
2924-824993 SPRING, BackingSPRING, Backing
-
30824994 SPRING, PlateSPRING, Plate
-
3110-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
328280471 STRAPSTRAP
-
3310-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
348354191 SEALSEAL
-
3587-11083A30 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
368M0032846 RETAINER, BrassRETAINER, Brass
-
378M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
3854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
39852472 WIREWIRE
-
40855888F BRACKETBRACKET
-
4110-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
4287-8M0052929 SWITCH ASSEMBLY
(Electric)SWITCH ASSEMBLY
(Electric) -
43824923 PLATE
(Electric)PLATE
(Electric) -
4410-82470620 SCREW, (M3.5 x 20)
(Electric)SCREW, (M3.5 x 20)
(Electric)
