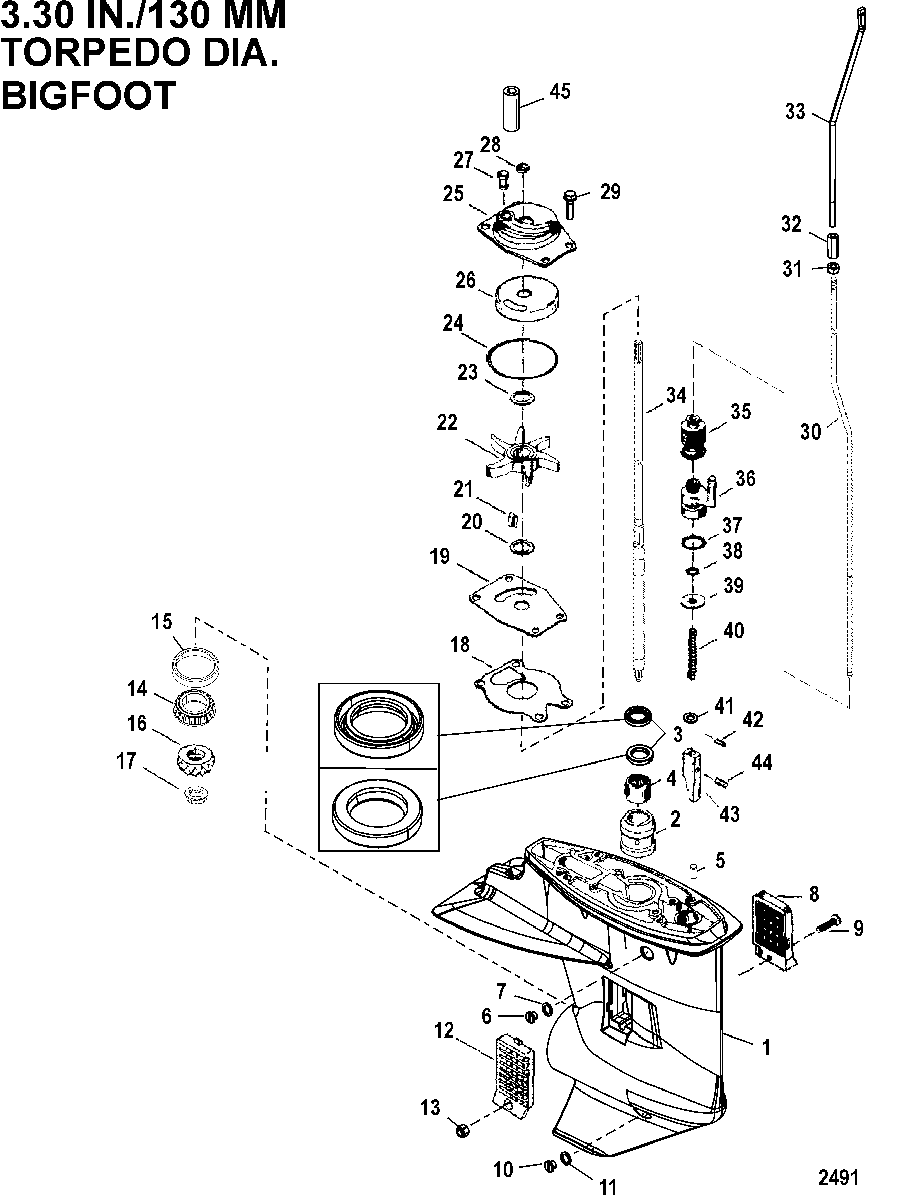

Gear Housing(Driveshaft)(2.42:1 Gear Ratio) для Mariner - 13.5 (4-STROKE) (International) 0P134638 THRU 0P400999

  • №
    Артикул
    Название
  • -
    1665-8669T33 GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)
    (Long - Black)
    GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)
    (Long - Black)
  • -
    1600-8M0084519 GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)
    (X-Long - Black)
    GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)
    (X-Long - Black)
  • 1
    1600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Black
    (Basic - Black)
    GEAR HOUSING ASSEMBLY, Basic-Black
    (Basic - Black)
  • 2
    NSS NOT SOLD SEPARATE, Sleeve
    NOT SOLD SEPARATE, Sleeve
  • 3
    26-99325 SEAL
    SEAL
  • 4
    31-41326 BEARING, Roller
    BEARING, Roller
  • 5
    17-8M0084726 PIN, Dowel (.187 x .530)
    PIN, Dowel (.187 x .530)
  • 6
    10-79953Q04 SCREW KIT, (.375-16 x .250) Drain
    SCREW KIT, (.375-16 x .250) Drain
  • 7
    12-191833 SEAL
    SEAL
  • 8
    35-41133 SCREEN, Water Inlet Port
    SCREEN, Water Inlet Port
  • 9
    10-40031112 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 10
    10-79953Q04 SCREW KIT, (.375-16 x .250) Drain
    SCREW KIT, (.375-16 x .250) Drain
  • 10
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    SN# USA-0T979999/BEL-0P325499 & Below
    FITTING KIT, Magnetic, Plug Fill/Drain
    SN# USA-0T979999/BEL-0P325499 & Below
  • 10
    22-8M0058389 PLUG KIT, Drain (Magnetic)
    SN# USA-0T980000/BEL-0P325500 & Up
    PLUG KIT, Drain (Magnetic)
    SN# USA-0T980000/BEL-0P325500 & Up
  • 11
    12-191833 SEAL
    SEAL
  • 12
    35-41134 SCREEN
    SCREEN
  • 13
    11-401365 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 14
    31-98294A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 15
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 16
    43-854498 GEAR, Pinion - 12-29
    GEAR, Pinion - 12-29
  • 17
    11-828490 NUT
    NUT
  • 18
    27-993261 GASKET
    GASKET
  • 19
    85083 FACE PLATE
    FACE PLATE
  • 20
    12-866451 WASHER
    WASHER
  • 21
    28-8M0032838 KEY
    KEY
  • 22
    47-8508910 IMPELLER
    IMPELLER
  • 23
    12-866451 WASHER
    WASHER
  • 24
    25-69202 O-RING
    O-RING
  • 25
    46-99157A02 PUMP ASSEMBLY, Water
    SN# USA-0T800999/BEL-0P267999 & Below
    PUMP ASSEMBLY, Water
    SN# USA-0T800999/BEL-0P267999 & Below
  • 25
    46-99157A02 PUMP ASSEMBLY, Water
    SN# USA-0T801000/BEL-0P268000 & Up
    PUMP ASSEMBLY, Water
    SN# USA-0T801000/BEL-0P268000 & Up
  • 26
    NSS NOT SOLD SEPARATE, Insert
    NOT SOLD SEPARATE, Insert
  • 27
    26-85090001 SEAL
    SN# USA-0T979999/BEL-0P325499 & Below
    SEAL
    SN# USA-0T979999/BEL-0P325499 & Below
  • 27
    26-85090001 SEAL
    SN# USA-0T980000/BEL-0P325500 & Up
    SEAL
    SN# USA-0T980000/BEL-0P325500 & Up
  • 28
    25-86203 O-RING
    O-RING
  • 29
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 30
    854503 SHIFT SHAFT
    (Long)
    SHIFT SHAFT
    (Long)
  • 30
    854504 SHIFT SHAFT
    (X-Long)
    SHIFT SHAFT
    (X-Long)
  • 31
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 32
    822419 COUPLER
    COUPLER
  • 33
    8529941 SHIFT SHAFT, Upper
    SHIFT SHAFT, Upper
  • 34
    45-854501 DRIVESHAFT
    (Long)
    DRIVESHAFT
    (Long)
  • 34
    45-854502 DRIVESHAFT
    (X-Long)
    DRIVESHAFT
    (X-Long)
  • 35
    85552001 BOOT
    SN# USA-0T979999/BEL-0P325499 & Below
    BOOT
    SN# USA-0T979999/BEL-0P325499 & Below
  • 35
    85552001 BOOT
    SN# USA-0T980000/BEL-0P325500 & Up
    BOOT
    SN# USA-0T980000/BEL-0P325500 & Up
  • 36
    93878 RETAINER
    RETAINER
  • 37
    25-35276 O-RING, (.734 x .139)
    O-RING, (.734 x .139)
  • 38
    25-85594 O-RING, (.239 x .174)
    O-RING, (.239 x .174)
  • 39
    12-85091 WASHER
    WASHER
  • 40
    24-93007 SPRING
    SPRING
  • 41
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 42
    17-85593 PIN, (.078 x .437)
    PIN, (.078 x .437)
  • 43
    85562A2 SHIFT CAM
    SHIFT CAM
  • 44
    17-85096 PIN, Drive
    PIN, Drive
  • 45
    23-29804T SLEEVE, Water Tube
    SLEEVE, Water Tube
  • -
    26-85090A2 SEAL KIT
    SEAL KIT
  • -
    46-99157T2 PUMP KIT, Water
    PUMP KIT, Water
