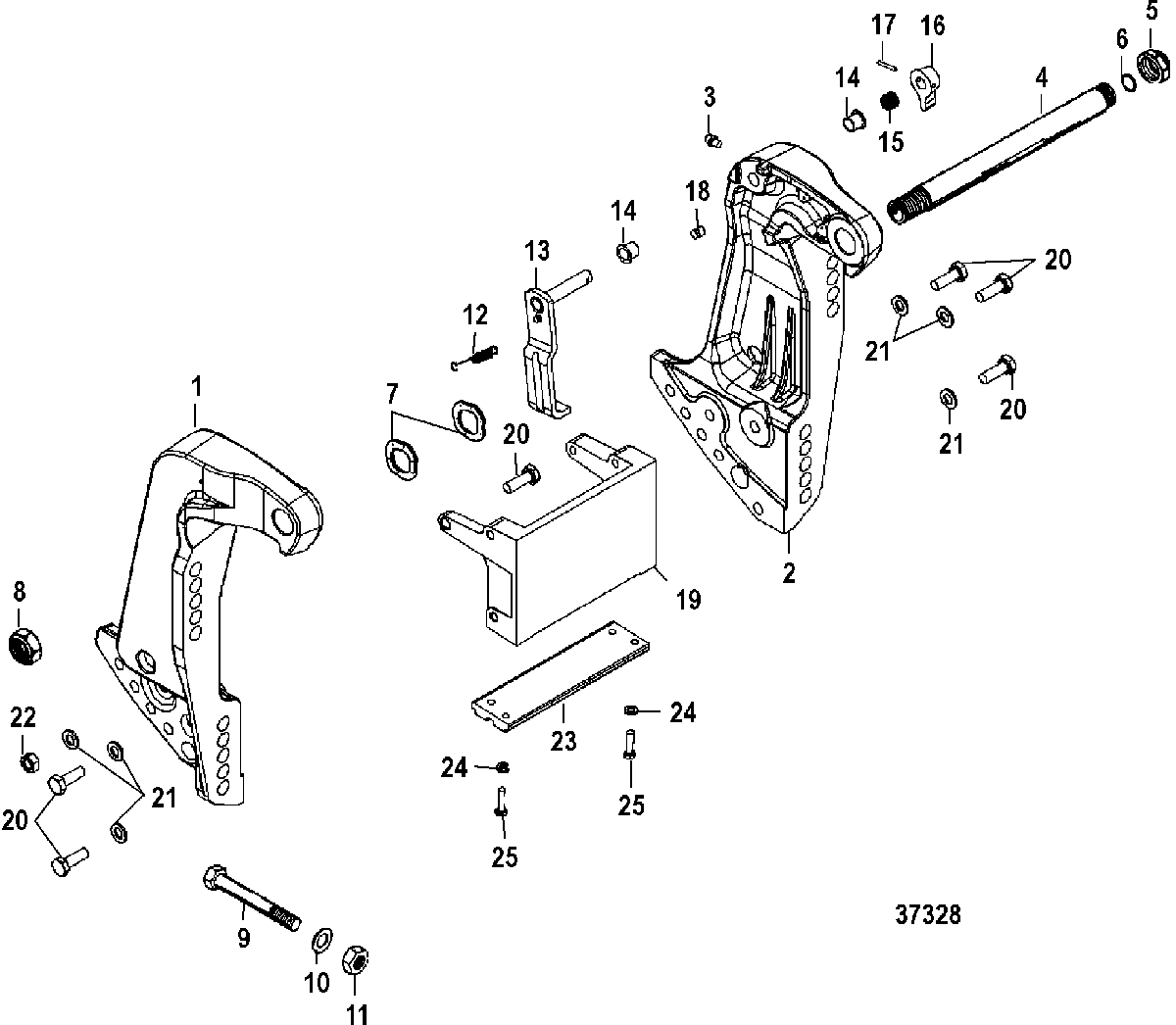

TRANSOM BRACKET(S/N-USA-0G590000/BEL-9973100 AND UP) для Mariner - 125 (4 CYL.) 0D283222 THRU 0G760299
-
№АртикулНазвание
-
11400-8M0045064 BRACKET, Transom
(STARBOARD) BLACKBRACKET, Transom
(STARBOARD) BLACK -
13426-828334F2 BRACKET, Transom
(STARBOARD) GRAYBRACKET, Transom
(STARBOARD) GRAY -
21400-8M0045064 BRACKET ASSEMBLY, Transom
(PORT) BLACKBRACKET ASSEMBLY, Transom
(PORT) BLACK -
23425-828333A4 BRACKET ASSEMBLY, Transom
(PORT) GRAYBRACKET ASSEMBLY, Transom
(PORT) GRAY -
322-98727 FITTING, Grease
(PORT)FITTING, Grease
(PORT) -
4826125A1 TUBE KIT, TiltTUBE KIT, Tilt
-
511-826135 NUT, (1.00-14) Nylon InsertNUT, (1.00-14) Nylon Insert
-
625-45711 O-RING, (.612 x .103)O-RING, (.612 x .103)
-
713-88750 WASHERWASHER
-
811-826164 NUT, (.875-14)NUT, (.875-14)
-
910-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
1012-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1111-91962 NUT, (.500-20)NUT, (.500-20)
-
1224-830899 SPRING, TensionSPRING, Tension
-
138M0109798 LEVER ASSEMBLY, Tilt LockLEVER ASSEMBLY, Tilt Lock
-
1423-65830 NYLINERNYLINER
-
1524-830900 SPRING, CompressionSPRING, Compression
-
1699633 KNOBKNOB
-
1717-99615 PIN, GroovePIN, Groove
-
1817-893709 PINPIN
-
198M0086406 BRACKET, Anchor
(BLACK)BRACKET, Anchor
(BLACK) -
198M0086406 BRACKET, Anchor
(GRAY)BRACKET, Anchor
(GRAY) -
2010-4000377 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
2112-4002319 WASHERWASHER
-
2113-400256 LOCKWASHER, (M6)
(JET)LOCKWASHER, (M6)
(JET) -
2211-40114 NUT, (M10 x 1.5)NUT, (M10 x 1.5)
-
2397-818298Q1 ANODE KITANODE KIT
-
2410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
