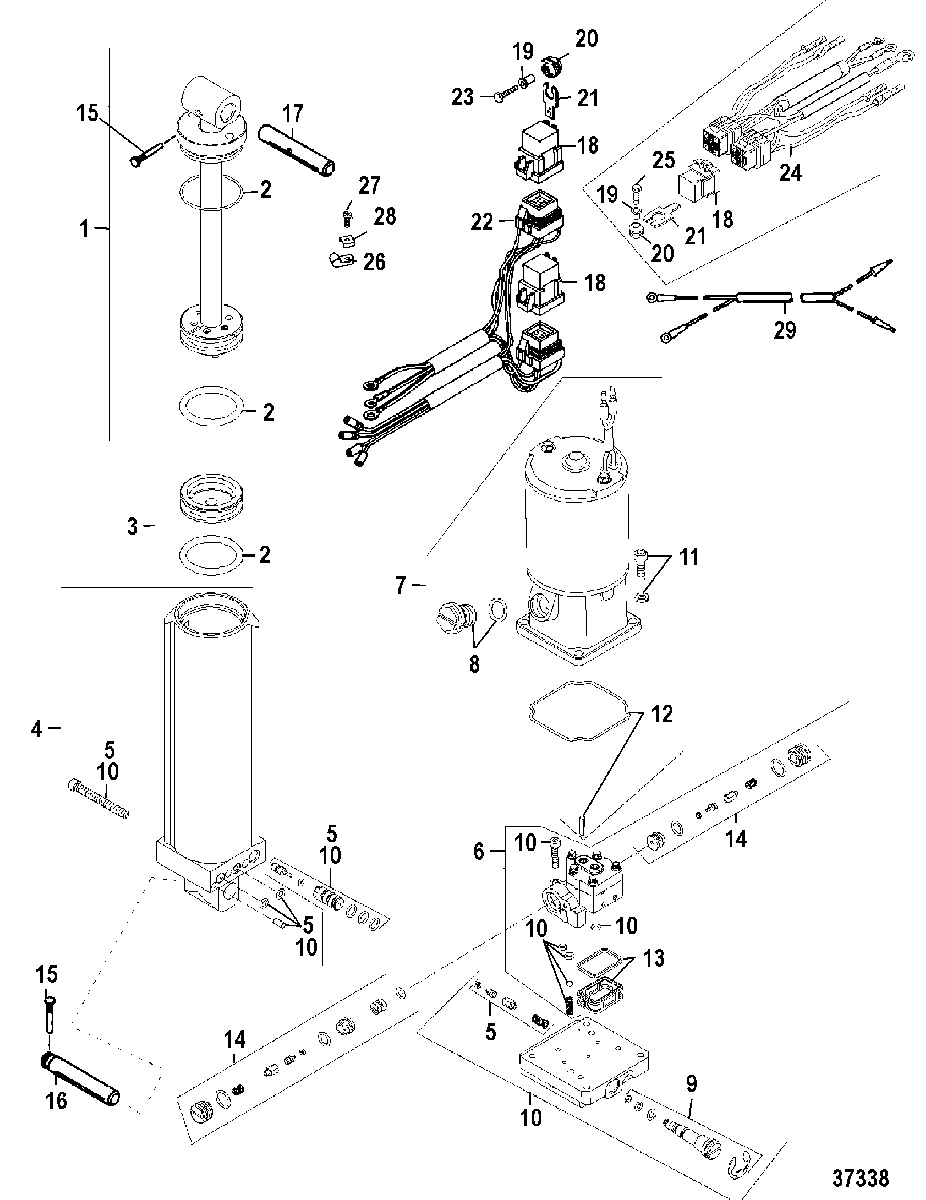

POWER TRIM(YELLOW FILL PLUG)(G359968/9934137 AND UP для Mariner - 125 (4 CYL.) 0D283222 THRU 0G760299

  • №
    Артикул
    Название
  • -
    8M0090335 PUMP ASSEMBLY, Power Trim
    PUMP ASSEMBLY, Power Trim
  • 1
    8M0089942 SHOCK ROD KIT
    SHOCK ROD KIT
  • 2
    25-893902A01 O-RING KIT, Rebuild
    O-RING KIT, Rebuild
  • 3
    810776A1 PISTON ASSEMBLY, Memory
    PISTON ASSEMBLY, Memory
  • 4
    8M0055015 CYLINDER ASSEMBLY
    CYLINDER ASSEMBLY
  • 5
    8M0090404 VALVE KIT, Trim Limit
    VALVE KIT, Trim Limit
  • 6
    8M0055019 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 7
    893907A02 MOTOR KIT
    MOTOR KIT
  • 8
    22-8134351 PLUG
    PLUG
  • 9
    893929A01 MANUAL RELEASE ASSEMBLY
    MANUAL RELEASE ASSEMBLY
  • 10
    8M0055018 MANIFOLD KIT
    MANIFOLD KIT
  • 11
    10-809876A1 SCREW KIT (MOTOR)
    SCREW KIT (MOTOR)
  • 12
    809877A1 DRIVESHAFT/SEAL KIT
    DRIVESHAFT/SEAL KIT
  • 13
    35-893912A02 FILTER KIT
    FILTER KIT
  • 14
    893913A02 POPPET KIT
    POPPET KIT
  • -
    25-8M0089947 O-RING KIT (COMPLETE TRIM)
    O-RING KIT (COMPLETE TRIM)
  • 15
    17-821539 PIN, Trilobe
    PIN, Trilobe
  • 16
    17-818898 PIN, Anchor
    PIN, Anchor
  • 17
    99625002 SHAFT
    SHAFT
  • 18
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 19
    23-818968 BUSHING
    BUSHING
  • 20
    25-818967 GROMMET
    GROMMET
  • 21
    828102 BRACKET
    BRACKET
  • 22
    84-819514A4 HARNESS ASSEMBLY, Trim
    SN# USA-0G359968/BEL-9934137 THRU USA-0G437999/BEL-9926999
    HARNESS ASSEMBLY, Trim
    SN# USA-0G359968/BEL-9934137 THRU USA-0G437999/BEL-9926999
  • 23
    10-40011109 SCREW, (M5 x 25) Stainless Steel
    SN# USA-0G359968/BEL-9934137 THRU USA-0G437999/BEL-9926999
    SCREW, (M5 x 25) Stainless Steel
    SN# USA-0G359968/BEL-9934137 THRU USA-0G437999/BEL-9926999
  • 24
    84-819514A15 HARNESS ASSEMBLY, Trim
    SN# USA-0G438000/BEL-9927000 & Up
    HARNESS ASSEMBLY, Trim
    SN# USA-0G438000/BEL-9927000 & Up
  • 25
    10-82129125 SCREW, (M6 x 25 MM)
    SN# USA-0G438000/BEL-9927000 & Up
    SCREW, (M6 x 25 MM)
    SN# USA-0G438000/BEL-9927000 & Up
  • 26
    54-22740 CLIP
    CLIP
  • 27
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 28
    8M0084613 C WASHER
    C WASHER
  • 29
    84-17201A2 CABLE ASSEMBLY, (17.00 Inches)
    CABLE ASSEMBLY, (17.00 Inches)
