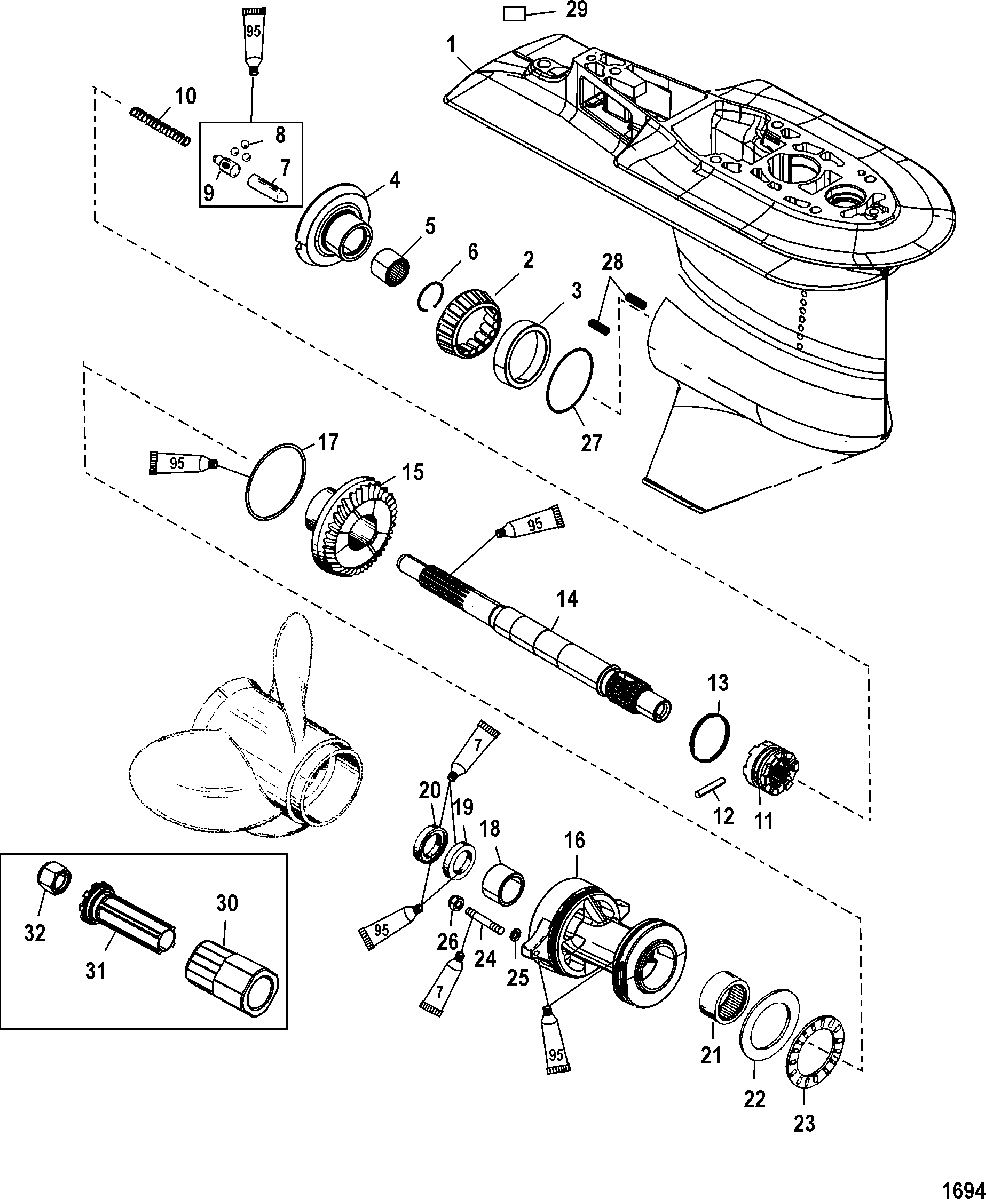

Gear Housing, Propeller Shaft - 2.33:1 Gear Ratio для Mariner - 115 DFI (3 CYL.)(1.5L) 1B417702 THRU 1B736885

  • №
    Артикул
    Название
  • -
    1667-9011J37 GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
    Long
    GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
    Long
  • -
    1667-9011J39 GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
    X-Long
    GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
    X-Long
  • 1
    1667-9011G59 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 2
    31-30894A1 BEARING SET, Cup And Cone
    BEARING SET, Cup And Cone
  • 3
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 4
    43-882813A3 GEAR KIT, Forward And Pinion 28 Teeth
    GEAR KIT, Forward And Pinion 28 Teeth
  • 5
    31-30895T BEARING, Needle
    BEARING, Needle
  • 6
    53-856823 RING, Retaining
    RING, Retaining
  • 7
    850315A1 FOLLOWER KIT, Cam
    FOLLOWER KIT, Cam
  • 8
    30-44530 BALL
    BALL
  • 9
    NSS NOT SOLD SEPARATE, Slide
    NOT SOLD SEPARATE, Slide
  • 10
    24-850327 SPRING
    SPRING
  • 11
    52-850048T CLUTCH
    CLUTCH
  • 12
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 13
    24-30893 SPRING
    SPRING
  • 14
    44-8M0140445 PROPELLER SHAFT
    PROPELLER SHAFT
  • 15
    43-882814T GEAR, Reverse - 28 Teeth
    GEAR, Reverse - 28 Teeth
  • 16
    12596T2 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 17
    25-861844 O-RING, (3.609 x .139)
    O-RING, (3.609 x .139)
  • 18
    31-30956T BEARING, Needle
    BEARING, Needle
  • 19
    26-70080 SEAL, Oil, Inner
    SEAL, Oil, Inner
  • 20
    26-70081 SEAL, Oil, Outer
    SEAL, Oil, Outer
  • 21
    31-12578T BEARING, Roller
    BEARING, Roller
  • 22
    12-12577 THRUST WASHER
    THRUST WASHER
  • 23
    31-12576 BEARING, Thrust
    BEARING, Thrust
  • 24
    16-8M0034456 STUD, (M8 x 48)
    STUD, (M8 x 48)
  • 25
    12-855941 WASHER, (.323 x .590 x .112) Stainless Steel
    WASHER, (.323 x .590 x .112) Stainless Steel
  • 26
    11-401378 NUT, (M8)
    NUT, (M8)
  • 27
    15-8M0063266 SHIM SET
    SHIM SET
  • 28
    NSS NOT SOLD SEPARATE, Insert
    NOT SOLD SEPARATE, Insert
  • 29
    NSS NOT SOLD SEPARATE, Decal-Gear Housing Pinion Identification
    NOT SOLD SEPARATE, Decal-Gear Housing Pinion Identification
  • 30
    835257K9 FLO TORQUE III KIT
    FLO TORQUE III KIT
  • 31
    NSS NOT SOLD SEPARATE, Adaptor
    NOT SOLD SEPARATE, Adaptor
  • 32
    NSS NOT SOLD SEPARATE, Lock Nut
    NOT SOLD SEPARATE, Lock Nut
  • -
    26-43035A4 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
  • -
    52-803489T1 REPAIR KIT, Clutch/Cam
    REPAIR KIT, Clutch/Cam
  • -
    31-803496T2 BEARING/SEAL KIT, Without Forward Bearing
    BEARING/SEAL KIT, Without Forward Bearing
