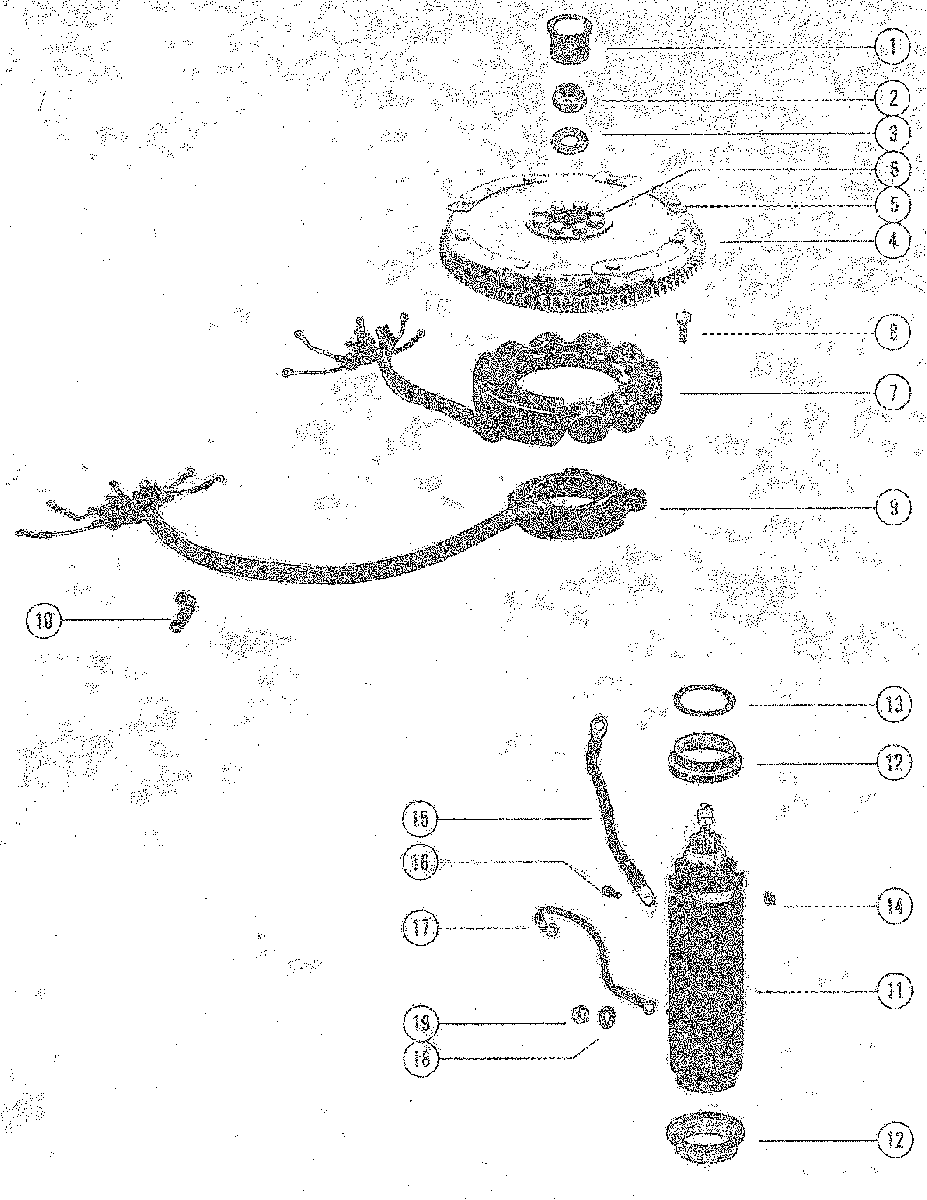

FLYWHEEL, STARTER MOTOR AND STATOR для Mariner - 115 (6 CYL.) 8062460 THRU 8062634
-
№АртикулНазвание
-
119-45907 PLUG, FLYWHEELPLUG, FLYWHEEL
-
211-52901 NUT, FLYWHEEL ATTACHINGNUT, FLYWHEEL ATTACHING
-
312-33001 WASHER, FLYWHEEL ATTACHINGWASHER, FLYWHEEL ATTACHING
-
4248-8722A7 FLYWHEEL ASSEMBLY, COMP.FLYWHEEL ASSEMBLY, COMP.
-
510-32417 SCREW, FLYWHEEL PLATESCREW, FLYWHEEL PLATE
-
610-68997 SCREW, FLYWHEEL HUBSCREW, FLYWHEEL HUB
-
7398-5454A17 STATOR ASSEMBLYSTATOR ASSEMBLY
-
810-75840 SCREW, STATOR ATTACHING (7/8")SCREW, STATOR ATTACHING (7/8")
-
996455A9 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
1054-61001 CLAMP, TRIGGER HARNESSCLAMP, TRIGGER HARNESS
-
1150-898265010 STARTER MOTORSTARTER MOTOR
-
1223-8M0034918 COLLAR, STARTER MOTORCOLLAR, STARTER MOTOR
-
1323-56774 SPACER, STARTER MOTORSPACER, STARTER MOTOR
-
148M0043376 STOP, RUBBER - STARTER MOTORSTOP, RUBBER - STARTER MOTOR
-
1584-93388A1 WIRE ASSEMBLY, PLATE TO STARTER MOTOR (BLACK)WIRE ASSEMBLY, PLATE TO STARTER MOTOR (BLACK)
-
1610-69035 SCREW, CABLE TO STARTER MOTORSCREW, CABLE TO STARTER MOTOR
-
1784-93389A6 WIRE ASSEMBLY, SOLENOID TO STARTER MOTOR (YELLOW)WIRE ASSEMBLY, SOLENOID TO STARTER MOTOR (YELLOW)
-
1813-26992 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
1911-64015 NUT, STARTER MOTOR TERMINALNUT, STARTER MOTOR TERMINAL
