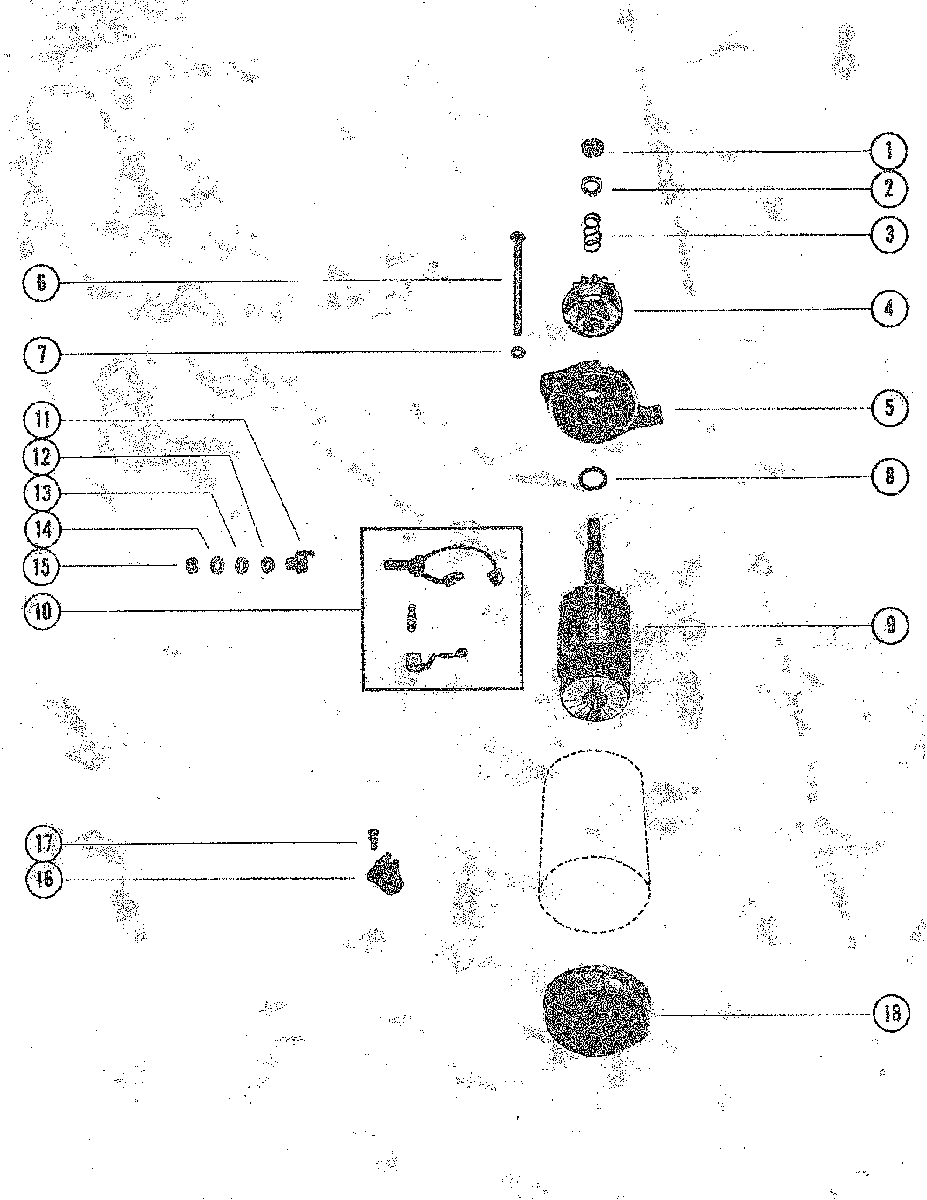

STARTER MOTOR ASSEMBLY, COMPLETE для Mariner - 115 (6 CYL.) 8062460 THRU 8062634
-
№АртикулНазвание
-
-50-898265010 STARTER MOTOR ASSEMBLY, COMPLETESTARTER MOTOR ASSEMBLY, COMPLETE
-
111-68580 NUT, RETAINING - DRIVE ASSEMBLYNUT, RETAINING - DRIVE ASSEMBLY
-
223-61788 SPACER, DRIVE ASSEMBLYSPACER, DRIVE ASSEMBLY
-
324-61790 SPRING, ANTI DRIFTSPRING, ANTI DRIFT
-
4685753 DRIVE ASSEMBLYDRIVE ASSEMBLY
-
575660 PLATE ASSEMBLY, DRIVE ENDPLATE ASSEMBLY, DRIVE END
-
610-74968 BOLT, THUR - PLATE TO END CAPBOLT, THUR - PLATE TO END CAP
-
713-61789 LOCKWASHER, THRU BOTLLOCKWASHER, THRU BOTL
-
812-57383 WASHER, THRUST - ARMATUREWASHER, THRUST - ARMATURE
-
974964 ARMATUREARMATURE
-
10898265016 BRUSH SETBRUSH SET
-
1123-57387 BUSHING, INSULATIONG - INPUT STUDBUSHING, INSULATIONG - INPUT STUD
-
1212-57388 WASHER, INSULATING - INPUT STUDWASHER, INSULATING - INPUT STUD
-
1312-38013 WASHER, INPUT STUDWASHER, INPUT STUD
-
1413-26992 LOCKWASHER, INPUT STUDLOCKWASHER, INPUT STUD
-
1511-20890 NUT, INPUT STUDNUT, INPUT STUD
-
16898265014 HOLDER, BRUSHHOLDER, BRUSH
-
1710-68586 SCREW, BRUSH AND HOLDER TO CAPSCREW, BRUSH AND HOLDER TO CAP
-
1815386001 END CAP ASSEMBLY, COMMUTATOREND CAP ASSEMBLY, COMMUTATOR
