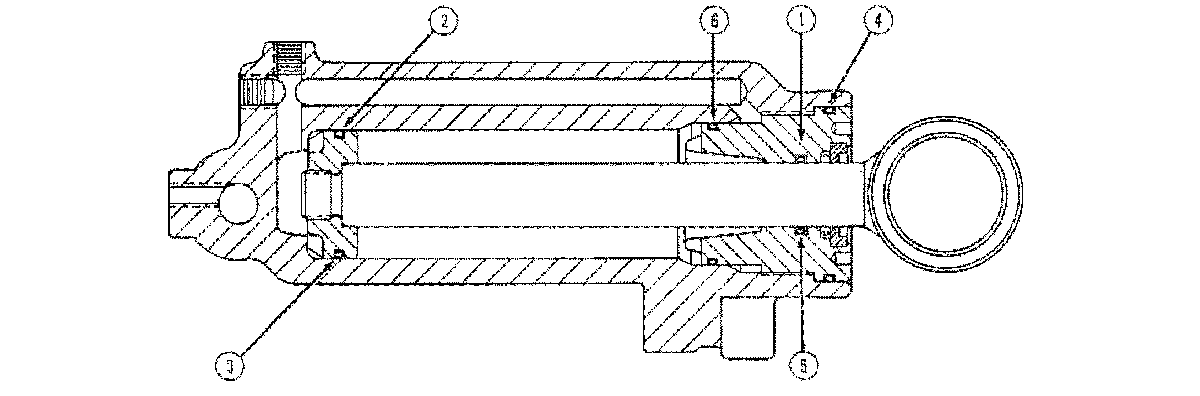

POWER TRIM CYLINDER REPAIR KITS (USE WITH 92194A20 TRIM) для Mariner - 115 (6 CYL.) 7191308 THRU 7208847

  • №
    Артикул
    Название
  • -
    92188A2 REPAIR KIT
    USE WITH 92194A20 TRIM CYLINDER (IDENTIFIED BY NO CASTING #)
    REPAIR KIT
    USE WITH 92194A20 TRIM CYLINDER (IDENTIFIED BY NO CASTING #)
  • 1
    N.S.S. CYLINDER CAP
    CYLINDER CAP
  • 2
    N.S.S. "O" RING (1-1/4" X X1-1/2" X 1/8")
    "O" RING (1-1/4" X X1-1/2" X 1/8")
  • 3
    N.S.S. SPACER
    SPACER
  • 4
    N.S.S. "O" RING (1-7/8" X 2-1/16" X 3/32")
    "O" RING (1-7/8" X 2-1/16" X 3/32")
  • 5
    N.S.S. "O" RING (3/4" X 15/16" X 3/32")
    "O" RING (3/4" X 15/16" X 3/32")
  • 6
    N.S.S. "O" RING (1-1/2" X 1-3/4 X 3/32")
    "O" RING (1-1/2" X 1-3/4 X 3/32")
