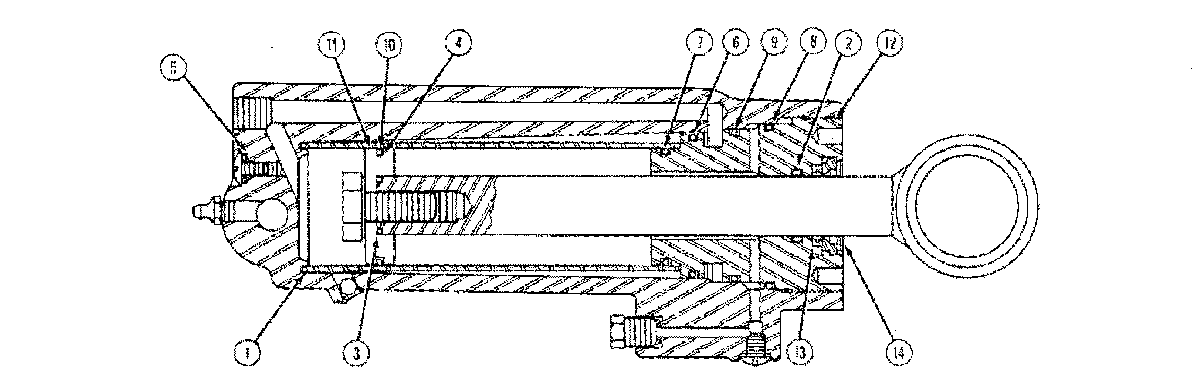

POWER TRIM CYLINDER REPAIR KITS (USE WITH 76509A23 TRIM) для Mariner - 115 (6 CYL.) 7191308 THRU 7208847

  • №
    Артикул
    Название
  • -
    64507A1 REPAIR KIT
    USE WITH 76509A23 TRIM CYLINDER (IDENTIFIED BY CASTING #78439)
    REPAIR KIT
    USE WITH 76509A23 TRIM CYLINDER (IDENTIFIED BY CASTING #78439)
  • 1
    N.S.S. "O" RING (1-1/2" X 1-5/8" X 1/16")
    "O" RING (1-1/2" X 1-5/8" X 1/16")
  • 2
    N.S.S. "O" RING (3/4" X 15/16" X 1/8")
    "O" RING (3/4" X 15/16" X 1/8")
  • 3
    N.S.S. "O" RING (5/8" X 3/4" X 1/16")
    "O" RING (5/8" X 3/4" X 1/16")
  • 4
    N.S.S. "O" RING (1-1/4" X 1-7/16" X 1/16")
    "O" RING (1-1/4" X 1-7/16" X 1/16")
  • 5
    N.S.S. "O" RING (7/32" X 11/32" X 1/16")
    "O" RING (7/32" X 11/32" X 1/16")
  • 6
    N.S.S. "O" RING (1-5/8" X 1-13/16" X 1/8")
    "O" RING (1-5/8" X 1-13/16" X 1/8")
  • 7
    N.S.S. "O" ING (1-5/16" X 1-1/2" X 1/8")
    "O" ING (1-5/16" X 1-1/2" X 1/8")
  • 8
    N.S.S. "O" RING (1-7/8" X 2" X 1/8")
    "O" RING (1-7/8" X 2" X 1/8")
  • 9
    N.S.S. "O" RING (1-3/4" X 1-15/16" X 1/8")
    "O" RING (1-3/4" X 1-15/16" X 1/8")
  • 10
    N.S.S. SEAL, SLIPPER - PISTON
    SEAL, SLIPPER - PISTON
  • 11
    N.S.S. PISTON, ROD - HEAVY DUTY
    PISTON, ROD - HEAVY DUTY
  • 12
    64505A1 RETAINER ASSEMBLY, PISTON
    RETAINER ASSEMBLY, PISTON
  • 13
    N.S.S. ROD, SCRAPER
    ROD, SCRAPER
  • 14
    N.S.S. RETAINER, SCRAPER
    RETAINER, SCRAPER
