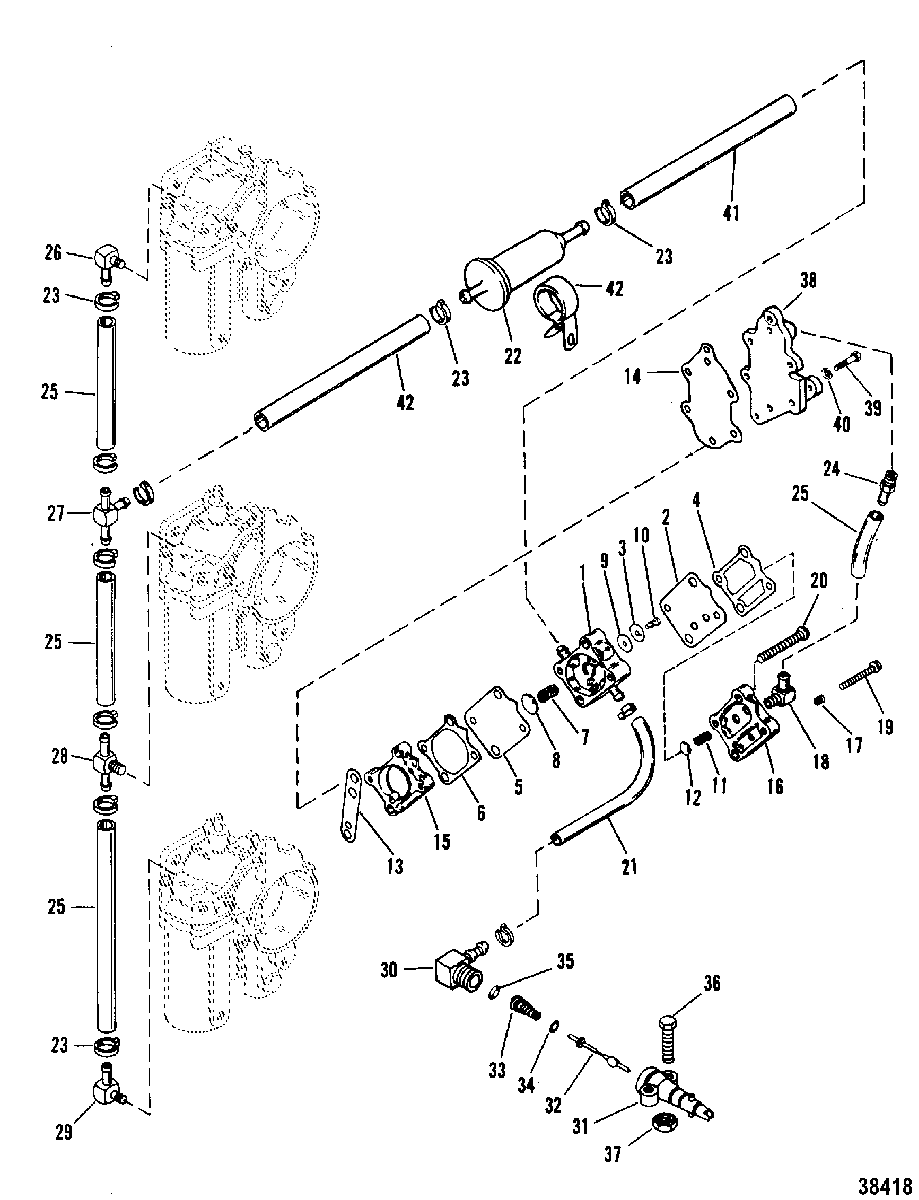

FUEL PUMP AND FUEL LINES(NEW STYLE FUEL PUMP) для Mariner - 115 (6 CYL.) 6436123 & Up

  • №
    Артикул
    Название
  • 1
    14360A78 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, CHECK VALVE-RUBBER
    NOT SOLD SEPARATE, CHECK VALVE-RUBBER
  • 4
    NSS NOT SOLD SEPARATE, GASKET-BOOST
    NOT SOLD SEPARATE, GASKET-BOOST
  • 5
    NSS NOT SOLD SEPARATE, DIAPHRAGM
    NOT SOLD SEPARATE, DIAPHRAGM
  • 6
    NSS NOT SOLD SEPARATE, GASKET-PULSE
    NOT SOLD SEPARATE, GASKET-PULSE
  • 7
    NSS NOT SOLD SEPARATE, SPRING
    NOT SOLD SEPARATE, SPRING
  • 8
    NSS NOT SOLD SEPARATE, CAP
    NOT SOLD SEPARATE, CAP
  • 9
    NSS NOT SOLD SEPARATE, CHECK VALVE
    NOT SOLD SEPARATE, CHECK VALVE
  • 10
    NSS NOT SOLD SEPARATE, RETAINER
    NOT SOLD SEPARATE, RETAINER
  • 11
    NSS NOT SOLD SEPARATE, SPRING
    NOT SOLD SEPARATE, SPRING
  • 12
    NSS NOT SOLD SEPARATE, CAP
    NOT SOLD SEPARATE, CAP
  • 13
    27-987691 GASKET, BASE
    GASKET, BASE
  • 14
    NSS NOT SOLD SEPARATE, GASKET-MOUNTING PLATE
    NOT SOLD SEPARATE, GASKET-MOUNTING PLATE
  • 15
    144303 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 16
    987752 PLATE, FUEL PUMP
    PLATE, FUEL PUMP
  • 17
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 18
    22-19688 FITTING
    FITTING
  • 19
    10-4000310 SCREW, (M5 x 40), FUEL PUMP
    SCREW, (M5 x 40), FUEL PUMP
  • 20
    10-16452 SCREW, (#12-24 x 2.00), FUEL PUMP TO CRANKCASE
    SCREW, (#12-24 x 2.00), FUEL PUMP TO CRANKCASE
  • 21
    32-8M0108349 TUBING
    TUBING
  • 22
    35-816296Q2 FILTER, Fuel
    FILTER, Fuel
  • 23
    54-816311T TIE STRAP, FUEL TUBING
    TIE STRAP, FUEL TUBING
  • 24
    22-64705 FITTING, FUEL LINE
    FITTING, FUEL LINE
  • 25
    32-8M0108355 LINE, (57.00 Inches Bulk)
    LINE, (57.00 Inches Bulk)
  • 26
    22-19688 FITTING, UPPER CARBURETOR
    FITTING, UPPER CARBURETOR
  • 27
    22-18214 TEE, FUEL LINE
    TEE, FUEL LINE
  • 28
    22-64706001 TEE, CENTER CARBURETOR
    TEE, CENTER CARBURETOR
  • 29
    22-19688 FITTING, LOWER CARBURETOR
    FITTING, LOWER CARBURETOR
  • 30
    22-36221 ELBOW, FUEL LINE TO ADAPTOR
    ELBOW, FUEL LINE TO ADAPTOR
  • 31
    30186 ADAPTOR, CHECK UNIT
    ADAPTOR, CHECK UNIT
  • 32
    30185Q3 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 33
    24-30189 SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 34
    25-16524 O-RING, ADAPTOR STEM
    O-RING, ADAPTOR STEM
  • 35
    30188 WASHER, ADAPTOR
    WASHER, ADAPTOR
  • 36
    10-36154 SCREW, (.250-28 x 1.380), ADAPTOR TO BOTTOM COWL
    SCREW, (.250-28 x 1.380), ADAPTOR TO BOTTOM COWL
  • 37
    11-36069 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
  • 38
    14439A2 PLATE, MOUNTING
    PLATE, MOUNTING
  • 39
    10-20189 SCREW, (.190-32 x .75), PALTE TO CRANKCASE
    SCREW, (.190-32 x .75), PALTE TO CRANKCASE
  • 40
    13-26996 LOCKWASHER, (#10) Stainless Steel, PLATE SCREW
    LOCKWASHER, (#10) Stainless Steel, PLATE SCREW
  • 41
    32-18176 HOSE
    HOSE
  • 42
    32-18175 HOSE
    HOSE
  • -
    32-18176A1 HOSE KIT
    HOSE KIT
