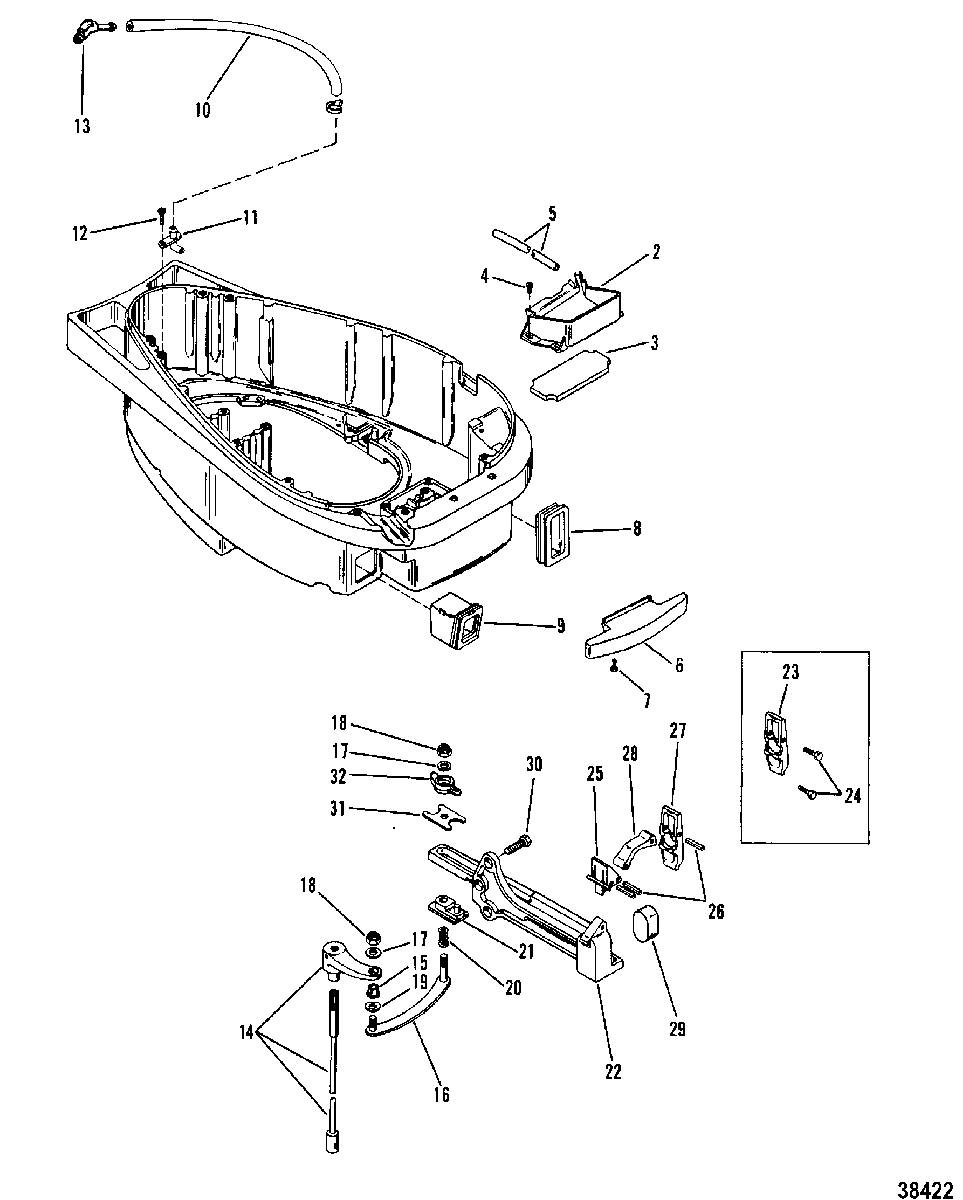

BOTTOM COWL AND SHIFT LINKAGE для Mariner - 115 (6 CYL.) 6436123 & Up

  • №
    Артикул
    Название
  • 1
    2115-8963A1 COWL ASSEMBLY, BOTTOM
    (BLACK)
    COWL ASSEMBLY, BOTTOM
    (BLACK)
  • 1
    2115-8963A2 COWL ASSEMBLY, BOTTOM
    (GRAY)
    COWL ASSEMBLY, BOTTOM
    (GRAY)
  • 2
    52862A2 DRIP TRAY ASSEMBLY, BOTTOM COWL
    DRIP TRAY ASSEMBLY, BOTTOM COWL
  • 3
    37940 SOUND PAD, DRIP TRAY
    SOUND PAD, DRIP TRAY
  • 4
    10-48408 SCREW, (#10-16 x .500), DRIP TRAY TO BOTTOM COWL
    SCREW, (#10-16 x .500), DRIP TRAY TO BOTTOM COWL
  • 5
    32-8M0108355 HOSE, DRIP TRAY TO BOTTOM COWL (8")
    HOSE, DRIP TRAY TO BOTTOM COWL (8")
  • 6
    76369 SPACER, BOTTOM COWL
    SPACER, BOTTOM COWL
  • 7
    10-35519 SCREW, (#10-16 x .500), SPACER TO BOTTOM COWL
    SCREW, (#10-16 x .500), SPACER TO BOTTOM COWL
  • 8
    39616 BOOT, CONTROL CABLES - BOTTOM COWL
    BOOT, CONTROL CABLES - BOTTOM COWL
  • 9
    37637 BOOT, FUEL CONNECTOR - BOTTOM COWL
    BOOT, FUEL CONNECTOR - BOTTOM COWL
  • 10
    32-8M0108355 LINE, (57.00 Inches Bulk), TELL TALE (21-1/2")
    LINE, (57.00 Inches Bulk), TELL TALE (21-1/2")
  • 11
    52889 NOZZLE, TELL TALE HOSE TO BOTTOM COWL
    NOZZLE, TELL TALE HOSE TO BOTTOM COWL
  • 12
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 13
    22-782792 ELBOW, TELL TALE HOSE TO CYLINDER BLOCK
    ELBOW, TELL TALE HOSE TO CYLINDER BLOCK
  • 14
    60304A54 SHIFT SHAFT ASSEMBLY, UPPER
    SHIFT SHAFT ASSEMBLY, UPPER
  • 15
    23-26856 BUSHING, SHIFT SHAFT
    BUSHING, SHIFT SHAFT
  • 16
    73402 SHIFT LINK
    SHIFT LINK
  • 17
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel, LINK ROD
    WASHER, (.2656 x .625 x .0625) Stainless Steel, LINK ROD
  • 18
    11-36069 NUT, LINK ROD
    NUT, LINK ROD
  • 19
    13-29720 WAVE WASHER, LINK ROD
    WAVE WASHER, LINK ROD
  • 20
    24-20099 SPRING, LINK ROD TO GUIDE BLOCK
    SPRING, LINK ROD TO GUIDE BLOCK
  • 21
    37896 GUIDE BLOCK, LINK ROD
    GUIDE BLOCK, LINK ROD
  • 22
    52732A6 BRACKET, ANCHOR - CONTROL CABLES
    BRACKET, ANCHOR - CONTROL CABLES
  • 23
    98889 LATCH
    (DESIGN II)
    LATCH
    (DESIGN II)
  • 24
    10-42975 DRIVE SCREW
    (DESIGN II)
    DRIVE SCREW
    (DESIGN II)
  • 25
    87609A1 LEVER, NYLON - SHIFT CABLE LOCKING
    (DESIGN I)
    LEVER, NYLON - SHIFT CABLE LOCKING
    (DESIGN I)
  • 26
    17-47175 PIN
    (DESIGN I)
    PIN
    (DESIGN I)
  • 27
    90211 COVER, NYLON - SHIFT CABLE
    (DESIGN I)
    COVER, NYLON - SHIFT CABLE
    (DESIGN I)
  • 28
    87609A1 LINK, LOCKING LEVER TO COVER
    (DESIGN I)
    LINK, LOCKING LEVER TO COVER
    (DESIGN I)
  • 29
    39519 CUP, BARREL RETAINER - ANCHOR
    CUP, BARREL RETAINER - ANCHOR
  • 30
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 31
    52100 WEAR PLATE, LINK ROD
    WEAR PLATE, LINK ROD
  • 32
    8M0036768 LATCH
    LATCH
