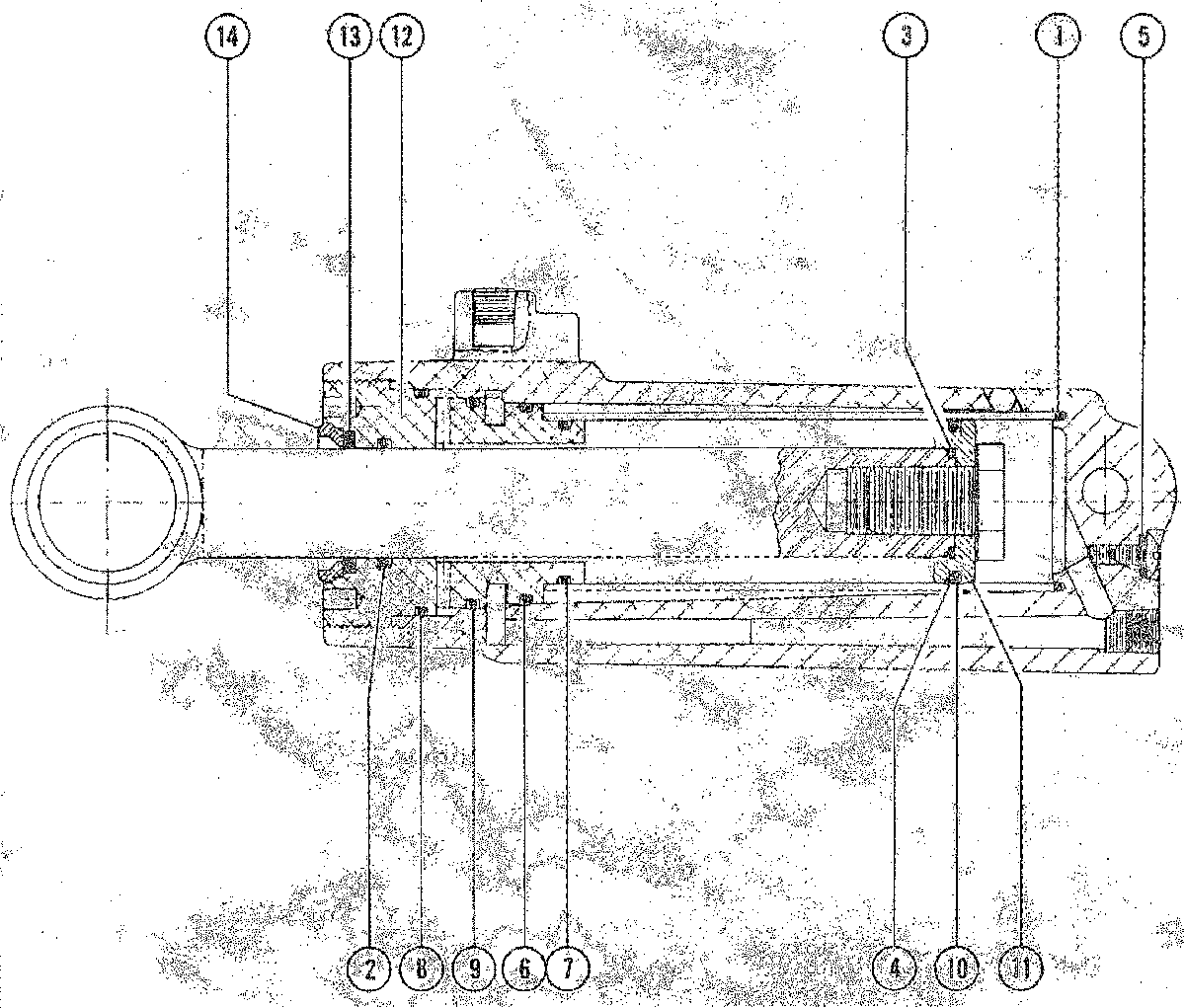

POWER TRIM CYLINDER REPAIR KITS для Mariner - 115 (6 CYL.) 5430527 THRU 5738890
-
№АртикулНазвание
-
-64507A1 REPAIR KITREPAIR KIT
-
1N.S.S. "O"RING (1 1/2" X 1 5/8" X 1/16")"O"RING (1 1/2" X 1 5/8" X 1/16")
-
2N.S.S. "O"RING (3/4" X 15/16" X 1/8")"O"RING (3/4" X 15/16" X 1/8")
-
3N.S.S. "O"RING (5/8" X 3/4" X 1/16")"O"RING (5/8" X 3/4" X 1/16")
-
4N.S.S. "O"RING (1 1/4" X 1 7/16" X 1/16")"O"RING (1 1/4" X 1 7/16" X 1/16")
-
5N.S.S. "O"RING (7/32" X 11/32" X 1/16")"O"RING (7/32" X 11/32" X 1/16")
-
6N.S.S. "O"RING (1 5/8" X 1 13/16" X 1/8")"O"RING (1 5/8" X 1 13/16" X 1/8")
-
7N.S.S. "O"RING (1 5/16" X 1 1/2" X 1/8")"O"RING (1 5/16" X 1 1/2" X 1/8")
-
8N.S.S. "O"RING (1 7/8" X 2" X 1/8")"O"RING (1 7/8" X 2" X 1/8")
-
9N.S.S. "O"RING (1 3/4" X 1 15/16" X 1/8")"O"RING (1 3/4" X 1 15/16" X 1/8")
-
10N.S.S. SEAL, SLIPPER - PISTONSEAL, SLIPPER - PISTON
-
11N.S.S. PISTON, ROD - HEAVY DUTYPISTON, ROD - HEAVY DUTY
-
1264505A1 RETAINER ASSEMBLY, PISTONRETAINER ASSEMBLY, PISTON
-
13N.S.S. ROD, SCRAPERROD, SCRAPER
-
14N.S.S. RETAINER, SCRAPERRETAINER, SCRAPER
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP BRACKET AND REVERSE LOCK
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- END CAP, MANIFOLD AND EXHAUST COVERS
- EXHAUST EXTENSION PLATE
- FLYWHEEL, STARTER MOTOR AND STATOR
- FUEL PUMP AND FUEL LINE ASSEMBLY
- FUEL TANK ASSEMBLY (6 GALLON)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- HYDRAULIC PUMP AND CONTROL VALVE
- HYDRAULIC PUMP ASSEMBLY
- MISCELLANEOUS PARTS/ACCESSORIES
- • POWER TRIM CYLINDER REPAIR KITS
- REMOTE CONTROL ASSEMBLY (ELECTRIC)
- REMOTE CONTROL ASSEMBLY (ELECTRIC) (USE WITH MARINER 90)
- STARTER MOTOR ASSEMBLY, COMPLETE
- SWIVEL BRACKET ASSEMBLY
- THROTTLE LEVER AND LINK RODS
- TOP COWL AND SUPPORT BRACKETS
- TRIM CYLINDERS AND HYDRAULIC HOSES
- WIRING HARNESS, SWITCH BOX AND IGNITION COIL
