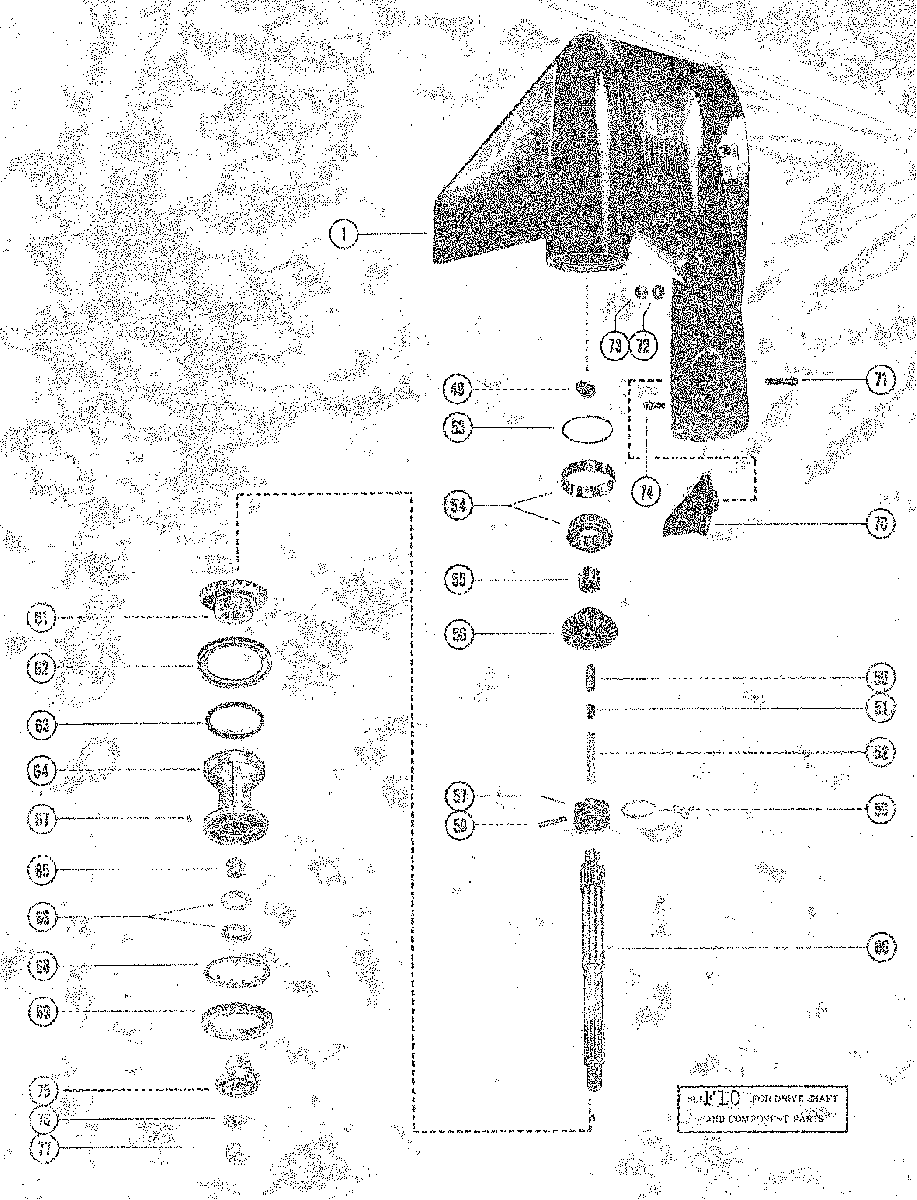

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mariner - 115 (6 CYL.) 5430527 THRU 5738890

  • №
    Артикул
    Название
  • -
    1655-7333T24 GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    SEE NOTE BELOW
    GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    SEE NOTE BELOW
  • -
    1655-7333A26 GEAR HOUSING ASS'Y, COMP. (EXTRA LONG SHAFT)
    SEE NOTE BELOW
    GEAR HOUSING ASS'Y, COMP. (EXTRA LONG SHAFT)
    SEE NOTE BELOW
  • 1
    1655-7333T23 GEAR HOUSING ASS'Y
    GEAR HOUSING ASS'Y
  • 49
    760394 CAM, SHIFT
    CAM, SHIFT
  • 50
    30625 FOLLOWER, CAM
    FOLLOWER, CAM
  • 51
    30624 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 52
    24-30622 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 53
    15-30923A1 SHIM, BEARING OUTER RACE TO HOUSING (.002-3-5-10)
    SHIM, BEARING OUTER RACE TO HOUSING (.002-3-5-10)
  • 54
    31-30894A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 55
    31-30895T BEARING, ROLLER - FORWARD GEAR
    BEARING, ROLLER - FORWARD GEAR
  • 56
    43-68447T1 FORWARD GEAR
    FORWARD GEAR
  • 57
    52-822539T RATCHET, SLIDING GEAR
    RATCHET, SLIDING GEAR
  • 58
    17-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 59
    24-30893 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 60
    44-93003 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 61
    43-76250T REVERSE GEAR
    REVERSE GEAR
  • 62
    12-76358 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
    WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
  • 63
    25-29976 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 64
    41529T2 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 65
    31-30956T BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 66
    26-76868 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 67
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 68
    14-52700 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 69
    52699 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 70
    97-31640Q4 TRIM TAB, GEAR HOUSING
    TRIM TAB, GEAR HOUSING
  • 71
    10-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
    SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
  • 72
    12-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 73
    11-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 74
    10-65210 SCREW, GEAR HOUSING (LONG SHAFT)
    SCREW, GEAR HOUSING (LONG SHAFT)
  • 74
    10-74727 SCREW, GEAR HOUSING (EXTRA LONG SHAFT)
    SCREW, GEAR HOUSING (EXTRA LONG SHAFT)
  • 75
    13191Q01 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 76
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 77
    11-52707Q1 NUT, PROPELLER
    NUT, PROPELLER
  • 1
    32-877682Q8 FUEL LINE ASSEMBLY (8')
    FUEL LINE ASSEMBLY (8')
  • 1
    32-877682Q12 FUEL LILNE ASSEMBLY (12')
    FUEL LILNE ASSEMBLY (12')
  • 2
    89396Q01 PRIMER BLUB ASSEMBLY
    PRIMER BLUB ASSEMBLY
  • 3
    21-13883A3 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 4
    21-13883A4 FITTING, FUEL LINE TO PRIMER BULB
    FITTING, FUEL LINE TO PRIMER BULB
  • 5
    54-27764 CLAMP, PRIMER BULB TO CHECK VALVE (LARGE)
    CLAMP, PRIMER BULB TO CHECK VALVE (LARGE)
  • 6
    54-55206 CLAMP, FUEL LINE TO CHECK VALVE (SMALL)
    CLAMP, FUEL LINE TO CHECK VALVE (SMALL)
  • 7
    22-63187 CONNECTOR, FUEL LINE (FUEL TANK END)
    CONNECTOR, FUEL LINE (FUEL TANK END)
  • 8
    22-63186 CONNECTOR, FUEL LINE (ENGINE END)
    CONNECTOR, FUEL LINE (ENGINE END)
  • 9
    54-55206 CLAMP, FUEL LINE TO CONNECTOR
    CLAMP, FUEL LINE TO CONNECTOR
  • 10
    30185Q3 BAYONET BODY ASSEMBLY (FUEL TANK END)
    - THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    BAYONET BODY ASSEMBLY (FUEL TANK END)
    - THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 11
    30185Q3 STEM, BAYONET BODY
    - THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    STEM, BAYONET BODY
    - THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 12
    25-16524 "O" RING, BAYONET BODY STEM
    - THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    "O" RING, BAYONET BODY STEM
    - THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 13
    24-30189 SPRING, BAYONET BODY STEM
    - THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    SPRING, BAYONET BODY STEM
    - THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 14
    30188 WASHER, CUPPED - BAYONET BODY SPRING
    - THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    WASHER, CUPPED - BAYONET BODY SPRING
    - THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 15
    22831Q3 CHECK UNIT ASSEMBLY (ENGINE END)
    - THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    CHECK UNIT ASSEMBLY (ENGINE END)
    - THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
