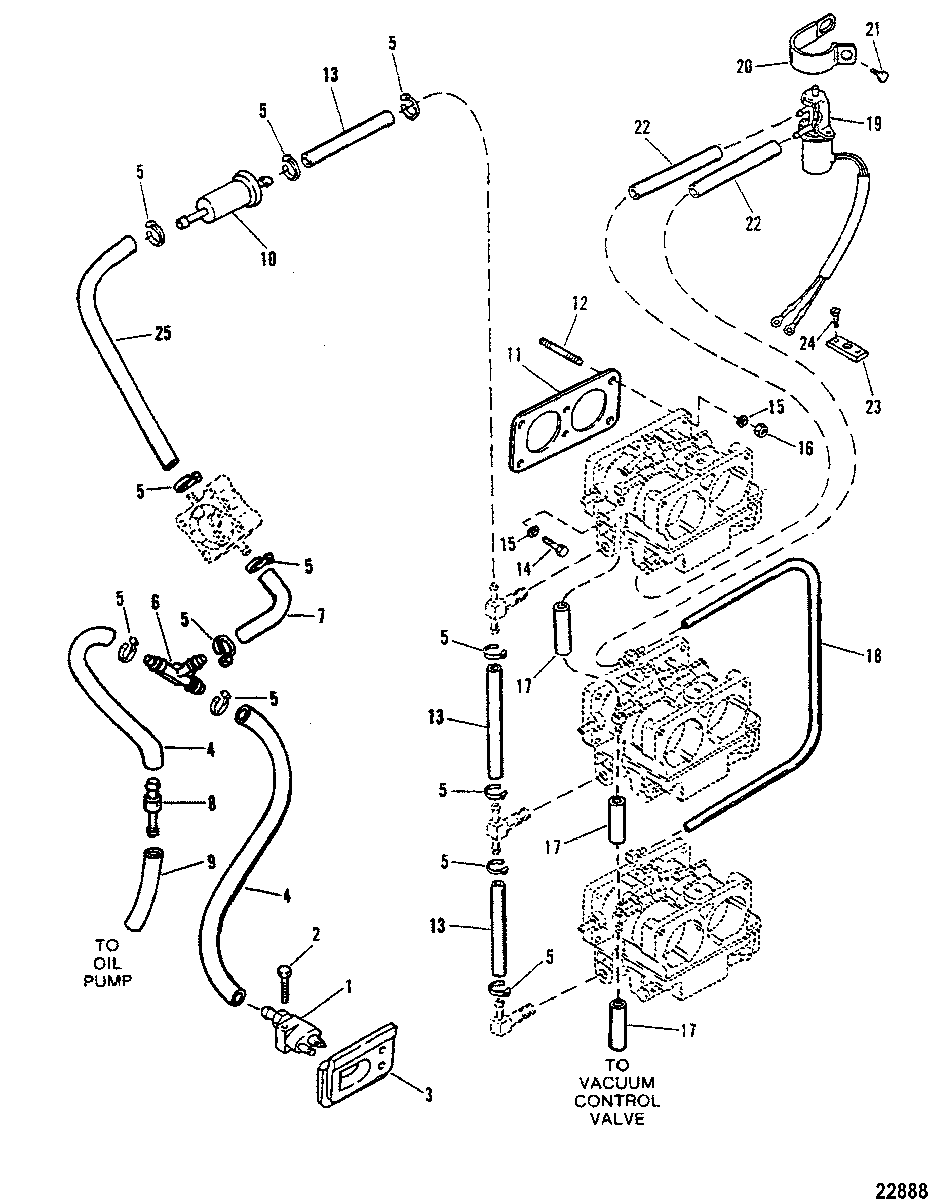

FUEL LINES(Use With WMH-12A/B thru WMH-28 Carburtors) для Mariner - 105 JET 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • 1
    22-816856Q3 CONNECTOR ASSEMBLY, Fuel - Plastic
    CONNECTOR ASSEMBLY, Fuel - Plastic
  • 2
    10-69067 SCREW, (.250-20 x 1.375)
    SCREW, (.250-20 x 1.375)
  • 3
    812782 SEAL
    SEAL
  • 4
    32-8M0108349 HOSE
    HOSE
  • 5
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 6
    22-818993 CONNECTOR, Tee
    CONNECTOR, Tee
  • 7
    32-18175 HOSE
    HOSE
  • 8
    22-8189941 CHECK VALVE
    CHECK VALVE
  • 9
    32-82381335 TUBING, (10.00 Inches Bulk)
    TUBING, (10.00 Inches Bulk)
  • 10
    35-816296Q2 FILTER, Fuel
    FILTER, Fuel
  • 11
    27-677511 GASKET
    GASKET
  • 12
    16-270372 STUD, (.250-28 x 1.125)
    STUD, (.250-28 x 1.125)
  • 13
    32-8M0108355 HOSE, (57.00 Inches Bulk)
    HOSE, (57.00 Inches Bulk)
  • 14
    10-55715 SCREW, (.250-20 x .880)
    SCREW, (.250-20 x .880)
  • 15
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 16
    11-29598 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 17
    32-9912878 HOSE, (.187) (26.00 Inches Bulk)
    HOSE, (.187) (26.00 Inches Bulk)
  • 18
    32-892024122 TUBING, (20.00 Feet Bulk)
    TUBING, (20.00 Feet Bulk)
  • 19
    42859A2 VALVE ASSEMBLY, Enrichner
    VALVE ASSEMBLY, Enrichner
  • 20
    54-633001 CLAMP
    CLAMP
  • 21
    10-73286 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 22
    32-9912688 TUBING, (36.00 Inches Bulk)
    TUBING, (36.00 Inches Bulk)
  • 23
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 24
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 24
    10-69079 SCREW, (#10-16 x .440)
    SCREW, (#10-16 x .440)
  • 25
    32-830762 HOSE
    HOSE
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
