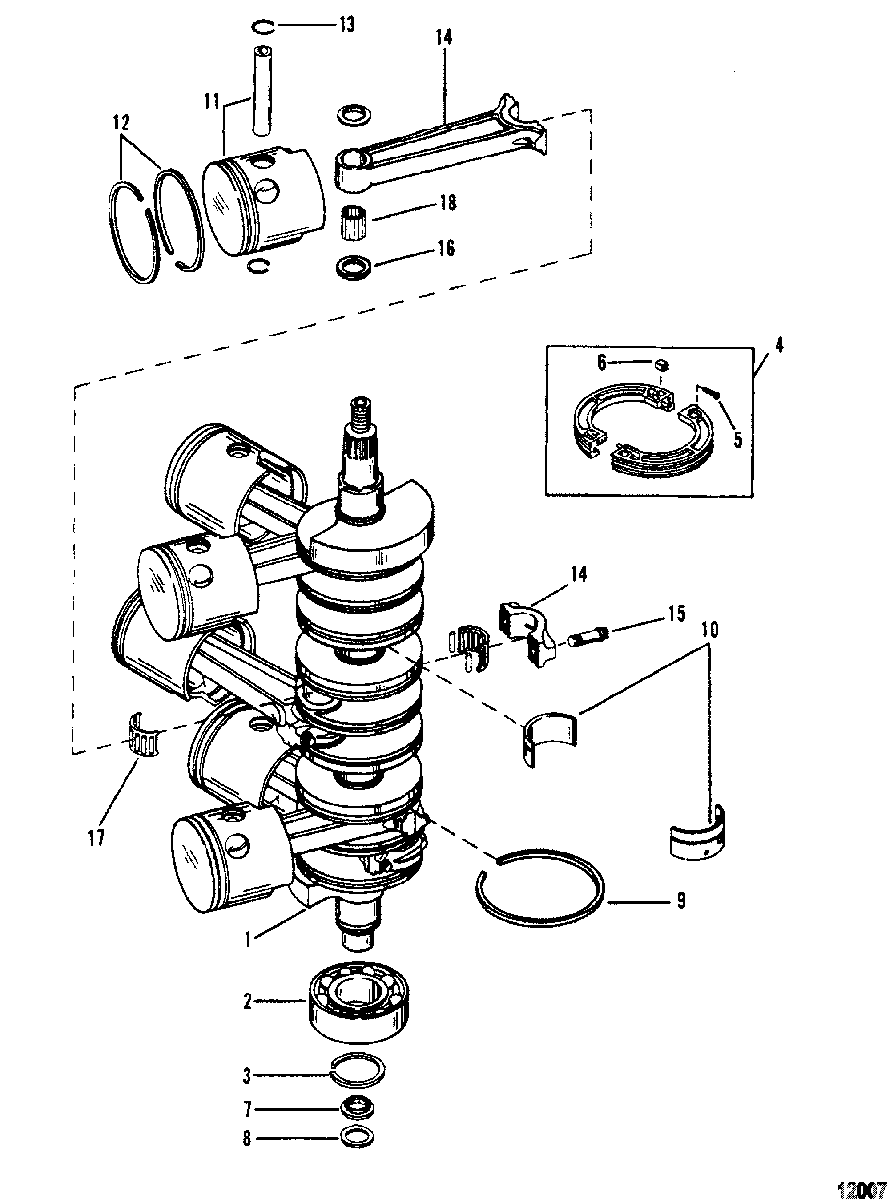

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mariner - 105 JET 0D082000 THRU 0G303045
-
№АртикулНазвание
-
1455-9536T4 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-67923T BEARING, Ball (LOWER)BEARING, Ball (LOWER)
-
353-67446 RINGRING
-
443-14513A09 GEAR SEGMENT KIT, DriveGEAR SEGMENT KIT, Drive
-
510-813073 SCREW, (#6-32 x .620) Socket HeadSCREW, (#6-32 x .620) Socket Head
-
611-813134 NUT, (#6-32) SpecialNUT, (#6-32) Special
-
754196A6 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
865800 PACKINGPACKING
-
939-67377T RING, Sealing, CRANKSHAFTRING, Sealing, CRANKSHAFT
-
1031-16756A6 BEARING KITBEARING KIT
-
11765-7441T32 PISTON (STARBOARD-STANDARD)
135/150PISTON (STARBOARD-STANDARD)
135/150 -
11765-7443A11 PISTON (STARBOARD-.015 O.S.)
135/150PISTON (STARBOARD-.015 O.S.)
135/150 -
11765-7445T11 PISTON (STARBOARD-.030 OS.)
135/150PISTON (STARBOARD-.030 OS.)
135/150 -
11765-7442T32 PISTON (PORT-STANDARD)
135/150PISTON (PORT-STANDARD)
135/150 -
11765-7444A11 PISTON (PORT-.015 O.S.)
135/150PISTON (PORT-.015 O.S.)
135/150 -
11765-7446A11 PISTON (PORT-.030 O.S.)
135/150PISTON (PORT-.030 O.S.)
135/150 -
11785-9738T9 PISTON ASSEMBLY (STARBOARD-STANDARD)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052594 & BelowPISTON ASSEMBLY (STARBOARD-STANDARD)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052594 & Below -
11785-9738T10 PISTON ASSEMBLY (STARBOARD-.015 O.S.)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052594 & BelowPISTON ASSEMBLY (STARBOARD-.015 O.S.)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052594 & Below -
11785-9737T9 PISTON ASSEMBLY (PORT-STANDARD)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052594 & BelowPISTON ASSEMBLY (PORT-STANDARD)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052594 & Below -
11785-9737A10 PISTON ASSEMBLY (PORT-.015 O.S.)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052594 & BelowPISTON ASSEMBLY (PORT-.015 O.S.)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052594 & Below -
11785-9738T9 PISTON ASSEMBLY, Standard (STARBOARD-STANDARD)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052595 & UpPISTON ASSEMBLY, Standard (STARBOARD-STANDARD)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052595 & Up -
11785-9738T10 PISTON ASSEMBLY, .015 Oversize (STARBOARD-.015 O.S.)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052595 & UpPISTON ASSEMBLY, .015 Oversize (STARBOARD-.015 O.S.)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052595 & Up -
11785-9737T9 PISTON ASSEMBLY, Standard (PORT-STANDARD)
SN# 0G052595 & UpPISTON ASSEMBLY, Standard (PORT-STANDARD)
SN# 0G052595 & Up -
11785-9737A10 PISTON ASSEMBLY, .015 Oversize (PORT-.015 O.S.)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052595 & UpPISTON ASSEMBLY, .015 Oversize (PORT-.015 O.S.)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052595 & Up -
1239-93481A12 RING SET, Piston - Standard (STANDARD)
135/150RING SET, Piston - Standard (STANDARD)
135/150 -
1239-78918A4 RING SET, Piston - .015 Oversize (.015 O.S.)
135/150RING SET, Piston - .015 Oversize (.015 O.S.)
135/150 -
1239-85636A4 RING SET, Piston - .030 Oversize (.030 O.S.)
135/150RING SET, Piston - .030 Oversize (.030 O.S.)
135/150 -
1239-815515A12 RING SET, Piston (STD.) (1-1/2 MM)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052594 & BelowRING SET, Piston (STD.) (1-1/2 MM)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052594 & Below -
1239-815268A4 RING SET, Piston (.015 O.S.) (1-1/2 MM)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052594 & BelowRING SET, Piston (.015 O.S.) (1-1/2 MM)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052594 & Below -
1239-822321A12 RING KIT, Piston - Standard (STD.) (2MM)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052595 & UpRING KIT, Piston - Standard (STD.) (2MM)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052595 & Up -
1239-822321A1 RING KIT, Piston - .015 Oversize (.015 O.S.) (2MM)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052595 & UpRING KIT, Piston - .015 Oversize (.015 O.S.) (2MM)
XR6/MAGNUM III/175/200/TRACKER SN# 0G052595 & Up -
1353-857196 RING, LockRING, Lock
-
14644-818141A13 CONNECTING ROD KITCONNECTING ROD KIT
-
1510-763491 SCREW, (.312-24 x .875)SCREW, (.312-24 x .875)
-
1612-8M0012298 WASHERWASHER
-
1731-8M0045428 BEARING KITBEARING KIT
-
1829-822553 BEARING, NeedleBEARING, Needle
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-812815R97 POWERHEAD ASSEMBLY
(135/150)POWERHEAD ASSEMBLY
(135/150) -
-812817R97 POWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284787 & BelowPOWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284787 & Below -
-823434R97 POWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284788 & UpPOWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284788 & Up -
-823434R97 POWERHEAD ASSEMBLY
(Tracker 150)POWERHEAD ASSEMBLY
(Tracker 150) -
-812817R97 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R97 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
