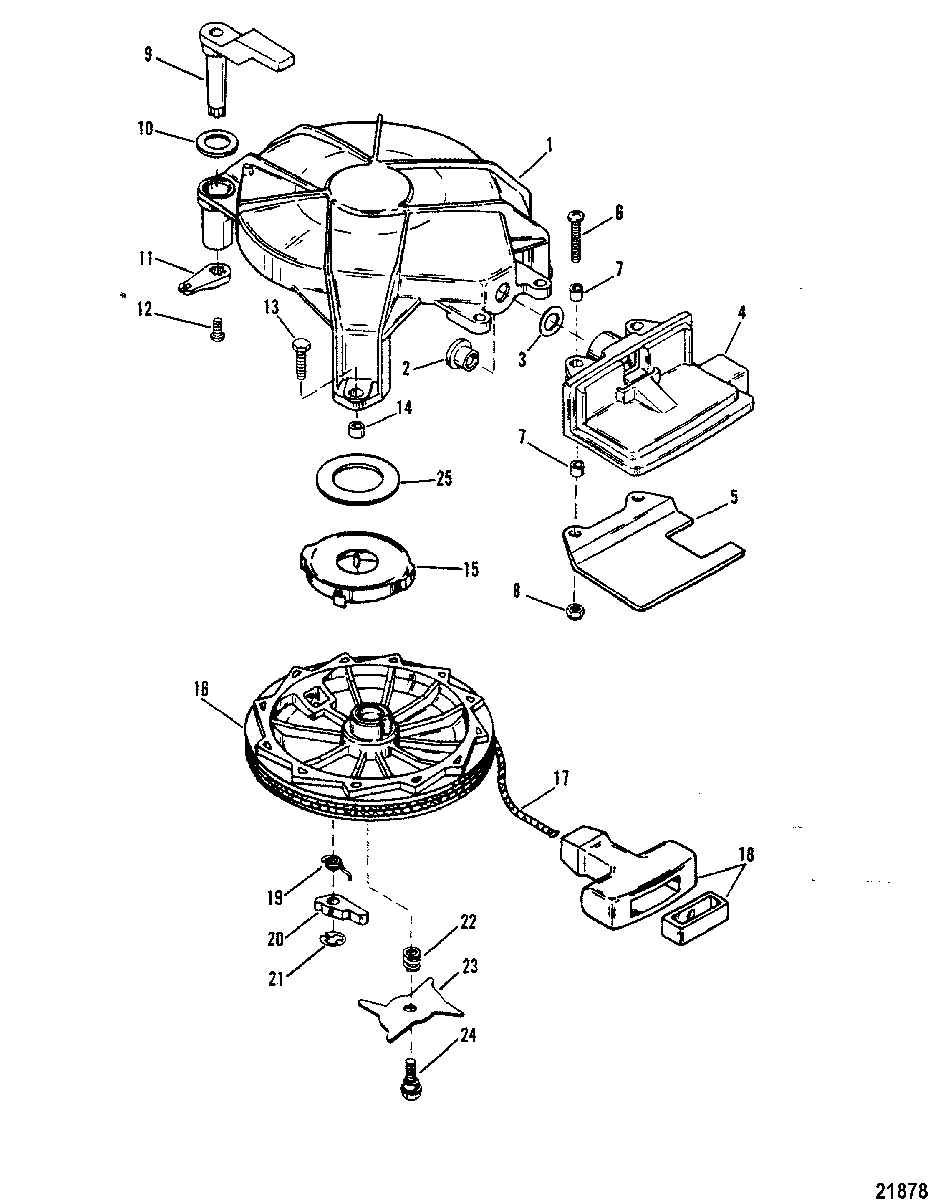

Manual Starter(Design II) для Mariner - 10 MARATHON 9596000 THRU 9792199
-
№АртикулНазвание
-
18M0070659 HOUSING, StarterHOUSING, Starter
-
242690 BUSHINGBUSHING
-
353-818853 RING, RetainingRING, Retaining
-
419018T RESTREST
-
512674 SUPPORTSUPPORT
-
610-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
723-309772 SPACERSPACER
-
811-401385 NUT, (M5)NUT, (M5)
-
942171T LEVER, LOCK (UPPER)LEVER, LOCK (UPPER)
-
1012-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
1142173T LEVER, LOCK (LOWER)LEVER, LOCK (LOWER)
-
1210-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1310-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1423-43787 SPACER, STARTER HOUSING SCREWSPACER, STARTER HOUSING SCREW
-
1524-86857T01 SPRINGSPRING
-
1642034T04 PULLEY, StarterPULLEY, Starter
-
1750-12066Q10 ROPEROPE
-
1885174A1 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
1924-86851T02 SPRINGSPRING
-
20868501 CAMCAM
-
2153-86849T01 RING, RetainingRING, Retaining
-
2224-868523 SPRINGSPRING
-
2386853T01 CAMCAM
-
2410-826253 SCREWSCREW
-
25833161T PADPAD
