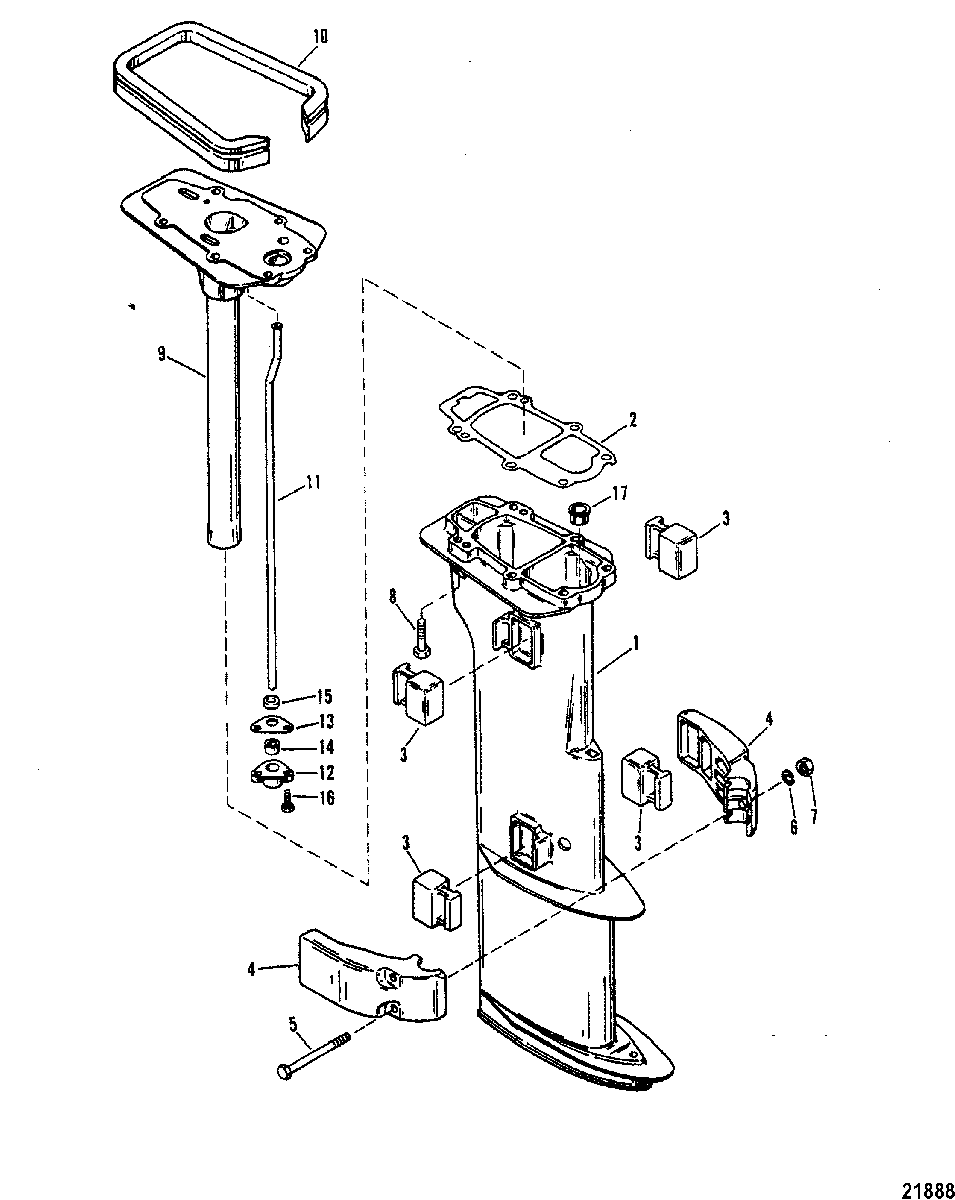

Driveshaft Housing для Mariner - 10 MARATHON 9596000 THRU 9792199

  • №
    Артикул
    Название
  • 1
    1596-822154A1 HOUSING ASSEMBLY (SHORT) BLACK
    HOUSING ASSEMBLY (SHORT) BLACK
  • 1
    1597-822155A1 HOUSING ASSEMBLY (LONG) BLACK
    HOUSING ASSEMBLY (LONG) BLACK
  • 1
    1596-822154A2 HOUSING ASSEMBLY (SHORT) GRAY
    HOUSING ASSEMBLY (SHORT) GRAY
  • 1
    1597-822155A2 HOUSING ASSEMBLY (LONG) GRAY
    HOUSING ASSEMBLY (LONG) GRAY
  • 2
    27-195992 GASKET, Driveshaft Housing
    GASKET, Driveshaft Housing
  • 3
    8M0039074 MOUNT
    MOUNT
  • 4
    42374F6 COVER, Mount
    (Black)
    COVER, Mount
    (Black)
  • 4
    42374F6 COVER, Mount
    (Gray)
    COVER, Mount
    (Gray)
  • 5
    10-4009238 SCREW, (M6 x 80), MOUNT COVER
    SCREW, (M6 x 80), MOUNT COVER
  • 6
    13-400256 LOCKWASHER, (M6), COVER SCREW
    LOCKWASHER, (M6), COVER SCREW
  • 7
    11-400212 NUT, (M6) Stainless Steel, COVER SCREW
    NUT, (M6) Stainless Steel, COVER SCREW
  • 8
    10-40011131 SCREW, (M6 x 35) Stainless Steel, DRIVE SHAFT HOUSING TO PLATE
    SCREW, (M6 x 35) Stainless Steel, DRIVE SHAFT HOUSING TO PLATE
  • 9
    413448 ADAPTOR PLATE (NO TUBE)
    (XR10/MAGNUM 10)
    ADAPTOR PLATE (NO TUBE)
    (XR10/MAGNUM 10)
  • 9
    41344A3 ADAPTOR PLATE ASSEMBLY (1-1/8"I.D.TUBE)
    (SEA PRO 10/MARATHON 10)
    ADAPTOR PLATE ASSEMBLY (1-1/8"I.D.TUBE)
    (SEA PRO 10/MARATHON 10)
  • 10
    26-11287001 SEAL, Adapter Plate
    SEAL, Adapter Plate
  • 11
    32-42123 TUBE, Water (SHORT)
    TUBE, Water (SHORT)
  • 11
    32-42122 TUBE, Water (LONG)
    TUBE, Water (LONG)
  • 12
    42371 HOLDER, WATER TUBE
    HOLDER, WATER TUBE
  • 13
    27-192012 GASKET
    GASKET
  • 14
    26-42380001 SEAL
    SEAL
  • 15
    23-42465 SPACER, WATER TUBE
    SPACER, WATER TUBE
  • 16
    10-400035 SCREW, (M5 x 16), HOUSING TO ADAPTOR PLATE
    SCREW, (M5 x 16), HOUSING TO ADAPTOR PLATE
  • 17
    445551 BLOCK, Bearing (LONG)
    BLOCK, Bearing (LONG)
  • -
    27-42364A92 GASKET SET, Engine
    GASKET SET, Engine
