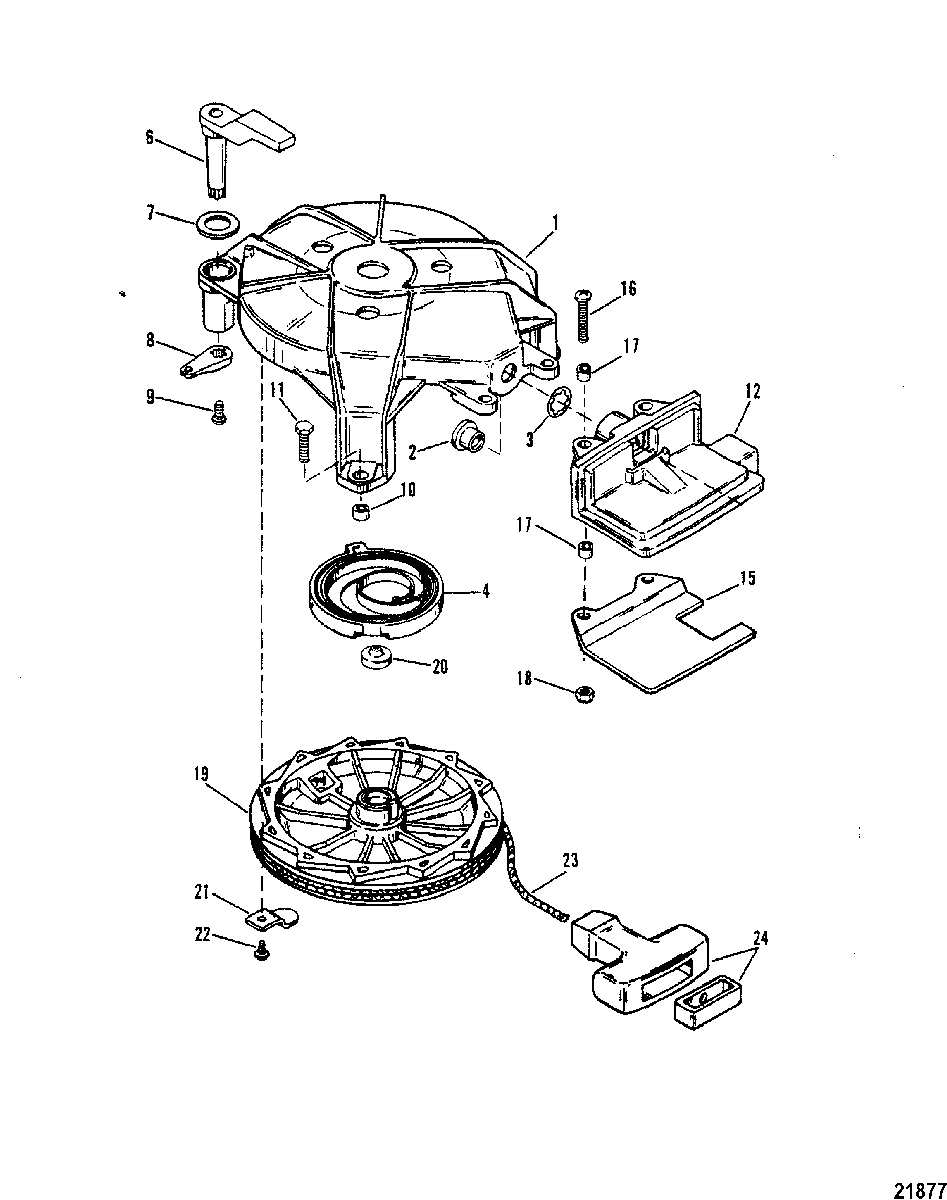

Manual Starter(Design I) для Mariner - 10 MARATHON 0D038000 THRU 0D279999
-
№АртикулНазвание
-
142207A1 HOUSING ASSEMBLY, STARTERHOUSING ASSEMBLY, STARTER
-
242690 BUSHING, STARTER ROPEBUSHING, STARTER ROPE
-
353-818853 RING, RetainingRING, Retaining
-
442194A2 SPRING ASSEMBLY, Recoil StarterSPRING ASSEMBLY, Recoil Starter
-
642171T LEVER, LOCK (UPPER)LEVER, LOCK (UPPER)
-
712-56681 WASHER, (.203 x .500 x .032), UPPER LOCK LEVERWASHER, (.203 x .500 x .032), UPPER LOCK LEVER
-
842173T LEVER, LOCK (LOWER)LEVER, LOCK (LOWER)
-
910-48408 SCREW, (#10-16 x .500), LOWER LOCK LEVERSCREW, (#10-16 x .500), LOWER LOCK LEVER
-
1023-43787 SPACER, STARTER HOUSING SCREWSPACER, STARTER HOUSING SCREW
-
1110-8M4503518 SCREW, (M6 x 20) Stainless Steel, STARTER HOUSING ATTACHINGSCREW, (M6 x 20) Stainless Steel, STARTER HOUSING ATTACHING
-
1219018T RESTREST
-
1512674 SUPPORTSUPPORT
-
1610-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
1723-309772 SPACER, REST SCREWSPACER, REST SCREW
-
1811-401385 NUT, (M5), REST SCREWNUT, (M5), REST SCREW
-
1942034A2 SHEAVE, STARTERSHEAVE, STARTER
-
2019-427071 CAP, STARTER SHEAVECAP, STARTER SHEAVE
-
2019-817362 CAP, STARTER SHEAVE (CAP PLUG)CAP, STARTER SHEAVE (CAP PLUG)
-
2142209 TAB, STARTER SHEAVETAB, STARTER SHEAVE
-
2210-48408 SCREW, (#10-16 x .500), TABSCREW, (#10-16 x .500), TAB
-
2350-12066Q10 ROPE, STARTERROPE, STARTER
-
2485174A1 HANDLE ASSEMBLY, STARTER ROPEHANDLE ASSEMBLY, STARTER ROPE
